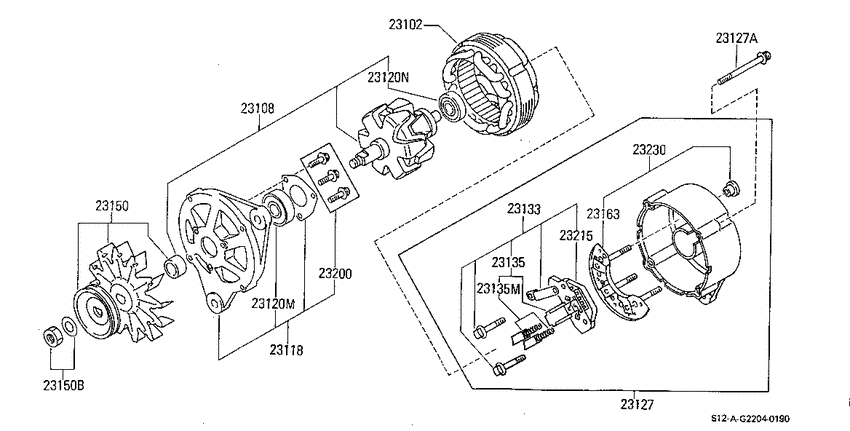

Alternator (1986-02-01 ~ ; 日立; CA18S) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23102
|
23102
23102-58S00 Stator Assy8602--01 ~ ; CA18S; ﾋﾀﾁ |
23102-58S00 |
US $447.46 |
||
|
23102
|
23102
23102-D0200 Stator Assy8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23102-D0200 |
US $424.80 |
||
|
23102
|
23102
23102-U0510 Stator Assy8308--01 ~ 8411--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23102-U0510 |
US $273.60 |
||
|
23108
|
23108
23108-02E00 ROTOR ASSY8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23108-02E00 |
US $591.89 |
||
|
23108
|
23108
23108-08E15 ROTOR ASSY8308--01 ~ 8602--01; CA18S; ﾐﾂﾋ"ｼ |
23108-08E15 |
US $502.68 |
||
|
23108
|
23108
23108-51S00 Rotor Assy8602--01 ~ ; CA18S; ﾋﾀﾁ |
23108-51S00 |
US $478.61 |
||
|
23108
|
23108
23108-51S10 Rotor Assy8602--01 ~ 8609--01; CA18S+CA18ET+CA18DET; ﾐﾂﾋﾞｼ |
23108-51S10 |
US $287.45 |
||
|
23108
|
23108
23108-58S11 Rotor Assy8609--01 ~ ; CA18S+CA18ET+CA18DET; ﾐﾂﾋﾞｼ |
23108-58S11 |
US $403.56 |
||
|
23108
|
23108
23108-U0510 Rotor Assy8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23108-U0510 |
US $325.68 |
||
|
23118
|
23118
23118-51S00 Cover Assy-Front8602--01 ~ ; CA18S |
23118-51S00 |
US $133.20 |
||
|
23118
|
23118
23118-51S10 Cover Assy-Front8602--01 ~ ; CA18S+CA18ET; ﾐﾂﾋﾞｼ |
23118-51S10 |
US $134.50 |
||
|
23118
|
23118
23118-D0200 Cover Assy-Front8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23118-D0200 |
US $146.88 |
||
|
23118
|
23118
23118-D0210
Cover Assy-Front
8308--01 ~ 8602--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23118-D0210 |
— | ||
|
23120M
|
23120M
23120-20P11 Bearing-Ball8602--01 ~ ; CA18S+CA18ET; ﾐﾂﾋﾞｼ |
23120-20P11 |
US $36.18 |
||
|
23120M
|
23120M
23120-58S00
Bearing-Ball
8602--01 ~ ; CA18S; ﾋﾀﾁ |
23120-58S00 |
— | ||
|
23120M
|
23120M
23120-P4500 Bearing-Ball8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23120-P4500 |
US $23.18 |
||
|
23120M
|
23120M
23120-W7110 Bearing-Ball8308--01 ~ 8411--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23120-W7110 |
US $18.72 |
||
|
23120N
|
23120N
23120-14801 Bearing-Ball8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23120-14801 |
US $17.57 |
||
|
23120N
|
23120N
23120-20P10 Bearing-Ball8609--01 ~ ; CA18S+CA18ET+CA18DET; ﾐﾂﾋﾞｼ |
23120-20P10 |
US $31.68 |
||
|
23120N
|
23120N
23120-58S01 Bearing-Ball8602--01 ~ ; CA18S; ﾋﾀﾁ |
23120-58S01 |
from US $22.75 |
||
|
23120N
|
23120N
23120-P4510 Bearing-Ball8308--01 ~ 8411--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23120-P4510 |
US $11.38 |
||
|
23120N
|
23120N
23120-V5511 Bearing-Ball8602--01 ~ 8609--01; CA18S+CA18ET+CA18DET; ﾐﾂﾋﾞｼ |
23120-V5511 |
US $22.90 |
||
|
23127
|
23127
23127-06S00
Cover Assy-Rear
8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23127-06S00 |
— | ||
|
23127
|
23127
23127-51S00 Cover Assy-Rear8602--01 ~ ; CA18S; ﾋﾀﾁ |
23127-51S00 |
US $739.15 |
||
|
23127
|
23127
23131-13E10 BOLT-THROUGH8602--01 ~ ; CA18S+CA18DET; ﾐﾂﾋﾞｼ |
23131-13E10 |
US $6.34 |
||
|
23127
|
23127
23131-58S00 Bolt-Through8602--01 ~ ; CA18S; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23127
|
23127
23131-U0510 Bolt-Through8308--01 ~ 8411--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23131-U0510 |
US $7.20 |
||
|
23127A
|
23127A
23131-13E10 BOLT-THROUGH8602--01 ~ ; CA18S+CA18DET; ﾐﾂﾋﾞｼ |
23131-13E10 |
US $6.34 |
||
|
23127A
|
23127A
23131-58S00 Bolt-Through8602--01 ~ ; CA18S; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23127A
|
23127A
23131-U0510 Bolt-Through8308--01 ~ 8411--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23131-U0510 |
US $7.20 |
||
|
23133
|
23133
23133-06S00 Holder Assy-Brush8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23133-06S00 |
US $457.37 |
||
|
23133
|
23133
23133-58S01 Holder Assy-Brush8602--01 ~ ; CA18S; ﾋﾀﾁ |
23133-58S01 |
US $276.48 |
||
|
23133
|
23133
23133-D0200 Holder Assy-Brush8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23133-D0200 |
US $419.14 |
||
|
23135
|
23135
23135-06S00 Brush Assy8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23135-06S00 |
US $10.80 |
||
|
23135
|
23135
2313513E10 BRUSH ASSY8602--01 ~ ; CA18S+CA18DET; ﾐﾂﾋﾞｼ |
2313513E10 |
US $10.22 |
||
|
23135
|
23135
23135-Q4601 Brush-E8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23135-Q4601 |
US $30.24 |
||
|
23135
|
23135
23135-W7110 Brush Assy8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23135-W7110 |
US $7.63 |
||
|
23135
|
23135
23142-06S00 Brush-F8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23142-06S00 |
US $7.63 |
||
|
23135M
|
23135M
23135-W7110 Brush Assy8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23135-W7110 |
US $7.63 |
||
|
23135M
|
23135M
23142-06S00 Brush-F8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23142-06S00 |
US $7.63 |
||
|
23150
|
23150
23150-06S00 Pulley Assy8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23150-06S00 |
US $114.62 |
||
|
23150
|
23150
23150-51S00 Pulley Assy8602--01 ~ ; CA18S; ﾋﾀﾁ |
23150-51S00 |
US $49.54 |
||
|
23150
|
23150
23150-U0511 Pulley Assy8308--01 ~ 8411--01; CA18S+CA18E; ﾐﾂﾋﾞｼ |
23150-U0511 |
US $33.12 |
||
|
23150
|
23150
23150-V7311 Pulley Assy8602--01 ~ ; CA18S+CA18DET; ﾐﾂﾋﾞｼ |
23150-V7311 |
US $52.85 |
||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150
|
23150
23153-U0110 Nut Assy-Pulley8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23153-U0110 |
US $1.73 |
||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley8308--01 ~ 8602--01; CA18#; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-U0110 Nut Assy-Pulley8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23153-U0110 |
US $1.73 |
||
|
23163
|
23163
23163-02E00 GUIDE-ALTERNATOR FAN8308--01 ~ 8602--01; CA18S; ﾋﾀﾁ |
23163-02E00 |
US $14.11 |
||
|
23163
|
23163
23163-58S00 Guide-Alternator Fan8602--01 ~ ; CA18S; ﾋﾀﾁ |
23163-58S00 |
US $11.66 |
||
|
23200
|
23200
23200-Q4601 Screw Set8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23200-Q4601 |
US $4.18 |
||
|
23215
|
23215
23215-51S10 Regulator Assy-Ic8602--01 ~ ; CA18S+CA18ET; ﾐﾂﾋﾞｼ |
23215-51S10 |
US $269.28 |
||
|
23215
|
23215
23215-F2500 Regulator Assy-Ic8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ ｻ-ﾋﾞｽ ﾖｳ |
23215-F2500 |
US $228.96 |
||
|
23215
|
23215
23215-Q4602 Regulator Assy-Ic8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23215-Q4602 |
US $321.43 |
||
|
23215
|
23215
23215-W7110 Regulator Assy-Ic8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23215-W7110 |
US $228.96 |
||
|
23230
|
23230
23124-Q4610 Diode Assy8308--01 ~ 8602--01; CA18#; ﾐﾂﾋﾞｼ |
23124-Q4610 |
US $172.80 |
||
|
23230
|
23230
23230-51S00 Diode Assy8602--01 ~ ; CA18S; ﾋﾀﾁ |
23230-51S00 |
US $203.04 |
||
|
23230
|
23230
23230Q4601 Diode Assy8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23230Q4601 |
US $207.36 |
