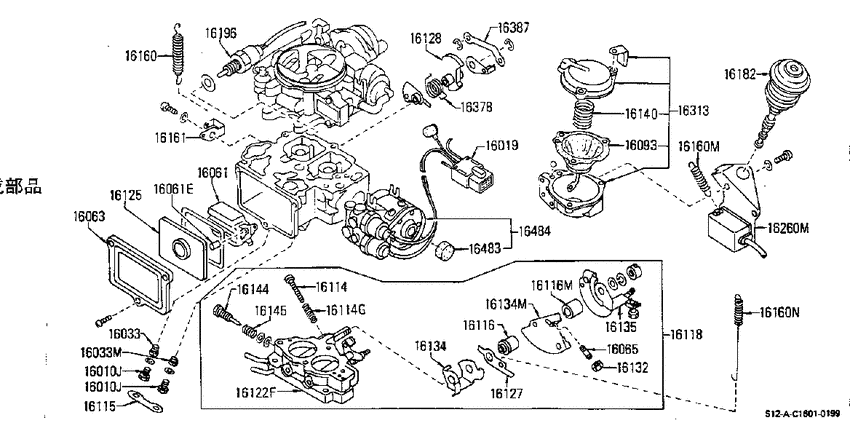

Carburetor (1983-08-01 ~ 1986-02-01; スロットルチャンバー関係構成部品; CA18S) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010J
|
16010J
16272N2810 Plug-Drain8308--01 ~ 8602--01; CA18S |
16272N2810 |
US $4.30 |
||
|
16010J
|
16010J
16272N2810 Plug-Drain8308--01 ~ 8602--01; CA18S |
16272N2810 |
US $4.30 |
||
|
16019
|
16019
16019-V5400 Coupler8308--01 ~ 8602--01; CA18S |
16019-V5400 |
US $12.38 |
||
|
16019
|
16019
24341-79991 Coupler8602--01 ~ ; CA18S |
24341-79991 |
US $14.83 |
||
|
16019
|
16019
24341-79982 Coupler8602--01 ~ ; CA18S |
24341-79982 |
US $13.54 |
||
|
16033
|
16033
16033-U6810 Jet-Main8602--01 ~ ; CA18S; #101 |
16033-U6810 |
US $30.38 |
||
|
16033
|
16033
16033-W6800 Jet-Main8308--01 ~ 8602--01; CA18S.MT; #108 |
16033-W6800 |
US $27.50 |
||
|
16033
|
16033
16033-H7206 Jet-Main8602--01 ~ ; CA18S; #145 |
16033-H7206 |
US $11.52 |
||
|
16033
|
16033
16033-U6705 Jet-Main8308--01 ~ 8602--01; CA18S; #160 |
16033-U6705 |
US $13.97 |
||
|
16033M
|
16033M
16033-H7206 Jet-Main8602--01 ~ ; CA18S; #145 |
16033-H7206 |
US $11.52 |
||
|
16033M
|
16033M
16033-U6705 Jet-Main8308--01 ~ 8602--01; CA18S; #160 |
16033-U6705 |
US $13.97 |
||
|
16061
|
16061
16061-10W00 Float8602--01 ~ ; CA18S |
16061-10W00 |
US $12.05 |
||
|
16061
|
16061
16061-23010 Float8308--01 ~ 8602--01; CA18S |
16061-23010 |
US $9.65 |
||
|
16061
|
16061
16062-U6000 Collar-Float Pin8308--01 ~ ; CA18S |
16062-U6000 |
US $3.46 |
||
|
16061E
|
16061E
16062-U6000 Collar-Float Pin8308--01 ~ ; CA18S |
16062-U6000 |
US $3.46 |
||
|
16063
|
16063
16395-W0400 Cover-Gauge Lever8308--01 ~ ; CA18S |
16395-W0400 |
US $5.18 |
||
|
16065
|
16065
16065-W8800 Screw-Idle Fast8308--01 ~ ; CA18S |
16065-W8800 |
US $8.35 |
||
|
16093
|
16093
16093-A3510 Diaphragm8308--01 ~ ; CA18S |
16093-A3510 |
US $42.41 |
||
|
16114
|
16114
16114-D0200 Screw-Adjust, Throttle8308--01 ~ ; CA18S |
16114-D0200 |
US $4.61 |
||
|
16114
|
16114
16193-23012 Spring-Screw Adjust8308--01 ~ 8602--01; CA18S |
16193-23012 |
US $10.94 |
||
|
16114
|
16114
16193-46L00 Spring-Screw Adjust8602--01 ~ ; CA18S |
16193-46L00 |
US $4.61 |
||
|
16114G
|
16114G
16193-23012 Spring-Screw Adjust8308--01 ~ 8602--01; CA18S |
16193-23012 |
US $10.94 |
||
|
16114G
|
16114G
16193-46L00 Spring-Screw Adjust8602--01 ~ ; CA18S |
16193-46L00 |
US $4.61 |
||
|
16115
|
16115
16273-U6800 Plate-Lock, Main Jet Plug8308--01 ~ 8602--01; CA18S |
16273-U6800 |
US $2.45 |
||
|
16116
|
16116
16116-D0200 Sleeve-A8308--01 ~ ; CA18S |
16116-D0200 |
US $4.61 |
||
|
16116
|
16116
16116-D0205 Sleeve-B8308--01 ~ ; CA18S |
16116-D0205 |
US $4.61 |
||
|
16116
|
16116
1611610W00 Sleeve-C8602--01 ~ ; CA18S |
1611610W00 |
US $5.47 |
||
|
16116M
|
16116M
16116-D0205 Sleeve-B8308--01 ~ ; CA18S |
16116-D0205 |
US $4.61 |
||
|
16118
|
16118
16118-51S00 Throttle Body8602--01 ~ ; CA18S.MT |
16118-51S00 |
US $533.83 |
||
|
16118
|
16118
16118-W4606 Throttle Body8308--01 ~ 8602--01; CA18S.MT |
16118-W4606 |
US $412.06 |
||
|
16122F
|
16122F
16169-D1700 Cover-Throttle Shaft8308--01 ~ 8602--01; CA18S |
16169-D1700 |
US $11.52 |
||
| replacement | |||||
|
16122F
|
16122F
16466-D1701 Cover-Throttle Shaft8308--01 ~ 8602--01; CA18S |
16466-D1701 |
US $10.37 |
||
|
16125
|
16125
16125-U6700 Gauge-Level8308--01 ~ 8801--01; CA18S |
16125-U6700 |
US $16.13 |
||
| replacement | |||||
|
16125
|
16125
16125-U6701 Gauge-Level8308--01 ~ 8801--01; CA18S |
16125-U6701 |
US $8.06 |
||
|
16125
|
16125
16125-U6701 Gauge-Level8801--01 ~ ; CA18S |
16125-U6701 |
US $8.06 |
||
|
16127
|
16127
16127-D0200 Plate-Return8308--01 ~ ; CA18S |
16127-D0200 |
US $9.07 |
||
|
16128
|
16128
16063-46L00 Cam-Fast Idle8602--01 ~ ; CA18S |
16063-46L00 |
US $21.02 |
||
|
16128
|
16128
16063-D0200 Cam-Fast Idle8308--01 ~ 8602--01; CA18S |
16063-D0200 |
US $11.52 |
||
|
16132
|
16132
16132-21615 Nut8308--01 ~ ; CA18S |
16132-21615 |
US $4.90 |
||
|
16134
|
16134
16134-D0200 Lever-Throttle8308--01 ~ ; CA18S |
16134-D0200 |
US $9.65 |
||
|
16134
|
16134
16134-D0205 Lever-Throttle8308--01 ~ ; CA18S |
16134-D0205 |
US $14.40 |
||
|
16134
|
16134
16135-D0210 Lever-Throttle Switch8602--01 ~ ; CA18S.MT |
16135-D0210 |
US $22.75 |
||
|
16134M
|
16134M
16134-D0205 Lever-Throttle8308--01 ~ ; CA18S |
16134-D0205 |
US $14.40 |
||
|
16135
|
16135
16135-D0200 Iacv-Ficd Lever8308--01 ~ 8602--01; CA18S |
16135-D0200 |
US $2.74 |
||
|
16140
|
16140
16140-51S00 Spring-Diaphragm8602--01 ~ ; CA18S |
16140-51S00 |
US $6.05 |
||
|
16140
|
16140
16140-D0200 Spring-Diaphragm8308--01 ~ 8602--01; CA18S |
16140-D0200 |
US $2.45 |
||
|
16144
|
16144
16144-S5800 Screw-Adjust, Idle8308--01 ~ ; CA18S |
16144-S5800 |
US $9.65 |
||
|
16145
|
16145
16145-31M10 Spring-Screw, Adjust8602--01 ~ ; CA18S |
16145-31M10 |
US $4.03 |
||
|
16145
|
16145
16145-50000 Spring-Screw, Adjust8308--01 ~ 8602--01; CA18S |
16145-50000 |
US $1.87 |
||
| replacement | |||||
|
16145
|
16145
16145-N0910
Spring-screw adjust
8308--01 ~ 8602--01; CA18S |
16145-N0910 |
— | ||
|
16160
|
16160
16160-46L00 Spring-Throttle Primary8602--01 ~ ; CA18S |
16160-46L00 |
US $5.47 |
||
|
16160
|
16160
16160-P5300 Spring-Throttle Primary8308--01 ~ 8602--01; CA18S |
16160-P5300 |
US $5.76 |
||
|
16160
|
16160
16160-46L05 Spring-Throttle Assist8602--01 ~ ; CA18S |
16160-46L05 |
US $8.35 |
||
|
16160
|
16160
16160-W0400 Spring-Throttle Assist8308--01 ~ 8602--01; CA18S |
16160-W0400 |
US $7.92 |
||
|
16160
|
16160
16160-46L10 Spring-Throttle Secondary8602--01 ~ ; CA18S |
16160-46L10 |
US $8.35 |
||
|
16160
|
16160
16160-Y4100 Spring-Throttle Assist8308--01 ~ 8602--01; CA18S |
16160-Y4100 |
US $5.76 |
||
|
16160M
|
16160M
16160-46L05 Spring-Throttle Assist8602--01 ~ ; CA18S |
16160-46L05 |
US $8.35 |
||
|
16160M
|
16160M
16160-W0400 Spring-Throttle Assist8308--01 ~ 8602--01; CA18S |
16160-W0400 |
US $7.92 |
||
|
16160N
|
16160N
16160-46L10 Spring-Throttle Secondary8602--01 ~ ; CA18S |
16160-46L10 |
US $8.35 |
||
|
16160N
|
16160N
16160-Y4100 Spring-Throttle Assist8308--01 ~ 8602--01; CA18S |
16160-Y4100 |
US $5.76 |
||
|
16161
|
16161
16161-51S00 Hanger-Spring8602--01 ~ ; CA18S |
16161-51S00 |
US $5.04 |
||
|
16161
|
16161
16161-D0200 Hanger-Spring8308--01 ~ 8602--01; CA18S |
16161-D0200 |
US $4.61 |
||
|
16182
|
16182
16182-W8800 Idle Speed Control-Fi Pot8308--01 ~ ; CA18S |
16182-W8800 |
US $114.19 |
||
|
16196
|
16196
16196-01F00 Iacv-Ficd Solenoid Valve8308--01 ~ 8602--01; CA18S |
16196-01F00 |
US $63.36 |
||
|
16196
|
16196
16196-51S00 Iacv-Ficd Solenoid Valve8602--01 ~ 8610--01; CA18S |
16196-51S00 |
US $134.21 |
||
|
16196
|
16196
16196-51S01 Iacv-Ficd Solenoid Valve8610--01 ~ ; CA18S |
16196-51S01 |
US $148.32 |
||
|
16196
|
16196
16450-F1810
Holder
8308--01 ~ 8602--01; CA18S |
16450-F1810 |
— | ||
|
16196
|
16196
16196-51S02 Iacv-Ficd Solenoid Valve8602--01 ~ ; CA18S |
16196-51S02 |
US $123.26 |
||
|
16196
|
16196
16196-51S03 Iacv-Ficd Solenoid Valve8602--01 ~ ; CA18S.MT |
16196-51S03 |
US $110.88 |
||
|
16260M
|
16260M
16260-D0200 Throttle Position Switch8308--01 ~ 8602--01; CA18S |
16260-D0200 |
US $127.01 |
||
|
16313
|
16313
16313-51S00 Diaphragm Assy-Chamber8602--01 ~ ; CA18S |
16313-51S00 |
US $107.42 |
||
|
16313
|
16313
16313-D0200 Diaphragm Assy-Chamber8308--01 ~ 8602--01; CA18S |
16313-D0200 |
US $56.16 |
||
|
16378
|
16378
16378-46L00 Spring-Cam8602--01 ~ ; CA18S |
16378-46L00 |
US $4.90 |
||
|
16378
|
16378
16378-W8800 Spring-Cam8308--01 ~ 8602--01; CA18S |
16378-W8800 |
US $2.45 |
||
| replacement | |||||
|
16378
|
16378
16378-W1100 Spring-Cam8308--01 ~ 8602--01; CA18S |
16378-W1100 |
US $4.18 |
||
|
16387
|
16387
16015-D0200 Lever-Connecting8308--01 ~ ; CA18S |
16015-D0200 |
US $22.32 |
||
|
16483
|
16483
16483-P5320 Cap-Rubber8308--01 ~ ; CA18S |
16483-P5320 |
US $4.90 |
||
|
16484
|
16484
16484-01F00 Barometic Pressure Sensor-B.c.d.d8308--01 ~ 8602--01; CA18S.MT |
16484-01F00 |
US $322.85 |
||
|
16484
|
16484
16484-01F01 Barometic Pressure Sensor-B.c.d.d8308--01 ~ 8602--01; CA18S.MT |
16484-01F01 |
US $322.85 |
||
|
16484
|
16484
16484-51S00 Barometic Pressure Sensor-B.c.d.d8602--01 ~ 8610--01; CA18S.MT |
16484-51S00 |
US $402.14 |
||
|
16484
|
16484
16484-51S01 Barometic Pressure Sensor-B.c.d.d8610--01 ~ ; CA18S.MT |
16484-51S01 |
US $365.33 |
||
