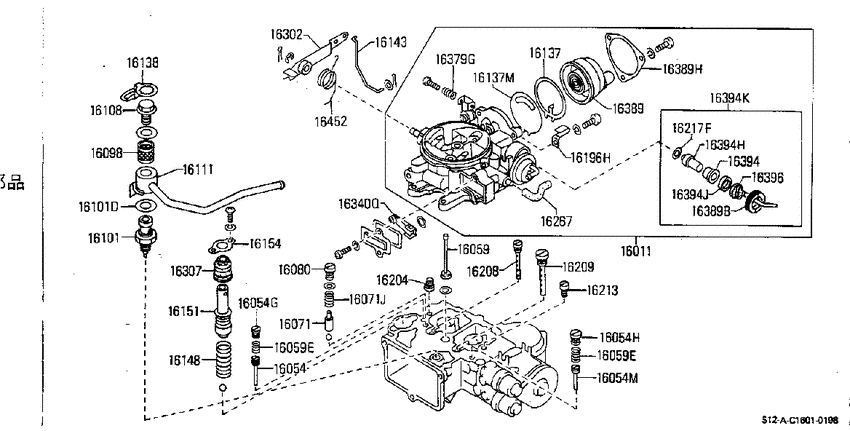

Carburetor (1983-08-01 ~ 1986-02-01; チョークチャンバー関係構成部品; CA18S) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16011
|
16011
16011-01F00 Chamber Assy-Choke8308--01 ~ 8404--01; CA18S |
16011-01F00 |
US $661.27 |
||
|
16011
|
16011
16011-01F01 Chamber Assy-Choke8404--01 ~ 8602--01; CA18S |
16011-01F01 |
US $152.64 |
||
|
16011
|
16011
16011-51S00 Chamber Assy-Choke8602--01 ~ ; CA18S |
16011-51S00 |
US $1,028.02 |
||
|
16054
|
16054
16054-U6700 Jet-Slow8308--01 ~ 8602--01; CA18S.MT; #48 |
16054-U6700 |
US $9.65 |
||
|
16054
|
16054
16055-46L00 Jet-Slow8602--01 ~ ; CA18S; #48 |
16055-46L00 |
US $16.85 |
||
|
16054
|
16054
16286-U6700 Plug8308--01 ~ ; CA18S |
16286-U6700 |
US $2.74 |
||
|
16054
|
16054
16286-D2100 Jet-Slow8308--01 ~ 8602--01; CA18S |
16286-D2100 |
US $6.91 |
||
|
16054
|
16054
16055-W4006 Jet-Slow8602--01 ~ ; CA18S; #85 |
16055-W4006 |
US $11.23 |
||
|
16054
|
16054
16055-W4600 Jet-Slow8308--01 ~ 8602--01; CA18S; #100 |
16055-W4600 |
US $11.09 |
||
|
16054G
|
16054G
16286-U6700 Plug8308--01 ~ ; CA18S |
16286-U6700 |
US $2.74 |
||
|
16054H
|
16054H
16286-D2100 Jet-Slow8308--01 ~ 8602--01; CA18S |
16286-D2100 |
US $6.91 |
||
|
16054M
|
16054M
16055-W4006 Jet-Slow8602--01 ~ ; CA18S; #85 |
16055-W4006 |
US $11.23 |
||
|
16054M
|
16054M
16055-W4600 Jet-Slow8308--01 ~ 8602--01; CA18S; #100 |
16055-W4600 |
US $11.09 |
||
|
16059
|
16059
16059-D0200 Valve-Power8308--01 ~ 8602--01; CA18.MT; #43 |
16059-D0200 |
US $13.82 |
||
|
16059
|
16059
16158-U9500 Spring-Jet Power Valve8308--01 ~ 8602--01; CA18S |
16158-U9500 |
US $1.87 |
||
|
16059E
|
16059E
16158-U9500 Spring-Jet Power Valve8308--01 ~ 8602--01; CA18S |
16158-U9500 |
US $1.87 |
||
|
16059E
|
16059E
16158-U9500 Spring-Jet Power Valve8308--01 ~ 8602--01; CA18S |
16158-U9500 |
US $1.87 |
||
|
16071
|
16071
16071-U6700 Weight-Injector8308--01 ~ ; CA18S |
16071-U6700 |
US $2.74 |
||
|
16071
|
16071
16069-U6700 Spring-Injector8308--01 ~ ; CA18S |
16069-U6700 |
US $2.45 |
||
|
16071J
|
16071J
16069-U6700 Spring-Injector8308--01 ~ ; CA18S |
16069-U6700 |
US $2.45 |
||
|
16080
|
16080
16080-Y4010 Screw-Injector Set8308--01 ~ ; CA18S |
16080-Y4010 |
US $4.61 |
||
|
16098
|
16098
16098-H7201
Filter
8308--01 ~ 8602--01; CA18S |
16098-H7201 |
— | ||
|
16098
|
16098
16098Y4000 Filter8602--01 ~ ; CA18S |
16098Y4000 |
US $7.92 |
||
|
16101
|
16101
16101-W1601 Valve-Needle8308--01 ~ ; CA18S |
16101-W1601 |
US $21.74 |
||
|
16101
|
16101
16094-U6700 Washer8308--01 ~ ; CA18S |
16094-U6700 |
US $1.89 |
||
|
16101
|
16101
16049-76500 Washer8308--01 ~ ; CA18S |
16049-76500 |
US $0.81 |
||
|
16101D
|
16101D
16049-76500 Washer8308--01 ~ ; CA18S |
16049-76500 |
US $0.81 |
||
|
16108
|
16108
16108-08000 Screw-Filter Set8308--01 ~ ; CA18S |
16108-08000 |
US $3.88 |
||
|
16111
|
16111
16111-D0200 Nipple-Fuel8308--01 ~ 8602--01; CA18S |
16111-D0200 |
US $42.48 |
||
|
16111
|
16111
16111-D1700 Nipple-Fuel8602--01 ~ ; CA18S |
16111-D1700 |
US $39.31 |
||
|
16137
|
16137
16390-S5800
Plate-Stopping
8308--01 ~ ; CA18S |
16390-S5800 |
— | ||
|
16137
|
16137
16390-D0205 Plate-Stopping, Rear8308--01 ~ ; CA18S |
16390-D0205 |
US $4.61 |
||
|
16137M
|
16137M
16390-D0205 Plate-Stopping, Rear8308--01 ~ ; CA18S |
16390-D0205 |
US $4.61 |
||
|
16138
|
16138
16138-10W00 Lever-Lock8602--01 ~ ; CA18S |
16138-10W00 |
US $4.18 |
||
|
16138
|
16138
16138-U6700 Lever-Lock8308--01 ~ 8602--01; CA18S |
16138-U6700 |
US $4.61 |
||
|
16143
|
16143
16143-D2100 Rod-Pump8602--01 ~ ; CA18S |
16143-D2100 |
US $7.20 |
||
|
16143
|
16143
16143-S5800 Rod-Pump8308--01 ~ 8602--01; CA18S |
16143-S5800 |
US $5.18 |
||
|
16148
|
16148
16148-35010 Spring-Return, Piston8308--01 ~ 8602--01; CA18S |
16148-35010 |
US $1.73 |
||
|
16148
|
16148
16148-Y7000
Spring-Return, Piston
8602--01 ~ 8609--01; CA18S |
16148-Y7000 |
— | ||
|
16151
|
16151
16151-51S00 Piston8602--01 ~ 8607--01; CA18S |
16151-51S00 |
US $32.54 |
||
|
16151
|
16151
16151-51S01 Piston8607--01 ~ ; CA18S.MT |
16151-51S01 |
US $46.37 |
||
|
16151
|
16151
16151-Y4100 Piston8308--01 ~ 8602--01; CA18S |
16151-Y4100 |
US $9.50 |
||
|
16154
|
16154
16154-W8800 Plate-Cylinder8308--01 ~ 8609--01; CA18S |
16154-W8800 |
US $2.74 |
||
|
16196H
|
16196H
16450-F1810
Holder
8308--01 ~ 8602--01; CA18S |
16450-F1810 |
— | ||
|
16204
|
16204
16051-H7201 Bleed-Slow Air8308--01 ~ 8309--01; CA18S; #170 |
16051-H7201 |
US $5.47 |
||
|
16204
|
16204
16204-01F00
Bleed-Slow Air
8309--01 ~ 8602--01; CA18S |
16204-01F00 |
— | ||
|
16208
|
16208
16036-D0204
Bleed-Main Air
8309--01 ~ 8602--01; CA18S |
16036-D0204 |
— | ||
|
16208
|
16208
16036-D2101 Bleed-Main Air8602--01 ~ ; CA18S; #60 |
16036-D2101 |
US $8.35 |
||
|
16208
|
16208
16036-W8802 Bleed-Main Air8308--01 ~ 8309--01; CA18S; #60 |
16036-W8802 |
US $11.52 |
||
|
16209
|
16209
16036-D1700 Bleed-Main Air8308--01 ~ 8602--01; CA18S; #95 |
16036-D1700 |
US $12.10 |
||
|
16209
|
16209
16204-46L10 Bleed-Slow Air8602--01 ~ ; CA18S; #145 |
16204-46L10 |
US $6.91 |
||
|
16213
|
16213
16204-W6800 Bleed-Slow Air8308--01 ~ 8602--01; CA18S |
16204-W6800 |
US $5.18 |
||
|
16217F
|
16217F
16392-S5800 Collar8308--01 ~ ; CA18S |
16392-S5800 |
US $14.40 |
||
|
16267
|
16267
16267-D0200 Pipe-Rubber8308--01 ~ ; CA18S |
16267-D0200 |
US $4.61 |
||
|
16302
|
16302
16302-51S00 Lever-Pump8602--01 ~ 8609--01; CA18S |
16302-51S00 |
US $26.93 |
||
|
16302
|
16302
16302-D2100 Lever-Pump8308--01 ~ 8602--01; CA18S |
16302-D2100 |
US $30.67 |
||
|
16307
|
16307
16307-D0200 Cover-Pump8308--01 ~ 8602--01; CA18S |
16307-D0200 |
US $8.06 |
||
|
16307
|
16307
16307-W8800
Cover-Pump
8602--01 ~ 8609--01; CA18S |
16307-W8800 |
— | ||
|
16340Q
|
16340Q
16331-W8800 Compensator Assy-Idle8308--01 ~ 8602--01; CA18S |
16331-W8800 |
US $65.66 |
||
|
16379G
|
16379G
16193-U2000 Spring-Screw, Adjust8308--01 ~ 8602--01; CA18S |
16193-U2000 |
US $0.86 |
||
|
16389
|
16389
16389-V5400 Cover-Thermo8308--01 ~ ; CA18S |
16389-V5400 |
US $127.58 |
||
|
16389
|
16389
16023-77A00 Nut8801--01 ~ ; CA18S.MT |
16023-77A00 |
US $38.30 |
||
|
16389
|
16389
16399-S5800 Nut8308--01 ~ 8801--01; CA18S |
16399-S5800 |
US $37.30 |
||
|
16389
|
16389
16390-D0200 Plate-Thermo Cover8308--01 ~ ; CA18S |
16390-D0200 |
US $8.78 |
||
|
16389B
|
16389B
16023-77A00 Nut8801--01 ~ ; CA18S.MT |
16023-77A00 |
US $38.30 |
||
|
16389B
|
16389B
16399-S5800 Nut8308--01 ~ 8801--01; CA18S |
16399-S5800 |
US $37.30 |
||
|
16389H
|
16389H
16390-D0200 Plate-Thermo Cover8308--01 ~ ; CA18S |
16390-D0200 |
US $8.78 |
||
|
16394
|
16394
16394-S5800 Ptc8308--01 ~ ; CA18S |
16394-S5800 |
US $26.21 |
||
|
16394
|
16394
16393-S5800 Wax8308--01 ~ ; CA18S |
16393-S5800 |
US $26.47 |
||
|
16394
|
16394
16023-S5800 Stopper8308--01 ~ ; CA18S |
16023-S5800 |
US $3.74 |
||
|
16394
|
16394
16391-D0200 Wax Kit8308--01 ~ 8602--01; CA18S |
16391-D0200 |
US $127.15 |
||
|
16394
|
16394
16391-D2200 Wax Kit8602--01 ~ 8801--01; CA18S |
16391-D2200 |
US $117.22 |
||
|
16394
|
16394
16391-D2201 Wax Kit8801--01 ~ ; CA18S.MT |
16391-D2201 |
US $122.83 |
||
|
16394H
|
16394H
16393-S5800 Wax8308--01 ~ ; CA18S |
16393-S5800 |
US $26.47 |
||
|
16394J
|
16394J
16023-S5800 Stopper8308--01 ~ ; CA18S |
16023-S5800 |
US $3.74 |
||
|
16394K
|
16394K
16391-D0200 Wax Kit8308--01 ~ 8602--01; CA18S |
16391-D0200 |
US $127.15 |
||
|
16394K
|
16394K
16391-D2200 Wax Kit8602--01 ~ 8801--01; CA18S |
16391-D2200 |
US $117.22 |
||
|
16394K
|
16394K
16391-D2201 Wax Kit8801--01 ~ ; CA18S.MT |
16391-D2201 |
US $122.83 |
||
|
16396
|
16396
16396-D0200
Cord
8308--01 ~ 8602--01; CA18S |
16396-D0200 |
— | ||
|
16396
|
16396
16396-D2200
Cord
8602--01 ~ ; CA18S |
16396-D2200 |
— | ||
|
16452
|
16452
16452-46L00 Spring-Pump Lever8602--01 ~ ; CA18S |
16452-46L00 |
US $4.61 |
||
|
16452
|
16452
16452-U6700
Spring-Pump Lever
8308--01 ~ 8602--01; CA18S |
16452-U6700 |
— |
