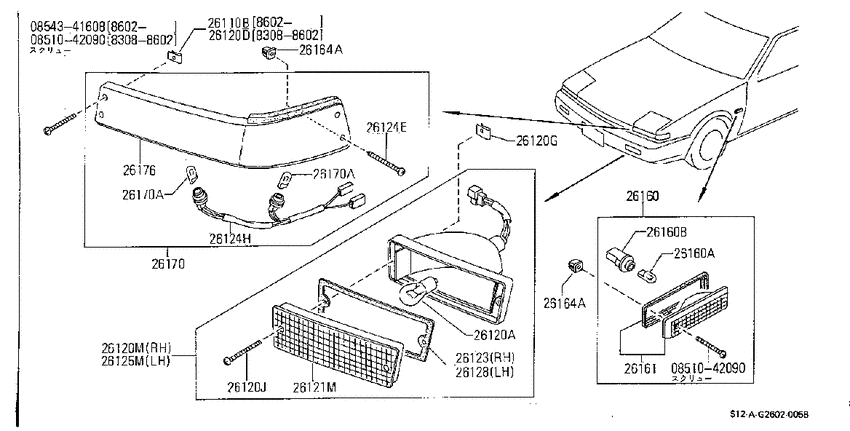

Front combination lamp (1983-08-01 ~ ; ALL) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851042090
|
0851042090
08510-42090
SCREW
|
08510-42090 |
— | ||
|
0851042090
|
0851042090
08510-42090
SCREW
|
08510-42090 |
— | ||
|
0854341608
|
0854341608
08543-41608
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-41608 |
— | ||
|
26110B
|
26110B
01281-00581 GROMMET-SCREW8602--01 ~ ; ALL |
01281-00581 |
US $3.18 |
||
|
26120A
|
26120A
AY08000023
Bulb
8308--01 ~ ; ALL; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26120A
|
26120A
AY080-00087 Bulb (12V 21W)8308--01 ~ ; ALL; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26120D
|
26120D
01241-00321 NUT8308--01 ~ 8602--01; ALL |
01241-00321 |
US $4.57 |
||
|
26120G
|
26120G
68965-89900 Nut8308--01 ~ ; ALL |
68965-89900 |
US $1.73 |
||
|
26120J
|
26120J
01451-00041 SCREW8308--01 ~ 8602--01; ALL |
01451-00041 |
from US $1.11 |
||
|
26120J
|
26120J
0145100061 SCREW8602--01 ~ ; ALL |
0145100061 |
US $1.93 |
||
|
26120M
|
26120M
26120-01F00 Lamp Assy-Turn Signal, Front Rh8308--01 ~ 8602--01; ALL; [B113] |
26120-01F00 |
US $84.24 |
||
|
26120M
|
26120M
B6130-30F00 Lamp Assy-Front Combination, Rh8602--01 ~ ; ALL; [B113] |
B6130-30F00 |
US $88.27 |
||
|
26121M
|
26121M
2612156L00 Lens-Front Turn Signal, Rh8602--01 ~ ; ALL; RHﾖｳ[B113] |
2612156L00 |
US $10.08 |
||
|
26121M
|
26121M
26121-N8800 Lens-Front Turn Signal, Rh8308--01 ~ 8602--01; ALL; RHﾖｳ[B113] |
26121-N8800 |
US $23.04 |
||
|
26121M
|
26121M
2612656L00 Lens-Front Turn Signal, Lh8602--01 ~ ; ALL; LHﾖｳ[B113] |
2612656L00 |
from US $9.69 |
||
|
26121M
|
26121M
26126-N8800 Lens-Front Turn Signal, Rh8308--01 ~ 8602--01; ALL; LHﾖｳ[B113] |
26126-N8800 |
US $23.04 |
||
|
26123
|
26123
26123-01F00 Packing-Lens, Rh8308--01 ~ 8602--01; ALL; IKI[B113] |
26123-01F00 |
US $6.48 |
||
|
26123
|
26123
26128-01E00 PACKING-LENS,LH8602--01 ~ ; ALL; RH & LH[B113] |
26128-01E00 |
US $4.32 |
||
|
26124E
|
26124E
26177-01F00 Screw8308--01 ~ 8602--01; ALL; [B113] |
26177-01F00 |
US $3.60 |
||
|
26124E
|
26124E
26392-30F00 Screw8602--01 ~ ; ALL; [B113] |
26392-30F00 |
US $2.02 |
||
|
26124H
|
26124H
26173-01F00 Harness-Front Combination Lamp8308--01 ~ 8602--01; ALL; ｸﾘｱﾗﾝｽ ﾗﾝﾌﾟﾖｳ,IKI[B113] |
26173-01F00 |
US $27.22 |
||
|
26124H
|
26124H
26240-30F00 Harness-Front Combination Lamp8602--01 ~ ; ALL; ｸﾘｱﾗﾝｽﾗﾝﾌﾟﾖｳ[B113] |
26240-30F00 |
US $33.84 |
||
|
26125M
|
26125M
26125-01F00 Lamp Assy-Turn Signal, Front Lh8308--01 ~ 8602--01; ALL; [B113] |
26125-01F00 |
US $84.24 |
||
|
26125M
|
26125M
B6135-30F00 Lamp Assy-Front Combination, Lh8602--01 ~ ; ALL; [B113] |
B6135-30F00 |
US $88.27 |
||
|
26128
|
26128
26128-01F00 Packing-Lens, Lh8308--01 ~ 8602--01; ALL; IKI[B113] |
26128-01F00 |
US $6.48 |
||
|
26160
|
26160
26160-01F00 Lamp Assy-Side Marker, Rh8308--01 ~ 8602--01; ALL; RH & LH ｼﾖｳ[B113] |
26160-01F00 |
US $41.47 |
||
|
26160
|
26160
26160-61L00
Lamp Assy-Side Flasher, Rh
8602--01 ~ ; ALL; RH & LH ｼﾖｳ[B113] |
26160-61L00 |
— | ||
|
26160
|
26160
AY08000062
Bulb
8308--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26160
|
26160
AY080-00090 BULB LICENCE_AS8308--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26160
|
26160
26260-V5500 Socket Assy-Side Flasher Lamp8308--01 ~ ; ALL; IKI[B113] |
26260-V5500 |
US $8.78 |
||
|
26160A
|
26160A
AY08000062
Bulb
8308--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26160A
|
26160A
AY080-00090 BULB LICENCE_AS8308--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26160B
|
26160B
26260-V5500 Socket Assy-Side Flasher Lamp8308--01 ~ ; ALL; IKI[B113] |
26260-V5500 |
US $8.78 |
||
|
26161
|
26161
26161-01F00 Lens-Side Marker Lamp, Rh8308--01 ~ ; ALL; IKI[B113] |
26161-01F00 |
US $25.63 |
||
|
26164A
|
26164A
96706B0700 Nut8308--01 ~ 8602--01; ALL; ｸﾞﾘﾙ ﾖｳ |
96706B0700 |
US $1.93 |
||
|
26164A
|
26164A
96706B0700 Nut8308--01 ~ 8602--01; ALL; ｸﾞﾘﾙ ﾖｳ |
96706B0700 |
US $1.93 |
||
|
26170
|
26170
26170-01F00
Lamp Assy-Clearance
8308--01 ~ 8602--01; ALL; RHﾖｳ[B113] |
26170-01F00 |
— | ||
|
26170
|
26170
26175-01F00
Lamp Assy-Clearance
8308--01 ~ 8602--01; ALL; LHﾖｳ[B113] |
26175-01F00 |
— | ||
|
26170
|
26170
B6170-30F00 Lamp Assy-Clearance8602--01 ~ ; ALL; RHﾖｳ[B113] |
B6170-30F00 |
US $182.88 |
||
|
26170
|
26170
B6175-30F00 Lamp Assy-Clearance8602--01 ~ ; ALL; LHﾖｳ[B113] |
B6175-30F00 |
US $182.88 |
||
|
26170
|
26170
26261-89903
Bulb
8308--01 ~ 8602--01; ALL; 12V-5W[B113] |
26261-89903 |
— | ||
| replacement | |||||
|
26170
|
26170
2626189965 Bulb8308--01 ~ 8602--01; ALL; 12V-5W[B113] |
2626189965 |
from US $1.07 |
||
|
26170
|
26170
AY08000062
Bulb
8602--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26170
|
26170
AY080-00090 BULB LICENCE_AS8602--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26170A
|
26170A
26261-89903
Bulb
8308--01 ~ 8602--01; ALL; 12V-5W[B113] |
26261-89903 |
— | ||
| replacement | |||||
|
26170A
|
26170A
2626189965 Bulb8308--01 ~ 8602--01; ALL; 12V-5W[B113] |
2626189965 |
from US $1.07 |
||
|
26170A
|
26170A
AY08000062
Bulb
8602--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26170A
|
26170A
AY080-00090 BULB LICENCE_AS8602--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26170A
|
26170A
26261-89903
Bulb
8308--01 ~ 8602--01; ALL; 12V-5W[B113] |
26261-89903 |
— | ||
| replacement | |||||
|
26170A
|
26170A
2626189965 Bulb8308--01 ~ 8602--01; ALL; 12V-5W[B113] |
2626189965 |
from US $1.07 |
||
|
26170A
|
26170A
AY08000062
Bulb
8602--01 ~ ; ALL; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26170A
|
26170A
AY080-00090 BULB LICENCE_AS8602--01 ~ ; ALL; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26176
|
26176
26171-01F00
Lens-Clearance Lamp
8308--01 ~ 8602--01; ALL; F/RH[B113] |
26171-01F00 |
— | ||
|
26176
|
26176
26174-30F00
Lens-Clearance Lamp
8602--01 ~ ; ALL; RHﾖｳ[B113] |
26174-30F00 |
— | ||
|
26176
|
26176
26176-01F00
Lens-Clearance Lamp
8308--01 ~ 8602--01; ALL; F/LH[B113] |
26176-01F00 |
— | ||
|
26176
|
26176
26179-30F00 Lens-Clearance Lamp8602--01 ~ ; ALL; LHﾖｳ[B113] |
26179-30F00 |
US $92.16 |
||
