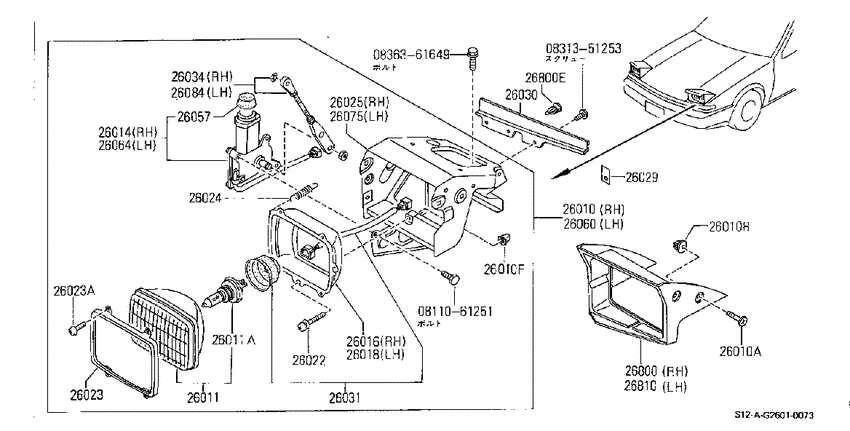

Head lamp (1983-08-01 ~ ; ALL) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831351253
|
0831351253
08313-51253
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-51253 |
— | ||
|
0836361649
|
0836361649
08363-61649
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61649 |
— | ||
|
26010
|
26010
26010-01F01 Lamp Assy-Rh8308--01 ~ 8602--01; ALL-FJ20T.RSX; ﾊﾛｹﾞﾝ[B113] |
26010-01F01 |
US $974.21 |
||
|
26010
|
26010
26392-01F00 Bolt8308--01 ~ ; ALL |
26392-01F00 |
US $2.45 |
||
|
26010
|
26010
72774-01F00 Nut8308--01 ~ ; ALL; GROMMET |
72774-01F00 |
US $1.93 |
||
|
26010
|
26010
01281-00022
GROMMET
8308--01 ~ ; ALL; FIX,CTR SIDE |
01281-00022 |
— | ||
|
26010
|
26010
26608-31M00 Grommet-Screw8308--01 ~ ; ALL; [B113] |
26608-31M00 |
US $1.73 |
||
|
26010A
|
26010A
26392-01F00 Bolt8308--01 ~ ; ALL |
26392-01F00 |
US $2.45 |
||
|
26010B
|
26010B
72774-01F00 Nut8308--01 ~ ; ALL; GROMMET |
72774-01F00 |
US $1.93 |
||
|
26010F
|
26010F
01281-00022
GROMMET
8308--01 ~ ; ALL; FIX,CTR SIDE |
01281-00022 |
— | ||
|
26010F
|
26010F
26608-31M00 Grommet-Screw8308--01 ~ ; ALL; [B113] |
26608-31M00 |
US $1.73 |
||
|
26011
|
26011
26705C9921 Head Lamp Unit8308--01 ~ ; ALL; [B113] |
26705C9921 |
US $89.86 |
||
|
26011
|
26011
AY08010003 Bulb8308--01 ~ ; ALL |
AY08010003 |
US $16.67 |
||
|
26011
|
26011
26705C9921 Head Lamp Unit8308--01 ~ ; ALL; [B113] |
26705C9921 |
US $89.86 |
||
|
26011
|
26011
AY08010003 Bulb8308--01 ~ ; ALL |
AY08010003 |
US $16.67 |
||
|
26011A
|
26011A
AY08010003 Bulb8308--01 ~ ; ALL |
AY08010003 |
US $16.67 |
||
|
26014
|
26014
26047-01F01
Motor Assy-Head Lamp, Rh
8308--01 ~ ; ALL; [B113] |
26047-01F01 |
— | ||
|
26016
|
26016
26018-01F01 Rim-Mounting, N0.1 Rh8308--01 ~ 8602--01; ALL-FJ20T.RSX; [B113] |
26018-01F01 |
US $17.71 |
||
|
26018
|
26018
26019-01F01 Rim-Mounting, N0.1 Lh8308--01 ~ 8602--01; ALL-FJ20T.RSX; [B113] |
26019-01F01 |
US $17.71 |
||
|
26022
|
26022
26022-01F01 Screw-Adjusting8308--01 ~ ; ALL; [B113] |
26022-01F01 |
US $3.60 |
||
|
26023
|
26023
26023-W7600 Ring-Retaining8308--01 ~ ; ALL; W/O WIPER[B113] |
26023-W7600 |
from US $92.91 |
||
|
26023
|
26023
26391-01F01
Screw
8308--01 ~ ; ALL; [B113] |
26391-01F01 |
— | ||
| replacement | |||||
|
26023
|
26023
26391-01F02 Bolt8308--01 ~ ; ALL; [B113] |
26391-01F02 |
US $4.03 |
||
|
26023A
|
26023A
26391-01F01
Screw
8308--01 ~ ; ALL; [B113] |
26391-01F01 |
— | ||
| replacement | |||||
|
26023A
|
26023A
26391-01F02 Bolt8308--01 ~ ; ALL; [B113] |
26391-01F02 |
US $4.03 |
||
|
26024
|
26024
26074-01F01 Spring-Tension8308--01 ~ ; ALL; [B113] |
26074-01F01 |
from US $3.32 |
||
|
26025
|
26025
26025-01F25 Housing Assy-Head Lamp, Rh8308--01 ~ 8602--01; ALL-FJ20T.RSX; ｸﾘ-ﾅ-ﾅｼ[B113] |
26025-01F25 |
US $423.38 |
||
|
26029
|
26029
26033-01F00
Holder-Head Lamp
8308--01 ~ ; ALL; [B113] |
26033-01F00 |
— | ||
|
26030
|
26030
65816-01F01
Protector-Head Lamp
8308--01 ~ ; ALL; RH |
65816-01F01 |
— | ||
|
26030
|
26030
65817-01F01 Protector-Head Lamp8308--01 ~ ; ALL; LH |
65817-01F01 |
US $10.80 |
||
|
26031
|
26031
26029-01F00 Cable Assy-Head Lamp8308--01 ~ ; ALL; [B113] |
26029-01F00 |
US $42.19 |
||
|
26034
|
26034
26034-01F01 Link-Head Lamp Motor, Rh8308--01 ~ 8602--01; ALL-FJ20T.RSX; RH&LH ｼﾖｳ[B113] |
26034-01F01 |
US $34.78 |
||
|
26057
|
26057
26091-31M00 Finisher-Aiming Control8308--01 ~ ; ALL |
26091-31M00 |
US $4.90 |
||
|
26060
|
26060
26060-01F01 Lamp Assy-Lh8308--01 ~ 8602--01; ALL-FJ20T.RSX; ﾊﾛｹﾞﾝ[B113] |
26060-01F01 |
US $974.21 |
||
|
26064
|
26064
26097-01F01
Motor Assy-Head Lamp, Lh
8308--01 ~ ; ALL; [B113] |
26097-01F01 |
— | ||
|
26075
|
26075
26075-01F25 Housing Assy-Head Lamp, Lh8308--01 ~ 8602--01; ALL-FJ20T.RSX; ｸﾘ-ﾅ-ﾅｼ[B113] |
26075-01F25 |
US $423.38 |
||
|
26800
|
26800
26045-01F02 Cover-Head Lamp, Rh8308--01 ~ 8602--01; ALL-FJ20T.RSX; [B113] |
26045-01F02 |
US $56.45 |
||
|
26800
|
26800
01553-01251 CLIP-BLIND8308--01 ~ ; ALL |
01553-01251 |
from US $0.50 |
||
|
26800E
|
26800E
01553-01251 CLIP-BLIND8308--01 ~ ; ALL |
01553-01251 |
from US $0.50 |
||
|
26810
|
26810
26095-01F02 Cover-Head Lamp, Lh8308--01 ~ 8602--01; ALL-FJ20T.RSX; [B113] |
26095-01F02 |
US $56.45 |
||
