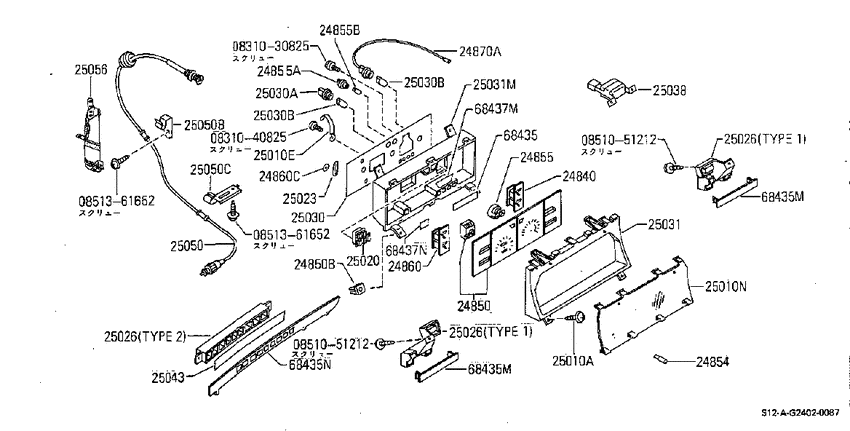

meter (1986-02-01 ~ ; アナログ; ALL) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831030825
|
0831030825
0831030825
Screw-machine
|
0831030825 |
— | ||
|
0831040825
|
0831040825
08310-40825
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-40825 |
— | ||
|
0851051212
|
0851051212
08510-51212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-51212 |
— | ||
|
0851051212
|
0851051212
08510-51212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-51212 |
— | ||
|
0851361652
|
0851361652
08513-61652
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-61652 |
— | ||
|
0851361652
|
0851361652
08513-61652
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-61652 |
— | ||
|
24840
|
24840
24835-01F00 Meter Assy-Water & Oil8308--01 ~ 8602--01; ALL |
24835-01F00 |
US $191.52 |
||
|
24840
|
24840
24835-31F00 Meter Assy-Water & Oil8602--01 ~ ; ALL |
24835-31F00 |
US $191.52 |
||
|
24850
|
24850
24820-01F00 Speedometer Assy8308--01 ~ 8602--01; CA18S,CA18E |
24820-01F00 |
US $386.57 |
||
|
24850
|
24850
24820-31F00 Speedometer Assy8602--01 ~ ; CA18S |
24820-31F00 |
US $386.57 |
||
|
24850
|
24850
68198-W1000 Nut8308--01 ~ ; ALL |
68198-W1000 |
US $0.86 |
||
| replacement | |||||
|
24850
|
24850
6819151E0A Nut8308--01 ~ ; ALL |
6819151E0A |
US $1.39 |
||
|
24850B
|
24850B
68198-W1000 Nut8308--01 ~ ; ALL |
68198-W1000 |
US $0.86 |
||
| replacement | |||||
|
24850B
|
24850B
6819151E0A Nut8308--01 ~ ; ALL |
6819151E0A |
US $1.39 |
||
|
24854
|
24854
24870-01F00 Knob-Tripmeter8308--01 ~ ; ALL; ｱﾅﾛｸﾞﾒ-ﾀ- ﾖｳ |
24870-01F00 |
US $4.03 |
||
|
24855
|
24855
24825-01F00 Tachometer Assy8308--01 ~ 8602--01; CA18#; [B208] |
24825-01F00 |
US $201.60 |
||
|
24855
|
24855
24825-31F00 Tachometer Assy8602--01 ~ ; CA18S+CA18ET |
24825-31F00 |
US $314.35 |
||
|
24855
|
24855
25043-F5050 Socket Assy-Bulb8308--01 ~ 8602--01; ALL-CA18ET.RXG; ﾊﾞﾙﾌﾞ ﾂｷ |
25043-F5050 |
US $5.76 |
||
|
24855
|
24855
26260-01G01 Socket Assy-Bulb8602--01 ~ ; ALL |
26260-01G01 |
US $4.03 |
||
|
24855
|
24855
2626101G01 Bulb8602--01 ~ ; ALL; 12V-2W |
2626101G01 |
US $2.16 |
||
|
24855A
|
24855A
25043-F5050 Socket Assy-Bulb8308--01 ~ 8602--01; ALL-CA18ET.RXG; ﾊﾞﾙﾌﾞ ﾂｷ |
25043-F5050 |
US $5.76 |
||
|
24855A
|
24855A
26260-01G01 Socket Assy-Bulb8602--01 ~ ; ALL |
26260-01G01 |
US $4.03 |
||
|
24855B
|
24855B
2626101G01 Bulb8602--01 ~ ; ALL; 12V-2W |
2626101G01 |
US $2.16 |
||
|
24860
|
24860
24830-01F00 Meter Assy-Fuel8308--01 ~ 8602--01; CA18S,CA18E,FJ20; ﾎﾞﾙﾄ ﾂｷ |
24830-01F00 |
US $227.52 |
||
|
24860
|
24860
24830-31F00 Meter Assy-Fuel8602--01 ~ ; ALL; ﾎﾞﾙﾄ ﾂｷ |
24830-31F00 |
US $270.72 |
||
|
24860
|
24860
24899-D0200 Washer8308--01 ~ 8602--01; ALL |
24899-D0200 |
US $0.86 |
||
|
24860
|
24860
24899-V5000 Washer8602--01 ~ ; ALL; NO.2 |
24899-V5000 |
US $3.46 |
||
|
24860C
|
24860C
24899-D0200 Washer8308--01 ~ 8602--01; ALL |
24899-D0200 |
US $0.86 |
||
|
24860C
|
24860C
24899-V5000 Washer8602--01 ~ ; ALL; NO.2 |
24899-V5000 |
US $3.46 |
||
|
24870A
|
24870A
24875-01F00 Socket Assy-Bulb8308--01 ~ ; ALL; !ﾌｱｲﾊﾞ- ｽｺ-ﾌﾟ ﾂｷ ｲｸﾞﾆﾂｼﾖﾝ ｷ- ｼﾖｳﾒｲ |
24875-01F00 |
US $23.18 |
||
|
25010A
|
25010A
0145100221 SCREW8308--01 ~ ; ALL |
0145100221 |
US $2.21 |
||
|
25010E
|
25010E
25053-H8500 Clip-Harness8308--01 ~ 8602--01; ALL |
25053-H8500 |
US $1.01 |
||
|
25010N
|
25010N
24813-01F00 Cover-Lid, Rh8308--01 ~ 8602--01; ALL-CA18ET.RXG |
24813-01F00 |
US $39.31 |
||
|
25010N
|
25010N
24813-31F00 Cover-Lid, Rh8602--01 ~ ; ALL |
24813-31F00 |
US $39.31 |
||
|
25020
|
25020
2485518G00 Regulator Assy8602--01 ~ ; ALL |
2485518G00 |
from US $48.25 |
||
|
25026
|
25026
25022-31F00 Case Assy-Charge Warning8602--01 ~ ; ALL; TYPE1 LH |
25022-31F00 |
US $87.98 |
||
|
25026
|
25026
25022-31F10
Case Assy-Charge Warning
8602--01 ~ ; CA18S; TYPE1 RH |
25022-31F10 |
— | ||
|
25026
|
25026
25047-01F00
Case Assy-Charge Warning
8308--01 ~ 8602--01; ALL; LH TYPE1 |
25047-01F00 |
— | ||
|
25026
|
25026
25047-01F10
Case Assy-Charge Warning
8308--01 ~ 8602--01; ALL; RH TYPE1 |
25047-01F10 |
— | ||
|
25026
|
25026
25022-31F00 Case Assy-Charge Warning8602--01 ~ ; ALL; TYPE1 LH |
25022-31F00 |
US $87.98 |
||
|
25026
|
25026
25022-31F10
Case Assy-Charge Warning
8602--01 ~ ; CA18S; TYPE1 RH |
25022-31F10 |
— | ||
|
25026
|
25026
25047-01F00
Case Assy-Charge Warning
8308--01 ~ 8602--01; ALL; LH TYPE1 |
25047-01F00 |
— | ||
|
25026
|
25026
25047-01F10
Case Assy-Charge Warning
8308--01 ~ 8602--01; ALL; RH TYPE1 |
25047-01F10 |
— | ||
|
25026
|
25026
25022-31F00 Case Assy-Charge Warning8602--01 ~ ; ALL; TYPE1 LH |
25022-31F00 |
US $87.98 |
||
|
25026
|
25026
25022-31F10
Case Assy-Charge Warning
8602--01 ~ ; CA18S; TYPE1 RH |
25022-31F10 |
— | ||
|
25026
|
25026
25047-01F00
Case Assy-Charge Warning
8308--01 ~ 8602--01; ALL; LH TYPE1 |
25047-01F00 |
— | ||
|
25026
|
25026
25047-01F10
Case Assy-Charge Warning
8308--01 ~ 8602--01; ALL; RH TYPE1 |
25047-01F10 |
— | ||
|
25030
|
25030
24814-01F00 Plate Assy-Printed Circuit8308--01 ~ 8602--01; CA18S,CA18E,FJ20 |
24814-01F00 |
US $63.22 |
||
|
25030
|
25030
24814-31F00
Plate Assy-Printed Circuit
8602--01 ~ ; ALL |
24814-31F00 |
— | ||
|
25030
|
25030
26260-N8200 Socket Assy-Bulb8308--01 ~ ; ALL; 12V-3.4Wﾊﾞﾙﾌﾞ ﾖｳ |
26260-N8200 |
US $10.54 |
||
|
25030
|
25030
AY08000064 Bulb8308--01 ~ ; ALL; 12V-3.4W |
AY08000064 |
US $0.97 |
||
|
25030A
|
25030A
26260-N8200 Socket Assy-Bulb8308--01 ~ ; ALL; 12V-3.4Wﾊﾞﾙﾌﾞ ﾖｳ |
26260-N8200 |
US $10.54 |
||
|
25030B
|
25030B
AY08000064 Bulb8308--01 ~ ; ALL; 12V-3.4W |
AY08000064 |
US $0.97 |
||
|
25030B
|
25030B
AY08000064 Bulb8308--01 ~ ; ALL; 12V-3.4W |
AY08000064 |
US $0.97 |
||
|
25031
|
25031
24812-01F00 Housing-Meter Comb, Upper8308--01 ~ ; ALL |
24812-01F00 |
US $46.08 |
||
|
25031
|
25031
24811-01F00
Housing-Meter Comb, Lower
8308--01 ~ 8602--01; ALL |
24811-01F00 |
— | ||
|
25031
|
25031
24811-31F00 Housing-Meter Comb, Lower8602--01 ~ ; ALL |
24811-31F00 |
US $41.62 |
||
|
25031M
|
25031M
24811-01F00
Housing-Meter Comb, Lower
8308--01 ~ 8602--01; ALL |
24811-01F00 |
— | ||
|
25031M
|
25031M
24811-31F00 Housing-Meter Comb, Lower8602--01 ~ ; ALL |
24811-31F00 |
US $41.62 |
||
|
25038
|
25038
25038-01F00 Buzzer Assy8308--01 ~ ; ALL; ﾁﾔｲﾑ |
25038-01F00 |
US $33.26 |
||
|
25050
|
25050
25050-01F00 Shaft Assy-Flexible, Speedometer8308--01 ~ 8602--01; 7CA18S,FJ20# CA18E (CA18ET.F5)-RXG; L=1500 |
25050-01F00 |
US $102.38 |
||
|
25050
|
25050
2505031F00 Shaft Assy-Flexible, Speedometer8602--01 ~ ; MT |
2505031F00 |
US $102.38 |
||
|
25050
|
25050
25052-01F00 Clip-Flexible Shaft8308--01 ~ 8602--01; ALL |
25052-01F00 |
US $4.90 |
||
|
25050
|
25050
25052-01F02
Clip-Flexible Shaft
8308--01 ~ ; ALL |
25052-01F02 |
— | ||
|
25050
|
25050
25052-04F00 Clip-Flexible Shaft8308--01 ~ 8602--01; ALL |
25052-04F00 |
US $4.90 |
||
|
25050
|
25050
25052-01F01
Clip-Flexible Shaft
8308--01 ~ 8602--01; ALL |
25052-01F01 |
— | ||
|
25050B
|
25050B
25052-01F00 Clip-Flexible Shaft8308--01 ~ 8602--01; ALL |
25052-01F00 |
US $4.90 |
||
|
25050B
|
25050B
25052-01F02
Clip-Flexible Shaft
8308--01 ~ ; ALL |
25052-01F02 |
— | ||
|
25050B
|
25050B
25052-04F00 Clip-Flexible Shaft8308--01 ~ 8602--01; ALL |
25052-04F00 |
US $4.90 |
||
|
25050C
|
25050C
25052-01F01
Clip-Flexible Shaft
8308--01 ~ 8602--01; ALL |
25052-01F01 |
— | ||
|
25056
|
25056
25056-01F00 Cable Assy-Trip Reset8308--01 ~ ; ALL |
25056-01F00 |
US $24.91 |
||
|
68435
|
68435
24892-01F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL |
24892-01F00 |
US $11.23 |
||
|
68435
|
68435
24892-31F00
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8602--01 ~ ; ALL |
24892-31F00 |
— | ||
|
68435
|
68435
25021-31F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; ALL; LHﾖｳ |
25021-31F00 |
US $18.72 |
||
|
68435
|
68435
25021-31F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; CA18S; RHﾖｳ |
25021-31F10 |
US $18.72 |
||
|
68435
|
68435
25046-01F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL; LHﾖｳ |
25046-01F00 |
US $18.72 |
||
|
68435
|
68435
25046-01F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL; RHﾖｳ |
25046-01F10 |
US $18.72 |
||
|
68435
|
68435
25026-31F00
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8602--01 ~ ; ALL; (G) |
25026-31F00 |
— | ||
|
68435
|
68435
25026-31F01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; ALL; (K) |
25026-31F01 |
US $51.70 |
||
|
68435
|
68435
25026-31F02
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8602--01 ~ ; ALL; (B) |
25026-31F02 |
— | ||
|
68435
|
68435
25041-01F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; CA18S |
25041-01F10 |
US $51.70 |
||
|
68435M
|
68435M
25021-31F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; ALL; LHﾖｳ |
25021-31F00 |
US $18.72 |
||
|
68435M
|
68435M
25021-31F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; CA18S; RHﾖｳ |
25021-31F10 |
US $18.72 |
||
|
68435M
|
68435M
25046-01F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL; LHﾖｳ |
25046-01F00 |
US $18.72 |
||
|
68435M
|
68435M
25046-01F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL; RHﾖｳ |
25046-01F10 |
US $18.72 |
||
|
68435M
|
68435M
25021-31F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; ALL; LHﾖｳ |
25021-31F00 |
US $18.72 |
||
|
68435M
|
68435M
25021-31F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; CA18S; RHﾖｳ |
25021-31F10 |
US $18.72 |
||
|
68435M
|
68435M
25046-01F00 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL; LHﾖｳ |
25046-01F00 |
US $18.72 |
||
|
68435M
|
68435M
25046-01F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; ALL; RHﾖｳ |
25046-01F10 |
US $18.72 |
||
|
68435N
|
68435N
25026-31F00
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8602--01 ~ ; ALL; (G) |
25026-31F00 |
— | ||
|
68435N
|
68435N
25026-31F01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8602--01 ~ ; ALL; (K) |
25026-31F01 |
US $51.70 |
||
|
68435N
|
68435N
25026-31F02
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8602--01 ~ ; ALL; (B) |
25026-31F02 |
— | ||
|
68435N
|
68435N
25041-01F10 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ8308--01 ~ 8602--01; CA18S |
25041-01F10 |
US $51.70 |
||
|
68437M
|
68437M
24897-01F01 ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾀ-ﾝ ｼｸﾞﾅﾙ8308--01 ~ 8602--01; ALL |
24897-01F01 |
US $6.19 |
||
|
68437M
|
68437M
24897-31F00 Lens-Warning Turn Signal8602--01 ~ ; ALL |
24897-31F00 |
US $5.18 |
||
|
68437N
|
68437N
24882-31F00
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾋﾞ-ﾑ
8602--01 ~ ; ALL |
24882-31F00 |
— | ||
|
68437N
|
68437N
24892-01F01
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾋﾞ-ﾑ
8308--01 ~ 8602--01; ALL |
24892-01F01 |
— | ||
