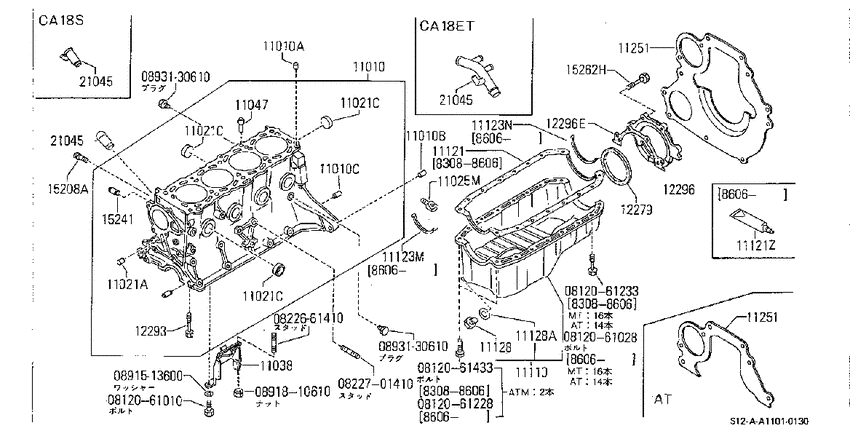

Cylinder - block & ｵｲﾙﾊﾟﾝ (1983-08-01 ~ ; CA18S+CA18ET) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0812061028
|
0812061028
08120-61028
Bolt-hexagon
|
08120-61028 |
— | ||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061233
|
0812061233
0812061233 Bolt-hexagon |
0812061233 |
US $0.56 |
||
|
0812061433
|
0812061433
08120-61433
Bolt-hexagon
|
08120-61433 |
— | ||
|
0822661410
|
0822661410
0822661410 STUD |
0822661410 |
from US $0.63 |
||
|
0822701410
|
0822701410
08227-01410
ｽﾀﾂﾄﾞ
|
08227-01410 |
— | ||
|
0891513600
|
0891513600
08915-13600
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13600 |
— | ||
|
0891810610
|
0891810610
08918-10610 NUTHEX |
08918-10610 |
US $0.50 |
||
|
0893130610
|
0893130610
08931-30610
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
08931-30610 |
— | ||
|
0893130610
|
0893130610
08931-30610
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
08931-30610 |
— | ||
|
11010
|
11010
11010-01E91 BLOCK ASSY-CYLINDER8308--01 ~ 8602--01; CA18# |
11010-01E91 |
US $3,444 |
||
|
11010
|
11010
11010-01E93 BLOCK ASSY-CYLINDER8602--01 ~ ; CA18S+CA18ET |
11010-01E93 |
US $1,526 |
||
|
11010
|
11010
1105316A00
Dowel-Block To Head
8404--01 ~ 8602--01; CA18# |
1105316A00 |
— | ||
|
11010
|
11010
1105373400 Dowel-Block To Head8308--01 ~ 8602--01; CA18# |
1105373400 |
US $3.06 |
||
|
11010
|
11010
1102221000 Dowel-Block To Transmission8308--01 ~ 8602--01; CA18# |
1102221000 |
from US $0.59 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump8308--01 ~ 8602--01; CA18# |
1104673402 |
from US $0.48 |
||
|
11010A
|
11010A
1105316A00
Dowel-Block To Head
8404--01 ~ 8602--01; CA18# |
1105316A00 |
— | ||
|
11010A
|
11010A
1105373400 Dowel-Block To Head8308--01 ~ 8602--01; CA18# |
1105373400 |
US $3.06 |
||
|
11010B
|
11010B
1102221000 Dowel-Block To Transmission8308--01 ~ 8602--01; CA18# |
1102221000 |
from US $0.59 |
||
|
11010C
|
11010C
1104673402 Dowel-Water Pump8308--01 ~ 8602--01; CA18# |
1104673402 |
from US $0.48 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8308--01 ~ 8602--01; CA18# |
11024K0100 |
from US $0.52 |
||
|
11021C
|
11021C
11021-D0100
Plug-Welch
8308--01 ~ 8602--01; CA18# |
11021-D0100 |
— | ||
| replacement | |||||
|
11021C
|
11021C
009331301A Plug-Welch8308--01 ~ 8602--01; CA18# |
009331301A |
from US $1.13 |
||
|
11021C
|
11021C
11021-D0100
Plug-Welch
8308--01 ~ 8602--01; CA18# |
11021-D0100 |
— | ||
| replacement | |||||
|
11021C
|
11021C
009331301A Plug-Welch8308--01 ~ 8602--01; CA18# |
009331301A |
from US $1.13 |
||
|
11021C
|
11021C
11021-D0100
Plug-Welch
8308--01 ~ 8602--01; CA18# |
11021-D0100 |
— | ||
| replacement | |||||
|
11021C
|
11021C
009331301A Plug-Welch8308--01 ~ 8602--01; CA18# |
009331301A |
from US $1.13 |
||
|
11025M
|
11025M
25071-V0700 Connector8308--01 ~ 8602--01; CA18S+CA18E+(CA18ET.RL) |
25071-V0700 |
US $15.84 |
||
|
11038
|
11038
11038-D0101 Plate-Baffle, Crank Case8308--01 ~ 8602--01; CA18# |
11038-D0101 |
US $18 |
||
|
11047
|
11047
11047-21000 Jet-Oil, Cylinder Head8308--01 ~ 8602--01; CA18# |
11047-21000 |
US $1.52 |
||
|
11110
|
11110
11110-01F00 Pan Assy-Oil8606--01 ~ ; CA18S; ｴｷﾀｲ ｶﾞｽｹﾂﾄ ﾖｳ |
11110-01F00 |
US $241.92 |
||
|
11110
|
11110
11110-01F25 Pan Assy-Oil8308--01 ~ 8606--01; CA18S; ｻ-ﾋﾞｽ ﾖｳ |
11110-01F25 |
US $230.40 |
||
|
11110
|
11110
11110-W4401 Pan Assy-Oil8308--01 ~ 8606--01; CA18S |
11110-W4401 |
US $218.88 |
||
|
11121
|
11121
11121W4400 Gasket-Oil Pan8308--01 ~ 8602--01; CA18# |
11121W4400 |
US $24.62 |
||
|
11121
|
11121
KP510-00150 Gasket-Liquid8606--01 ~ ; CA18S,CA18ET; [K504] |
KP510-00150 |
US $29.51 |
||
|
11121Z
|
11121Z
KP510-00150 Gasket-Liquid8606--01 ~ ; CA18S,CA18ET; [K504] |
KP510-00150 |
US $29.51 |
||
|
11123N
|
11123N
11121-01F15
Seal-Oil Pan, Rear
8606--01 ~ ; CA18S,CA18ET |
11121-01F15 |
— | ||
| replacement | |||||
|
11123N
|
11123N
111210C410 Seal-Oil Pan, Rear8606--01 ~ ; CA18S,CA18ET |
111210C410 |
from US $5.44 |
||
|
11128
|
11128
11128-01M00 Plug-Drain8308--01 ~ 8602--01; CA18# |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain8308--01 ~ 8602--01; CA18# |
1112801M0B |
from US $2.28 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug8308--01 ~ 8602--01; CA18# |
1102601M02 |
from US $0.81 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug8308--01 ~ 8602--01; CA18# |
1102601M02 |
from US $0.81 |
||
|
11251
|
11251
30411V5500 Plate-Engine, Rear8412--01 ~ 8602--01; CA18#.MT |
30411V5500 |
US $48.38 |
||
|
11251
|
11251
30411-W4403 Plate-Engine, Rear8308--01 ~ 8412--01; CA18#.MT |
30411-W4403 |
US $70.13 |
||
|
11251
|
11251
30411V5500 Plate-Engine, Rear8412--01 ~ 8602--01; CA18#.MT |
30411V5500 |
US $48.38 |
||
|
11251
|
11251
30411-W4403 Plate-Engine, Rear8308--01 ~ 8412--01; CA18#.MT |
30411-W4403 |
US $70.13 |
||
|
12279
|
12279
12279-D0100 Seal-Oil, Crankshaft Rear8308--01 ~ 8602--01; CA18# |
12279-D0100 |
US $28.94 |
||
| replacement | |||||
|
12279
|
12279
12279AD205 Seal-Oil, Crankshaft Rear8308--01 ~ 8602--01; CA18# |
12279AD205 |
from US $17.71 |
||
|
12279
|
12279
13510-D0100
Seal-Oil, Crankshaft Front
8308--01 ~ 8602--01; CA18# |
13510-D0100 |
— | ||
| replacement | |||||
|
12279
|
12279
1351088G00 Seal-Oil, Crankshaft Front8308--01 ~ 8602--01; CA18# |
1351088G00 |
US $5.26 |
||
|
12293
|
12293
12293-D0100 Bolt-Main Bearing Cap8308--01 ~ 8602--01; CA18# |
12293-D0100 |
US $2.91 |
||
|
12296
|
12296
12297-D0100
Retainer-Oil Seal, Rear
8308--01 ~ 8602--01; CA18# |
12297-D0100 |
— | ||
| replacement | |||||
|
12296
|
12296
12298-D5700 Gasket-Retainer8308--01 ~ 8602--01; CA18# |
12298-D5700 |
US $12.20 |
||
|
12296
|
12296
12298-D0100 Gasket-Retainer8308--01 ~ 8602--01; CA18# |
12298-D0100 |
US $3.31 |
||
|
12296E
|
12296E
12298-D0100 Gasket-Retainer8308--01 ~ 8602--01; CA18# |
12298-D0100 |
US $3.31 |
||
|
15208A
|
15208A
15213-21001 Stud-Oil Filter8308--01 ~ 8602--01; CA18# |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15208A
|
15208A
15213-W040A Stud-oil filter8308--01 ~ 8602--01; CA18# |
15213-W040A |
US $5.81 |
||
|
15241
|
15241
15241-01M00 Valve-Oil Pressure Regulator8308--01 ~ 8602--01; CA18# |
15241-01M00 |
US $8.06 |
||
| replacement | |||||
|
15241
|
15241
1524101M0A Valve-Oil Pressure Regulator8308--01 ~ 8602--01; CA18# |
1524101M0A |
US $8.06 |
||
|
15262H
|
15262H
11035-01E00 BOLT8602--01 ~ ; CA18S+CA18ET |
11035-01E00 |
US $7.78 |
||
|
15262H
|
15262H
12299-D0100 Bolt8308--01 ~ 8602--01; CA18# |
12299-D0100 |
US $2.45 |
||
|
21045
|
21045
13049-49L00 Pipe-Suction, Water Pump8602--01 ~ ; CA18S |
13049-49L00 |
US $46.66 |
||
|
21045
|
21045
13049-W4403 Pipe-Suction, Water Pump8308--01 ~ 8311--01; CA18S |
13049-W4403 |
US $57.17 |
||
|
21045
|
21045
13049-W4405 Pipe-Suction, Water Pump8311--01 ~ 8602--01; CA18S |
13049-W4405 |
US $54.14 |
||
|
21045
|
21045
13049-49L00 Pipe-Suction, Water Pump8602--01 ~ ; CA18S |
13049-49L00 |
US $46.66 |
||
|
21045
|
21045
13049-W4403 Pipe-Suction, Water Pump8308--01 ~ 8311--01; CA18S |
13049-W4403 |
US $57.17 |
||
|
21045
|
21045
13049-W4405 Pipe-Suction, Water Pump8311--01 ~ 8602--01; CA18S |
13049-W4405 |
US $54.14 |
||
|
21045
|
21045
13049-49L00 Pipe-Suction, Water Pump8602--01 ~ ; CA18S |
13049-49L00 |
US $46.66 |
||
|
21045
|
21045
13049-W4403 Pipe-Suction, Water Pump8308--01 ~ 8311--01; CA18S |
13049-W4403 |
US $57.17 |
||
|
21045
|
21045
13049-W4405 Pipe-Suction, Water Pump8311--01 ~ 8602--01; CA18S |
13049-W4405 |
US $54.14 |
||
