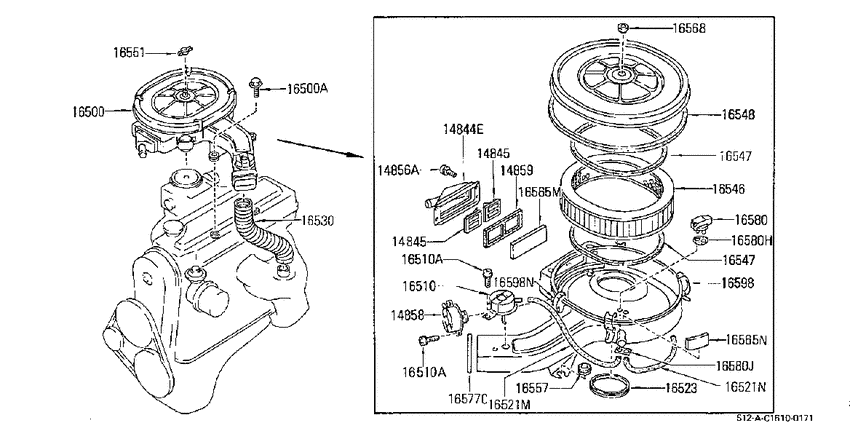

ｴｱ ｸﾘ-ﾅ- & ｴｱ ﾌﾛ- ﾒ-ﾀ- (1983-08-01 ~ 1986-02-01; CA18S) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14844E
|
14844E
14856-W4400 Case-Air Induce Valve8308--01 ~ 8602--01; CA18S |
14856-W4400 |
US $18.58 |
||
|
14845
|
14845
14845-W7000
Valve Assy-Air Induce
8308--01 ~ 8602--01; CA18S |
14845-W7000 |
— | ||
| replacement | |||||
|
14845
|
14845
14845-H9901
Valve Assy-Air Induce
8308--01 ~ 8602--01; CA18S |
14845-H9901 |
— | ||
|
14845
|
14845
14845-W7000
Valve Assy-Air Induce
8308--01 ~ 8602--01; CA18S |
14845-W7000 |
— | ||
| replacement | |||||
|
14845
|
14845
14845-H9901
Valve Assy-Air Induce
8308--01 ~ 8602--01; CA18S |
14845-H9901 |
— | ||
|
14856A
|
14856A
16516-W0400 Bolt8308--01 ~ 8602--01; CA18S |
16516-W0400 |
US $0.86 |
||
|
14858
|
14858
14828-D0100 Valve Assy-Control, Air Induce8308--01 ~ 8602--01; CA18S |
14828-D0100 |
US $113.04 |
||
|
14859
|
14859
14859-14L00 Packing-Relief Valve8308--01 ~ 8602--01; CA18S |
14859-14L00 |
US $6.91 |
||
|
16500
|
16500
16500-01F00
Air Cleaner
8308--01 ~ 8602--01; CA18S |
16500-01F00 |
— | ||
|
16500
|
16500
16500-31F00
Air Cleaner
8602--01 ~ ; CA18S |
16500-31F00 |
— | ||
|
16500
|
16500
01121-00871 BOLT8308--01 ~ ; CA18S |
01121-00871 |
US $2.21 |
||
|
16500A
|
16500A
01121-00871 BOLT8308--01 ~ ; CA18S |
01121-00871 |
US $2.21 |
||
|
16510
|
16510
16510-D0101 Motor Assy-Vacuum8308--01 ~ ; CA18S |
16510-D0101 |
US $71.57 |
||
|
16510
|
16510
16516-G2100 Bolt8308--01 ~ ; CA18S |
16516-G2100 |
US $0.86 |
||
|
16510A
|
16510A
16516-G2100 Bolt8308--01 ~ ; CA18S |
16516-G2100 |
US $0.86 |
||
|
16510A
|
16510A
16516-G2100 Bolt8308--01 ~ ; CA18S |
16516-G2100 |
US $0.86 |
||
|
16521M
|
16521M
02187-23901 TUBE-VACUUM MOTOR TO SENSOR8308--01 ~ ; CA18S; L=390 S/#B2320-Y4001 |
02187-23901 |
US $8.50 |
||
|
16521N
|
16521N
22323-W4401 Tube-Vacuum8602--01 ~ ; CA18S; L=410 |
22323-W4401 |
US $6.34 |
||
|
16521N
|
16521N
22323-W4402
Hose-Vacuum
8308--01 ~ 8602--01; CA18S; L=490 S/#B2320-Y4001 |
22323-W4402 |
— | ||
|
16523
|
16523
16523-D1100 Insulator8308--01 ~ ; CA18S |
16523-D1100 |
US $6.05 |
||
| replacement | |||||
|
16523
|
16523
16523-24G00 Insulator-Air Cleaner8308--01 ~ ; CA18S |
16523-24G00 |
from US $9.98 |
||
|
16530
|
16530
16530-D0101
Duct-Air
8308--01 ~ 8602--01; CA18S |
16530-D0101 |
— | ||
|
16530
|
16530
16530-W1100
Duct-Air
8602--01 ~ 8610--01; CA18S |
16530-W1100 |
— | ||
|
16530
|
16530
16530-W1101 Duct-Air8610--01 ~ ; CA18S |
16530-W1101 |
US $34.99 |
||
| replacement | |||||
|
16530
|
16530
A6530-35N40
Duct-air
8610--01 ~ ; CA18S |
A6530-35N40 |
— | ||
|
16546
|
16546
AY120NS008 Element Assy-Air8308--01 ~ ; CA18S |
AY120NS008 |
US $20.98 |
||
|
16547
|
16547
16536-M5600 Packing8308--01 ~ ; CA18S |
16536-M5600 |
US $12.10 |
||
|
16547
|
16547
16536-M5600 Packing8308--01 ~ ; CA18S |
16536-M5600 |
US $12.10 |
||
|
16548
|
16548
16548-04E00 PACKING8308--01 ~ 8602--01; CA18S |
16548-04E00 |
US $4.46 |
||
| replacement | |||||
|
16548
|
16548
16547-62S00
Packing-Air Cleaner
8308--01 ~ 8602--01; CA18S |
16547-62S00 |
— | ||
|
16551
|
16551
16551-W7000
Nut-Wing
8308--01 ~ ; CA18S |
16551-W7000 |
— | ||
| replacement | |||||
|
16551
|
16551
16551W700A Nut-Wing8308--01 ~ ; CA18S |
16551W700A |
from US $4.85 |
||
|
16557
|
16557
16557-D1100 Mounting Rubber8308--01 ~ ; CA18S |
16557-D1100 |
US $5.27 |
||
|
16565M
|
16565M
16858-W1100 Filter Assy8308--01 ~ 8602--01; CA18S |
16858-W1100 |
US $9.65 |
||
|
16565N
|
16565N
16565-46700 Filter8308--01 ~ 8602--01; CA18S |
16565-46700 |
US $4.18 |
||
|
16565N
|
16565N
16565-V5500 Filter8602--01 ~ ; CA18S |
16565-V5500 |
US $2.45 |
||
|
16568
|
16568
16568-W7000 Packing8308--01 ~ ; CA18S |
16568-W7000 |
US $3.06 |
||
|
16577C
|
16577C
16515-D2100
Gasket
8308--01 ~ ; CA18S |
16515-D2100 |
— | ||
| replacements | |||||
|
16577C
|
16577C
16515-D2700
Packing
8308--01 ~ ; CA18S |
16515-D2700 |
— | ||
|
16577C
|
16577C
16515-03J00 Packing8308--01 ~ ; CA18S |
16515-03J00 |
US $9.56 |
||
|
16580
|
16580
16580-01B01 Intake Air Temperature Sensor8602--01 ~ ; CA18S |
16580-01B01 |
US $50.04 |
||
|
16580
|
16580
16580-H3900
Intake Air Temperature Sensor
8308--01 ~ 8602--01; CA18S |
16580-H3900 |
— | ||
|
16580
|
16580
16529-B9800 Grommet8308--01 ~ ; CA18S |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper8308--01 ~ ; CA18S |
16582-H3901 |
US $8.87 |
||
|
16580H
|
16580H
16529-B9800 Grommet8308--01 ~ ; CA18S |
16529-B9800 |
US $1.67 |
||
|
16580J
|
16580J
16582-H3901 Stopper8308--01 ~ ; CA18S |
16582-H3901 |
US $8.87 |
||
|
16598
|
16598
16598-12G00 Clip8602--01 ~ ; CA18S |
16598-12G00 |
US $2.74 |
||
|
16598
|
16598
16598-73600 Clip8308--01 ~ 8602--01; CA18S |
16598-73600 |
US $2.45 |
||
|
16598
|
16598
16598-M7000 Clip8308--01 ~ 8602--01; CA18S |
16598-M7000 |
US $3.02 |
||
|
16598N
|
16598N
16598-M7000 Clip8308--01 ~ 8602--01; CA18S |
16598-M7000 |
US $3.02 |
||
