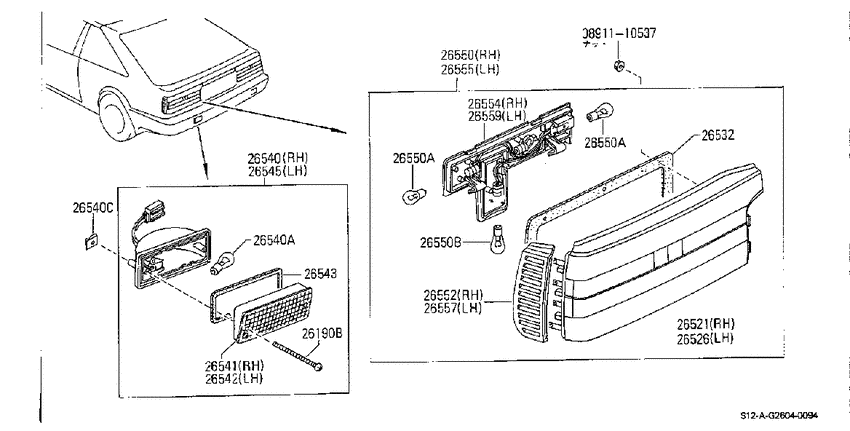

Rear combination lamp (1983-08-01 ~ 1986-02-01; GAZELLE; HB) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
from US $0.54 |
||
|
26190B
|
26190B
01451-00241 SCREW8308--01 ~ 8602--01; ALL |
01451-00241 |
US $1.68 |
||
|
26521
|
26521
26520-31F00
Lens-Combination Lamp, Rh
8602--01 ~ 8708--01; HB; KOITO[B205] |
26520-31F00 |
— | ||
|
26521
|
26521
26520-31F01
Lens-Combination Lamp, Rh
8708--01 ~ ; HB; [B205] |
26520-31F01 |
— | ||
|
26521
|
26521
26554-15F01 Lens-Combination Lamp, Rh8308--01 ~ 8602--01; HB; KOITO ｼﾙﾋﾞｱ[B205] |
26554-15F01 |
US $252 |
||
|
26521
|
26521
26554-15F10
Lens-Combination Lamp, Rh
8308--01 ~ 8602--01; HB; KOITO ｶﾞｾﾞ-ﾙ[B205] |
26554-15F10 |
— | ||
|
26526
|
26526
26525-31F00 Lens-Combination Lamp, Lh8602--01 ~ 8708--01; HB; KOITO[B205] |
26525-31F00 |
US $319.20 |
||
|
26526
|
26526
26525-31F01
Lens-Combination Lamp, Lh
8708--01 ~ ; HB; [B205] |
26525-31F01 |
— | ||
|
26526
|
26526
26559-15F01 Lens-Combination Lamp, Lh8308--01 ~ 8602--01; HB; KOITO ｼﾙﾋﾞｱ[B205] |
26559-15F01 |
US $252 |
||
|
26526
|
26526
26559-15F10
Lens-Combination Lamp, Lh
8308--01 ~ 8602--01; HB; KOITO ｶﾞｾﾞ-ﾙ[B205] |
26559-15F10 |
— | ||
|
26532
|
26532
26553-15F01 Packing-Sheet, Rh8308--01 ~ 8602--01; HB; RH&LHｼﾖｳ,KOITO[B205] |
26553-15F01 |
US $15.54 |
||
|
26532
|
26532
26553-31F00 Packing-Sheet, Rh8602--01 ~ ; HB; RH&LHｼﾖｳ,KOITO[B205] |
26553-31F00 |
US $6.30 |
||
|
26540
|
26540
26540-01F00 Lamp Assy-Reverse, Rh8308--01 ~ 8602--01; CA18S,CA18E; [B113] |
26540-01F00 |
US $54.88 |
||
|
26540
|
26540
AY08000023
Bulb
8308--01 ~ 8602--01; ALL |
AY08000023 |
— | ||
| replacement | |||||
|
26540
|
26540
AY080-00087 Valve8308--01 ~ 8602--01; ALL |
AY080-00087 |
US $1.41 |
||
|
26540
|
26540
68965-89900 Nut8308--01 ~ 8602--01; ALL |
68965-89900 |
US $1.68 |
||
|
26540A
|
26540A
AY08000023
Bulb
8308--01 ~ 8602--01; ALL |
AY08000023 |
— | ||
| replacement | |||||
|
26540A
|
26540A
AY080-00087 Valve8308--01 ~ 8602--01; ALL |
AY080-00087 |
US $1.41 |
||
|
26540C
|
26540C
68965-89900 Nut8308--01 ~ 8602--01; ALL |
68965-89900 |
US $1.68 |
||
|
26541
|
26541
26541-04F00 Lens-Reverse Lamp, Rh8308--01 ~ 8602--01; ALL; [B113] |
26541-04F00 |
US $16.80 |
||
|
26542
|
26542
26546-04F00 Lens-Reverse Lamp, Lh8308--01 ~ 8602--01; ALL; [B113] |
26546-04F00 |
US $16.80 |
||
|
26543
|
26543
26583-03A01 Packing-Lens, Rh8308--01 ~ 8602--01; ALL; [B113] |
26583-03A01 |
US $7.98 |
||
|
26545
|
26545
26545-01F00 Lamp Assy-Reverse, Lh8308--01 ~ 8602--01; CA18S,CA18E; [B113] |
26545-01F00 |
US $54.88 |
||
|
26550
|
26550
26550-15F01 Lamp Assy-Rear Combination, Rh8308--01 ~ 8602--01; HB; ｼﾙﾋﾞｱ[B205] |
26550-15F01 |
US $393.40 |
||
|
26550
|
26550
26550-15F10 Lamp Assy-Rear Combination, Rh8308--01 ~ 8602--01; HB; ｶﾞｾﾞ-ﾙ[B205] |
26550-15F10 |
US $393.40 |
||
|
26550
|
26550
26550-31F00 Lamp Assy-Rear Combination, Rh8602--01 ~ 8708--01; HB; KOITO[B205] |
26550-31F00 |
US $448 |
||
|
26550
|
26550
26550-31F01 Lamp Assy-Rear Combination, Rh8708--01 ~ ; HB; [B205] |
26550-31F01 |
US $448 |
||
|
26550
|
26550
26717-89913
Bulb
8308--01 ~ 8602--01; HB; 12V-21/5W |
26717-89913 |
— | ||
|
26550
|
26550
AY08000009 Bulb8308--01 ~ 8602--01; HB; 12V-21/5W |
AY08000009 |
US $1.61 |
||
| replacement | |||||
|
26550
|
26550
AY080-00085 BULB8308--01 ~ 8602--01; HB; 12V-21/5W |
AY080-00085 |
US $1.61 |
||
|
26550
|
26550
AY08000023
Bulb
8308--01 ~ 8602--01; HB; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26550
|
26550
AY080-00087 Valve8308--01 ~ 8602--01; HB; 12V-21W |
AY080-00087 |
US $1.41 |
||
|
26550A
|
26550A
26717-89913
Bulb
8308--01 ~ 8602--01; HB; 12V-21/5W |
26717-89913 |
— | ||
|
26550A
|
26550A
AY08000009 Bulb8308--01 ~ 8602--01; HB; 12V-21/5W |
AY08000009 |
US $1.61 |
||
| replacement | |||||
|
26550A
|
26550A
AY080-00085 BULB8308--01 ~ 8602--01; HB; 12V-21/5W |
AY080-00085 |
US $1.61 |
||
|
26550A
|
26550A
26717-89913
Bulb
8308--01 ~ 8602--01; HB; 12V-21/5W |
26717-89913 |
— | ||
|
26550A
|
26550A
AY08000009 Bulb8308--01 ~ 8602--01; HB; 12V-21/5W |
AY08000009 |
US $1.61 |
||
| replacement | |||||
|
26550A
|
26550A
AY080-00085 BULB8308--01 ~ 8602--01; HB; 12V-21/5W |
AY080-00085 |
US $1.61 |
||
|
26550B
|
26550B
AY08000023
Bulb
8308--01 ~ 8602--01; HB; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26550B
|
26550B
AY080-00087 Valve8308--01 ~ 8602--01; HB; 12V-21W |
AY080-00087 |
US $1.41 |
||
|
26552
|
26552
26552-15F01 Rim-Combination Lamp, Rh8308--01 ~ 8602--01; HB; KOITO[B205] |
26552-15F01 |
US $51.80 |
||
|
26552
|
26552
26552-31F00 Moulding-Rear Combination Lamp, Rh8602--01 ~ ; HB; [B205] |
26552-31F00 |
US $18.62 |
||
|
26554
|
26554
26551-15F01 Body Assy-Combination Lamp, Rh8308--01 ~ 8602--01; HB; KOITO[B205] |
26551-15F01 |
US $63.28 |
||
|
26554
|
26554
26551-31F00 Body Assy-Combination Lamp, Rh8602--01 ~ ; HB; KOITO[B205] |
26551-31F00 |
US $68.04 |
||
|
26555
|
26555
26555-15F01 Lamp Assy-Rear Combination, Lh8308--01 ~ 8602--01; HB; ｼﾙﾋﾞｱ[B205] |
26555-15F01 |
US $393.40 |
||
|
26555
|
26555
26555-15F10 Lamp Assy-Rear Combination, Lh8308--01 ~ 8602--01; HB; ｶﾞｾﾞ-ﾙ[B205] |
26555-15F10 |
US $393.40 |
||
|
26555
|
26555
26555-31F00 Lamp Assy-Rear Combination, Lh8602--01 ~ 8708--01; HB; KOITO[B205] |
26555-31F00 |
US $448 |
||
|
26555
|
26555
26555-31F01 Lamp Assy-Rear Combination, Lh8708--01 ~ ; HB; [B205] |
26555-31F01 |
US $448 |
||
|
26557
|
26557
26557-15F01 Rim-Combination Lamp, Lh8308--01 ~ 8602--01; HB; KOITO[B205] |
26557-15F01 |
US $51.80 |
||
|
26557
|
26557
26557-31F00 Moulding-Rear Combination Lamp, Lh8602--01 ~ ; HB; [B205] |
26557-31F00 |
US $18.62 |
||
|
26559
|
26559
26556-15F01
Body Assy-Combination Lamp, Lh
8308--01 ~ 8602--01; HB; KOITO |
26556-15F01 |
— | ||
|
26559
|
26559
26556-31F00 Body Assy-Combination Lamp, Lh8602--01 ~ ; HB; KOITO[B205] |
26556-31F00 |
US $27.58 |
||
