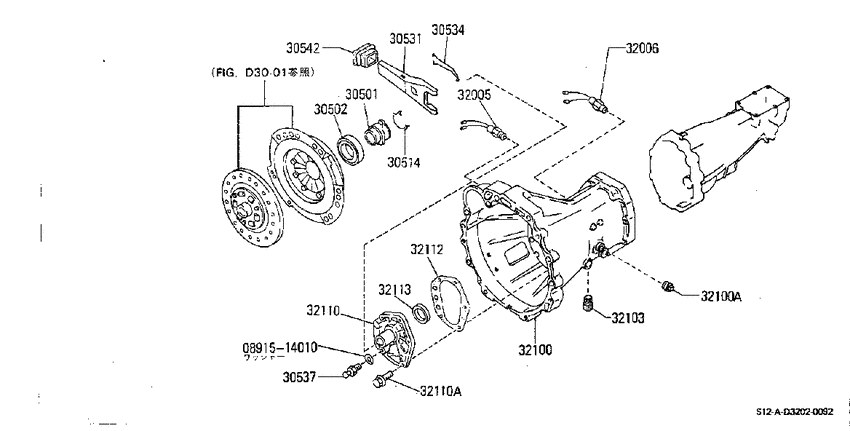

Transmission case (1986-02-01 ~ ; ケース; FS5W71C) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F5
- grade
- RX
- body
- HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30501
|
30501
30501-B6000 Sleeve-Clutch Release8308--01 ~ 8602--01; CA18S,CA18E.MT |
30501-B6000 |
US $25.92 |
||
| replacement | |||||
|
30501
|
30501
30501B6064 Sleeve-Clutch Release8308--01 ~ 8602--01; CA18S,CA18E.MT |
30501B6064 |
from US $24.26 |
||
|
30502
|
30502
3050221000
Bearing-Clutch Release
8308--01 ~ 8508--01; MT; [B106] |
3050221000 |
— | ||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release8308--01 ~ 8508--01; MT; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing8308--01 ~ ; MT |
3051414600 |
from US $3.07 |
||
|
30531
|
30531
30531-P0151 Lever-Withdrawal, Clutch8308--01 ~ 8602--01; (CA18#,FJ20).MT |
30531-P0151 |
from US $31.01 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever8308--01 ~ ; MT |
30534E9000 |
from US $1.74 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER8809--01 ~ ; (CA18#,FJ20#).MT |
3053703E00 |
US $5.81 |
||
|
30537
|
30537
30537-21010 Pin-Ball, Withdrawal Lever8308--01 ~ 8809--01; MT |
30537-21010 |
US $4.42 |
||
|
30542
|
30542
30542E9000 Cover-Dust, Withdrawal Lever8305--01 ~ 8602--01; (CA18#,FJ20).MT |
30542E9000 |
from US $6.51 |
||
|
32005
|
32005
32005-K1005
Switch Assy-Reverse Lamp
8308--01 ~ ; MT |
32005-K1005 |
— | ||
| replacement | |||||
|
32005
|
32005
32005K106A Switch Assy-Reverse Lamp8308--01 ~ ; MT |
32005K106A |
from US $22.44 |
||
|
32006
|
32006
32006-K2005 Switch Assy-Top8308--01 ~ 8602--01; CA18#.MT |
32006-K2005 |
US $30.67 |
||
|
32006
|
32006
32006-K2405 Switch Assy-Neutral Position8308--01 ~ 8602--01; (CA18S,CA18E,FJ20#).MT |
32006-K2405 |
US $30.10 |
||
|
32006
|
32006
32006-K2005 Switch Assy-Top8308--01 ~ 8602--01; CA18#.MT |
32006-K2005 |
US $30.67 |
||
|
32100
|
32100
32101-31F02 Case Assy-Transmission8509--01 ~ 8602--01; CA18#.MT |
32101-31F02 |
US $421.97 |
||
| replacement | |||||
|
32100
|
32100
32101-35F00 Case Assy-Transmission8509--01 ~ 8602--01; CA18#.MT |
32101-35F00 |
US $413.47 |
||
|
32100
|
32100
32101-V5410
Case Assy-Transmission
8308--01 ~ 8407--01; CA18#.MT |
32101-V5410 |
— | ||
|
32100
|
32100
32101-V5415 Case Assy-Transmission8407--01 ~ 8508--01; CA18#.MT |
32101-V5415 |
US $421.97 |
||
| replacement | |||||
|
32100
|
32100
32101-35F00 Case Assy-Transmission8407--01 ~ 8508--01; CA18#.MT |
32101-35F00 |
US $413.47 |
||
|
32100
|
32100
0164200021
PLUG-THREAD
8602--01 ~ ; MT |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD8602--01 ~ ; MT |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
8602--01 ~ ; MT |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD8602--01 ~ ; MT |
33312-33G0B |
US $4.85 |
||
|
32103
|
32103
32103U8400
Plug-Drain
8308--01 ~ ; MT |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain8308--01 ~ ; MT |
32103-U840B |
US $7.35 |
||
|
32110
|
32110
32111E9800 Cover Assy-Front8308--01 ~ 8407--01; CA18#.MT |
32111E9800 |
US $46.15 |
||
|
32110
|
32110
32111-E9801 Cover Assy-Front8407--01 ~ 8602--01; CA18#.MT |
32111-E9801 |
US $43.63 |
||
|
32110
|
32110
32111E9803
Cover Assy-Front
8706--01 ~ ; MT |
32111E9803 |
— | ||
| replacement | |||||
|
32110
|
32110
3211191P00 Cover Assy-Front8706--01 ~ ; MT |
3211191P00 |
from US $40.45 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover8506--01 ~ 8602--01; MT |
32135-58S60 |
US $1.73 |
||
|
32110
|
32110
32135-K0500 Bolt-Fixing, Front Cover8308--01 ~ 8506--01; MT |
32135-K0500 |
US $2.45 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover8506--01 ~ 8602--01; MT |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-K0500 Bolt-Fixing, Front Cover8308--01 ~ 8506--01; MT |
32135-K0500 |
US $2.45 |
||
|
32112
|
32112
32112-E9001
Gasket-Front Cover
8308--01 ~ 8407--01; CA18#.MT |
32112-E9001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover8308--01 ~ 8407--01; CA18#.MT |
3211208U01 |
from US $6.49 |
||
|
32112
|
32112
32112-V5001
Gasket-Front Cover
8407--01 ~ 8602--01; CA18#.MT |
32112-V5001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover8407--01 ~ 8602--01; CA18#.MT |
3211208U01 |
from US $6.49 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover8308--01 ~ ; MT |
32114Y4000 |
from US $3.19 |
||
