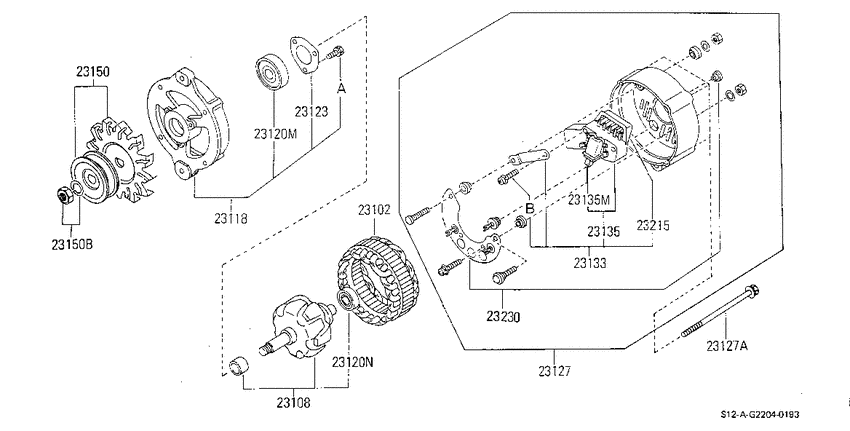

Alternator (1983-08-01 ~ 1986-02-01; 日立; FJ20#) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- FJ20T
- transmission
- F5
- grade
- RSX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23102
|
23102
23102V0801 Stator Assy8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23102V0801 |
US $287.45 |
||
|
23108
|
23108
23108-R2003
Rotor Assy
8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23108-R2003 |
— | ||
|
23118
|
23118
23118-W1705 Cover Assy-Front8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23118-W1705 |
US $156.96 |
||
|
23120M
|
23120M
23120-61502 Bearing-Ball8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23120-61502 |
US $23.18 |
||
|
23120N
|
23120N
23120-R2000 Bearing-Ball8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23120-R2000 |
US $24.91 |
||
|
23123
|
23123
23124-61502 Retainer-Bearing8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23124-61502 |
US $8.35 |
||
|
23127
|
23127
23127-W1607 Cover Assy-Rear8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23127-W1607 |
US $630.12 |
||
|
23127
|
23127
23131-W1700 Bolt-Through8308--01 ~ 8602--01; FJ20#+CA18E; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through8308--01 ~ 8602--01; FJ20#+CA18E; ﾋﾀﾁ |
23131-W1700 |
US $4.42 |
||
|
23133
|
23133
23133-W1606 Holder Assy-Brush8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23133-W1606 |
US $504.10 |
||
|
23135
|
23135
23135-Q4601 Brush-E8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23135-Q4601 |
US $30.24 |
||
|
23135
|
23135
23142-Q4601 Brush Assy8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23142-Q4601 |
US $5.18 |
||
|
23135M
|
23135M
23142-Q4601 Brush Assy8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23142-Q4601 |
US $5.18 |
||
|
23150
|
23150
23150-R2000 Pulley Assy8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23150-R2000 |
US $102.67 |
||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23153-Q4601 |
US $4.18 |
||
|
23215
|
23215
23215-F2500 Regulator Assy-Ic8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ ｻ-ﾋﾞｽ ﾖｳ |
23215-F2500 |
US $228.96 |
||
|
23215
|
23215
23215-Q4602 Regulator Assy-Ic8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23215-Q4602 |
US $321.43 |
||
|
23230
|
23230
23230Q4601 Diode Assy8308--01 ~ 8602--01; FJ20#+CA18#; ﾋﾀﾁ |
23230Q4601 |
US $207.36 |
