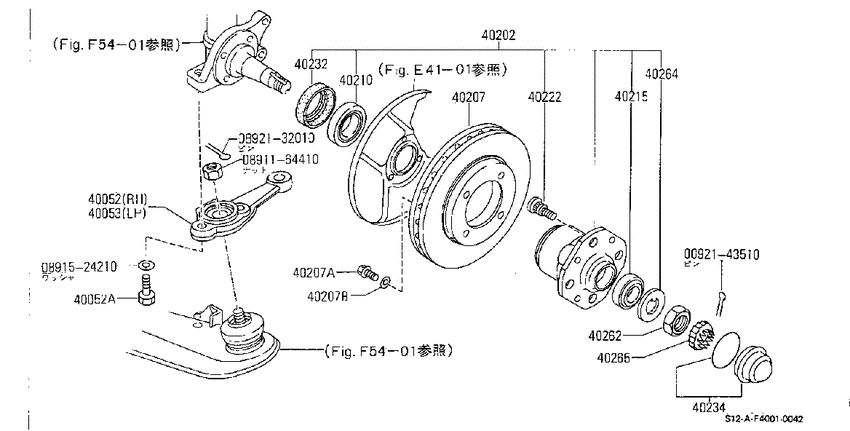

Front axle (1983-08-01 ~ 1986-02-01; FJ20T) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- FJ20T
- transmission
- F5
- grade
- RSX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092143510
|
0092143510
0092143510
ﾋﾟﾝ,ｽﾌﾟﾘﾂﾄ ｺﾂﾀ-
|
0092143510 |
— | ||
|
0891164410
|
0891164410
08911-64410
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64410 |
— | ||
|
0891524210
|
0891524210
08915-24210
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24210 |
— | ||
|
0892132010
|
0892132010
08921-32010
ﾋﾟﾝ,ｽﾌﾟﾘﾂﾄ ｺﾂﾀ-
|
08921-32010 |
— | ||
|
40052
|
40052
40052-W3500
Arm-Knuckle, Rh
8308--01 ~ 8602--01; CA18ET+FJ20#; F/POWER STRG |
40052-W3500 |
— | ||
|
40052
|
40052
40056-21001
Bolt-Knuckle Arm
8308--01 ~ 8602--01; ALL |
40056-21001 |
— | ||
|
40052
|
40052
40056-21002 Bolt-Knuckle Arm8602--01 ~ 8607--01; ALL |
40056-21002 |
US $2.45 |
||
|
40052
|
40052
40056-41L00 Bolt-Knuckle Arm8607--01 ~ ; ALL |
40056-41L00 |
US $32.06 |
||
|
40052A
|
40052A
40056-21001
Bolt-Knuckle Arm
8308--01 ~ 8602--01; ALL |
40056-21001 |
— | ||
|
40052A
|
40052A
40056-21002 Bolt-Knuckle Arm8602--01 ~ 8607--01; ALL |
40056-21002 |
US $2.45 |
||
|
40052A
|
40052A
40056-41L00 Bolt-Knuckle Arm8607--01 ~ ; ALL |
40056-41L00 |
US $32.06 |
||
|
40053
|
40053
40053-W3500 Arm-Knuckle, Lh8308--01 ~ 8602--01; CA18ET+FJ20#; F/POWER STRG |
40053-W3500 |
US $117.50 |
||
|
40202
|
40202
40202-01P90 Hub Assy-Road Wheel, Front Rh8308--01 ~ 8602--01; FJ20T; ｷﾂﾄ |
40202-01P90 |
US $579.14 |
||
|
40202
|
40202
40202-30F90 ﾊﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾛ-ﾄﾞ ﾎｲ-ﾙ ﾌﾛﾝﾄ rh8602--01 ~ ; ALL; ｷﾂﾄ ﾀｲﾌﾟ(AD22V) |
40202-30F90 |
US $286.03 |
||
|
40207
|
40207
40206-03P00 ﾛ-ﾀ-,ﾃﾞｲｽｸ ﾌﾞﾚ-ｷ ﾌﾛﾝﾄ8308--01 ~ 8602--01; FJ20T |
40206-03P00 |
US $290.28 |
||
|
40207
|
40207
40206-W1270
Rotor-Disc Brake, Front
8602--01 ~ ; ALL |
40206-W1270 |
— | ||
|
40207
|
40207
01125-00321 BOLT-ROTOR8308--01 ~ 8602--01; FJ20T |
01125-00321 |
US $2.45 |
||
|
40207
|
40207
0112500461 BOLT-ROTOR8602--01 ~ ; ALL |
0112500461 |
US $2.45 |
||
|
40207
|
40207
01321-00071 WASHER-LOCK,ROTOR8308--01 ~ 8602--01; FJ20T |
01321-00071 |
US $1.73 |
||
|
40207A
|
40207A
01125-00321 BOLT-ROTOR8308--01 ~ 8602--01; FJ20T |
01125-00321 |
US $2.45 |
||
|
40207A
|
40207A
0112500461 BOLT-ROTOR8602--01 ~ ; ALL |
0112500461 |
US $2.45 |
||
|
40207B
|
40207B
01321-00071 WASHER-LOCK,ROTOR8308--01 ~ 8602--01; FJ20T |
01321-00071 |
US $1.73 |
||
|
40210
|
40210
40210A0100 Bearing Assy-Front Wheel8308--01 ~ ; ALL |
40210A0100 |
US $46.80 |
||
|
40215
|
40215
40215A0100 Bearing Assy-Front Wheel8308--01 ~ ; ALL |
40215A0100 |
from US $19.67 |
||
|
40222
|
40222
4022222001 Bolt-Hub8308--01 ~ 8602--01; ALL; F/DISK |
4022222001 |
from US $1.31 |
||
|
40222
|
40222
4322250A00 Bolt-Hub8602--01 ~ ; ALL |
4322250A00 |
from US $3.46 |
||
|
40232
|
40232
40232-30F00 ｼ-ﾙ,ｸﾞﾘ-ｽ ﾌﾛﾝﾄ ﾊﾌﾞ8602--01 ~ ; ALL |
40232-30F00 |
US $12.67 |
||
|
40232
|
40232
40232N7100 Seal-Grease, Front Hub8308--01 ~ 8602--01; ALL |
40232N7100 |
US $8.06 |
||
|
40234
|
40234
40234S0400 Cap-Hub, Front Wheel8308--01 ~ ; ALL |
40234S0400 |
US $5.47 |
||
|
40262
|
40262
40262S0400 Nut-Lock, Front Wheel Bearing8308--01 ~ ; ALL |
40262S0400 |
from US $3.06 |
||
|
40264
|
40264
40264-E4100 Washer-Front Wheel Bearing8308--01 ~ ; ALL |
40264-E4100 |
US $2.91 |
||
|
40265
|
40265
4026468200 Cap-Adjusting8308--01 ~ ; ALL |
4026468200 |
from US $1.67 |
