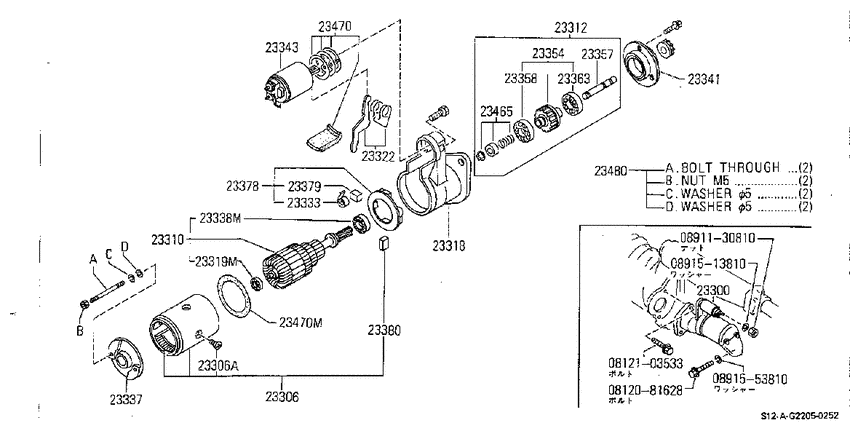

Starter motor (1983-08-01 ~ 1986-02-01; 日立; FJ20#) Diagram Nissan SILVIA/GAZELLE
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- FJ20T
- transmission
- F5
- grade
- RSX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
0812103533
|
0812103533
08121-03533 Bolt-hexagon |
08121-03533 |
US $2.45 |
||
| replacement | |||||
|
0812103533
|
0812103533
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891553810
|
0891553810
08915-53810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-53810 |
— | ||
|
23306
|
23306
23306-H9100 Coil Assy-Field8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23306-H9100 |
US $98.06 |
||
|
23306
|
23306
23305-09500 Screw-Pole Core Set8308--01 ~ 8602--01; CA18#+FJ20#; ﾋﾀﾁ |
23305-09500 |
US $1.11 |
||
|
23306A
|
23306A
23305-09500 Screw-Pole Core Set8308--01 ~ 8602--01; CA18#+FJ20#; ﾋﾀﾁ |
23305-09500 |
US $1.11 |
||
|
23310
|
23310
23310-M4900 Armature Assy8308--01 ~ 8312--01; FJ20#; ﾋﾀﾁ |
23310-M4900 |
US $611.71 |
||
|
23310
|
23310
23310-M4901 Armature Assy8312--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23310-M4901 |
US $516.84 |
||
|
23310
|
23310
23310-U7111
Armature Assy
8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23310-U7111 |
— | ||
|
23312
|
23312
23312-N5912 Pinion Assy8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23312-N5912 |
US $307.27 |
||
|
23312
|
23312
23312-V5301 Pinion Assy8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23312-V5301 |
US $287.45 |
||
|
23318
|
23318
23318-N5902 Case Assy-Gear8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23318-N5902 |
US $54 |
||
|
23318
|
23318
23318-R2010 Case Assy-Gear8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23318-R2010 |
US $167.04 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23319-M4900 |
US $21.46 |
||
|
23319M
|
23319M
23319W1710 Bearing-Gear Case8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23319W1710 |
US $15.98 |
||
|
23322
|
23322
23322-N5900 Lever Set-Shift8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23322-N5900 |
US $6.91 |
||
|
23322
|
23322
23322-N5910 Lever Set-Shift8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23322-N5910 |
US $9.36 |
||
|
23333
|
23333
23333M1510 Spring-Brush8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-M4901 Spring-Brush8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23333-M4901 |
US $8.78 |
||
|
23337
|
23337
23337-M4901 Cover Assy-Rear8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23337-M4901 |
US $11.38 |
||
|
23337
|
23337
23337-N5910 Cover Assy-Rear8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23337-N5910 |
US $33.55 |
||
|
23337
|
23337
23340-M4900 Bolt-Through8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340-U7510 Bolt-Through8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23340-U7510 |
US $4.18 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23338-M4900 |
from US $52.13 |
||
|
23338M
|
23338M
23338W1710 Bearing-Rear Cover8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23338W1710 |
from US $13.71 |
||
|
23341
|
23341
23341-N5900 Retainer-Bearing8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23341-N5900 |
US $36.86 |
||
|
23343
|
23343
23343-M4900
Switch Assy-Magnetic
8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23343-M4900 |
— | ||
| replacement | |||||
|
23343
|
23343
B3343-H9100
Switch assy-magnetic
8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
B3343-H9100 |
— | ||
|
23343
|
23343
23343-M8110 Switch Assy-Magnetic8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23343-M8110 |
US $129.02 |
||
|
23354
|
23354
23354-11M00 Shaft-Pinion8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23354-11M00 |
US $156.96 |
||
|
23354
|
23354
23360-N5912 Pinion Assy8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23360-N5912 |
US $295.94 |
||
|
23357
|
23357
23354-N5912 Clutch Assy8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23354-N5912 |
US $276.48 |
||
|
23357
|
23357
23357-N5900 Pinion8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23357-N5900 |
US $112.46 |
||
|
23358
|
23358
23358-M4900 Bearing8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23358-M4900 |
US $38.88 |
||
|
23363
|
23363
23363-M4900 Bearing8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23363-M4900 |
US $17.57 |
||
|
23378
|
23378
23378-M4900 Holder Assy-Brush8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23378-M4900 |
US $66.53 |
||
|
23378
|
23378
23378N5911 Holder Assy-Brush8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23378N5911 |
US $35.71 |
||
|
23379
|
23379
23379-M4900 Brush-Minus8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23379-M4900 |
US $10.08 |
||
|
23380
|
23380
23380-E3010 Brush-Plus8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23380-E3010 |
US $10.08 |
||
|
23380
|
23380
23380-M4900 Brush-Plus8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23380-M4900 |
US $10.37 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23465-M4900 |
US $9.50 |
||
|
23465
|
23465
23465-N5910 Stopper Set-Pinion8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23465-N5910 |
US $7.34 |
||
|
23470
|
23470
23470-U7500 Cover Set-Dust8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23470-U7500 |
US $11.52 |
||
|
23470
|
23470
23324-N5900 Plate-Center8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23324-N5900 |
US $6.34 |
||
|
23470M
|
23470M
23324-N5900 Plate-Center8308--01 ~ 8602--01; FJ20#; ﾋﾀﾁ |
23324-N5900 |
US $6.34 |
||
|
23480
|
23480
23480-M0110 Screw Set8308--01 ~ 8602--01; FJ20#; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
