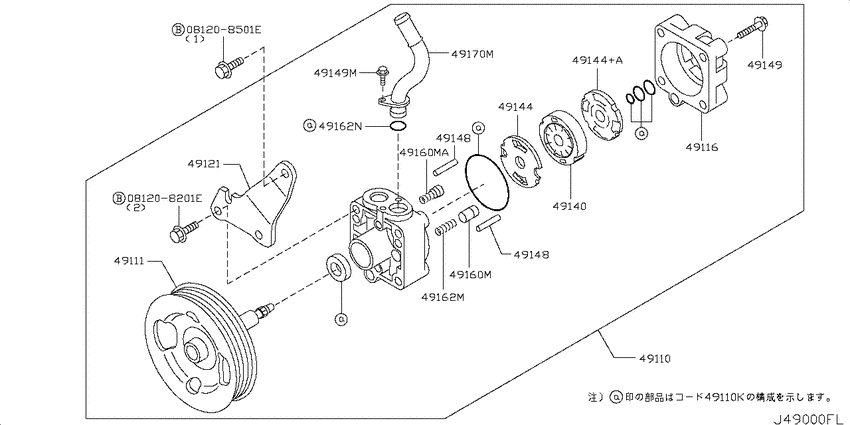

Power steering pump (2007-10-01 ~ ; 2WD/STD.VQ37VHR) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/STD
- transmission
- AT/F5
- grade
- 370GTTP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
49110
|
49110
49110-JK200 Pump Assy-Power Steering0710--01 ~ ; 2WD/STD.VQ37VHR |
49110-JK200 |
US $1,071.91 |
||
|
49110
|
49110
49591-6C925 Seal Kit-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49591-6C925 |
US $15.25 |
||
|
49110K
|
49110K
49591-6C925 Seal Kit-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49591-6C925 |
US $15.25 |
||
|
49111
|
49111
D9132-JK20A Pulley-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
D9132-JK20A |
US $96.07 |
||
|
49116
|
49116
49116-7P900 Cover-Rear, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49116-7P900 |
US $34.70 |
||
|
49121
|
49121
49121-JK20A Bracket Assy-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49121-JK20A |
US $23.18 |
||
|
49140
|
49140
49140-CB100 Rotor & Camring Set-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49140-CB100 |
US $113.18 |
||
|
49144
|
49144
49144-WL000 Plate-Side, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49144-WL000 |
US $34.70 |
||
|
49144
|
49144
49144-WL001 Plate-Side, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49144-WL001 |
US $34.70 |
||
|
49144+A
|
49144+A
49144-WL001 Plate-Side, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49144-WL001 |
US $34.70 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49148-6C900 |
US $2.74 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49148-6C900 |
US $2.74 |
||
|
49149
|
49149
49149-4M409 Bolt-Bracket, Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49149-4M409 |
US $3.60 |
||
|
49149
|
49149
49164-6C900 Bolt-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49164-6C900 |
US $2.45 |
||
|
49149M
|
49149M
49164-6C900 Bolt-Power Steering Pump0710--01 ~ ; 2WD/STD.VQ37VHR |
49164-6C900 |
US $2.45 |
||
|
49160M
|
49160M
49165-WL70A Valve Assy-Flow Control0710--01 ~ ; 2WD/STD.VQ37VHR |
49165-WL70A |
US $57.60 |
||
|
49160M
|
49160M
49168-CB100 Valve Assy-Flow Control0710--01 ~ ; 2WD/STD.VQ37VHR |
49168-CB100 |
US $57.60 |
||
|
49160MA
|
49160MA
49168-CB100 Valve Assy-Flow Control0710--01 ~ ; 2WD/STD.VQ37VHR |
49168-CB100 |
US $57.60 |
||
|
49162M
|
49162M
49167-WA610 Spring-Flow Control Valve0710--01 ~ ; 2WD/STD.VQ37VHR |
49167-WA610 |
US $10.22 |
||
|
49162N
|
49162N
49162-6C900 Seal-Inlet Connector0710--01 ~ ; 2WD/STD.VQ37VHR |
49162-6C900 |
US $4.99 |
||
|
49170M
|
49170M
49161-EG000 Connector-Inlet0710--01 ~ ; 2WD/STD.VQ37VHR |
49161-EG000 |
US $26.93 |
