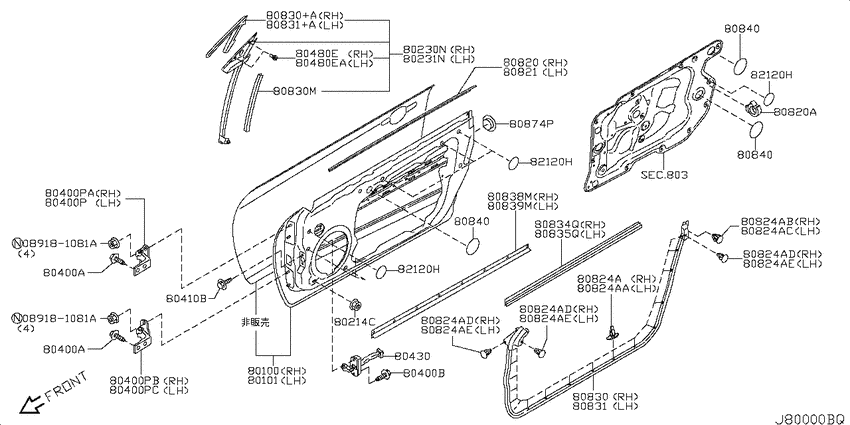

Front door panel & fitting (2007-10-01 ~ ; C) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- AT/F5
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
80100
|
80100
H010M-JL0MA ﾄﾞｱ,ﾌﾛﾝﾄ rh0710--01 ~ 0802--01; C |
H010M-JL0MA |
US $729.24 |
||
|
80100
|
80100
H010M-JL0MB ﾄﾞｱ,ﾌﾛﾝﾄ rh0802--01 ~ ; C |
H010M-JL0MB |
US $729.24 |
||
|
80101
|
80101
H010AJL0MA Fr ﾄﾞｱ ﾊﾟﾈﾙ lh0710--01 ~ 0802--01; C |
H010AJL0MA |
US $729.24 |
||
|
80101
|
80101
H010AJL0MB Fr ﾄﾞｱ ﾊﾟﾈﾙ lh0802--01 ~ ; C |
H010AJL0MB |
US $729.24 |
||
|
80214C
|
80214C
80252S060A Nut0710--01 ~ ; C |
80252S060A |
US $1.58 |
||
|
80230N
|
80230N
80230-JL00A ｺｰﾅｰ ﾋﾟｰｽ,ﾌﾛﾝﾄ ﾄﾞｱ rh0710--01 ~ ; C |
80230-JL00A |
US $78.19 |
||
|
80231N
|
80231N
80231-JL00A ｺｰﾅｰ ﾋﾟｰｽ,ﾌﾛﾝﾄ ﾄﾞｱ lh0710--01 ~ ; C |
80231-JL00A |
US $78.19 |
||
|
803
|
Front door window & regulator
803
|
||||
|
80400A
|
80400A
0112106221 BOLT0710--01 ~ ; C |
0112106221 |
from US $0.85 |
||
|
80400A
|
80400A
0112106221 BOLT0710--01 ~ ; C |
0112106221 |
from US $0.85 |
||
|
80400B
|
80400B
80498-40U0A Bolt0710--01 ~ ; C |
80498-40U0A |
US $2.45 |
||
|
80400P
|
80400P
80401-JL00A HINGE ASSY0710--01 ~ ; C |
80401-JL00A |
US $31.33 |
||
|
80400P
|
80400P
80400-JL00A HINGE ASSY0710--01 ~ ; C |
80400-JL00A |
from US $31.33 |
||
|
80400P
|
80400P
80420-JL00A HINGE ASSY0710--01 ~ ; C |
80420-JL00A |
from US $31.33 |
||
|
80400P
|
80400P
80421-JL00A HINGE ASSY0710--01 ~ ; C |
80421-JL00A |
US $31.33 |
||
|
80400PA
|
80400PA
80400-JL00A HINGE ASSY0710--01 ~ ; C |
80400-JL00A |
from US $31.33 |
||
|
80400PB
|
80400PB
80420-JL00A HINGE ASSY0710--01 ~ ; C |
80420-JL00A |
from US $31.33 |
||
|
80400PC
|
80400PC
80421-JL00A HINGE ASSY0710--01 ~ ; C |
80421-JL00A |
US $31.33 |
||
|
80410B
|
80410B
01121-07261 BOLT0710--01 ~ ; C |
01121-07261 |
from US $0.72 |
||
|
80430
|
80430
80430JL00A CHECK LINK ASSYFRONT DOOR RH0710--01 ~ ; C |
80430JL00A |
from US $22.61 |
||
|
80480E
|
80480E
80287-37F00 Clip0710--01 ~ ; C |
80287-37F00 |
US $1.73 |
||
|
80480E
|
80480E
80287-37F00 Clip0710--01 ~ ; C |
80287-37F00 |
US $1.73 |
||
|
80480EA
|
80480EA
80287-37F00 Clip0710--01 ~ ; C |
80287-37F00 |
US $1.73 |
||
|
80820
|
80820
80820JL00A MLDG ASSYFR DO0710--01 ~ ; C |
80820JL00A |
US $74.59 |
||
|
80820
|
80820
80897AM800 Clip0710--01 ~ ; C |
80897AM800 |
from US $1.70 |
||
|
80820A
|
80820A
80897AM800 Clip0710--01 ~ ; C |
80897AM800 |
from US $1.70 |
||
|
80821
|
80821
80821JL00A MOULDINGDOOR0710--01 ~ ; C |
80821JL00A |
US $74.59 |
||
|
80824A
|
80824A
80850JK00A CLIPWEATHERSTR0710--01 ~ ; C |
80850JK00A |
from US $0.76 |
||
|
80824A
|
80824A
80850-JK00B CLIPWEATHERSTR0710--01 ~ ; C |
80850-JK00B |
US $0.86 |
||
|
80824A
|
80824A
80850-JK00D CLIPWEATHERSTR0710--01 ~ ; C |
80850-JK00D |
from US $0.67 |
||
|
80824A
|
80824A
80850-JK00D CLIPWEATHERSTR0710--01 ~ ; C |
80850-JK00D |
from US $0.67 |
||
|
80824A
|
80824A
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824A
|
80824A
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824AA
|
80824AA
80850-JK00B CLIPWEATHERSTR0710--01 ~ ; C |
80850-JK00B |
US $0.86 |
||
|
80824AB
|
80824AB
80850-JK00D CLIPWEATHERSTR0710--01 ~ ; C |
80850-JK00D |
from US $0.67 |
||
|
80824AC
|
80824AC
80850-JK00D CLIPWEATHERSTR0710--01 ~ ; C |
80850-JK00D |
from US $0.67 |
||
|
80824AD
|
80824AD
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824AD
|
80824AD
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824AD
|
80824AD
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824AE
|
80824AE
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824AE
|
80824AE
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80824AE
|
80824AE
80850-JL00A CLIP CANOE B0710--01 ~ ; C |
80850-JL00A |
US $0.86 |
||
|
80830
|
80830
80830JL00A WSTRIP ASSYFR0710--01 ~ ; C |
80830JL00A |
US $125.03 |
||
|
80830
|
80830
80832-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ rh0710--01 ~ ; C |
80832-JL00A |
from US $31.17 |
||
|
80830
|
80830
80836-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾄﾞｱ ﾛｱ ﾌﾛﾝﾄ rh0710--01 ~ ; C |
80836-JL00A |
US $17.86 |
||
|
80830+A
|
80830+A
80832-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ rh0710--01 ~ ; C |
80832-JL00A |
from US $31.17 |
||
|
80830M
|
80830M
80836-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾄﾞｱ ﾛｱ ﾌﾛﾝﾄ rh0710--01 ~ ; C |
80836-JL00A |
US $17.86 |
||
|
80831
|
80831
80831-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ lh0710--01 ~ ; C |
80831-JL00A |
US $125.03 |
||
|
80831
|
80831
80833-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ lh0710--01 ~ ; C |
80833-JL00A |
US $35.21 |
||
|
80831+A
|
80831+A
80833-JL00A ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ,ﾌﾛﾝﾄ ﾄﾞｱ lh0710--01 ~ ; C |
80833-JL00A |
US $35.21 |
||
|
80834Q
|
80834Q
80834JL00A ｼ-ﾙ ｱﾂｾﾝﾌﾞﾘ-0710--01 ~ ; C |
80834JL00A |
US $53.71 |
||
|
80835Q
|
80835Q
80835JL00A ｼ-ﾙ ｱﾂｾﾝﾌﾞﾘ-0710--01 ~ ; C |
80835JL00A |
US $53.71 |
||
|
80838M
|
80838M
80838JL00A SEAL0710--01 ~ ; C |
80838JL00A |
US $41.76 |
||
|
80839M
|
80839M
80839-JL00A ｼ-ﾙ,ﾌﾛﾝﾄ ﾄﾞｱ ﾊﾟ-ﾃｲﾝｸﾞ lh0710--01 ~ ; C |
80839-JL00A |
US $41.76 |
||
|
80840
|
80840
76884-8H506 Insulator-Rear Pillar, Inner0710--01 ~ ; C |
76884-8H506 |
US $6.79 |
||
|
80840
|
80840
76884-8H506 Insulator-Rear Pillar, Inner0710--01 ~ ; C |
76884-8H506 |
US $6.79 |
||
|
80840
|
80840
76884-8H506 Insulator-Rear Pillar, Inner0710--01 ~ ; C |
76884-8H506 |
US $6.79 |
||
|
80874P
|
80874P
80874AX000 Grommet0710--01 ~ ; C |
80874AX000 |
from US $1.15 |
||
|
82120H
|
82120H
64891W5000 Plug-Rubber0710--01 ~ ; C |
64891W5000 |
from US $0.80 |
||
|
82120H
|
82120H
64891W5000 Plug-Rubber0710--01 ~ ; C |
64891W5000 |
from US $0.80 |
||
|
82120H
|
82120H
64891W5000 Plug-Rubber0710--01 ~ ; C |
64891W5000 |
from US $0.80 |
||
