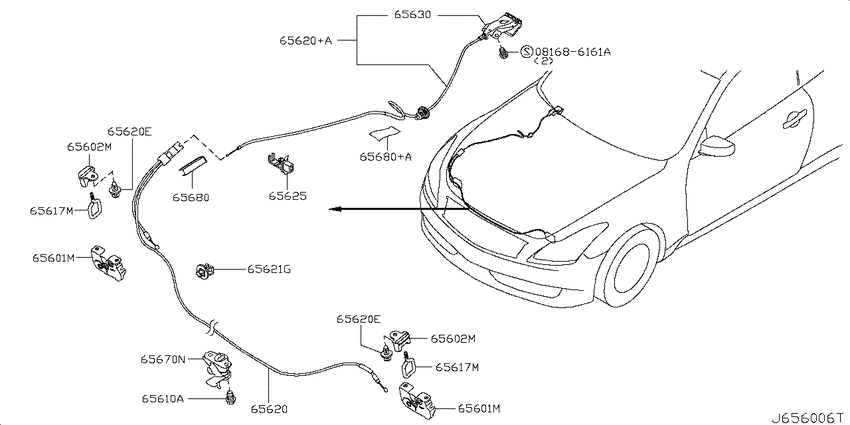

Hood lock control (2007-10-01 ~ ; C) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- AT/F5
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
65601M
|
65601M
65601JL00A Lock Assy-Hood0710--01 ~ ; C |
65601JL00A |
US $53.23 |
||
|
65601M
|
65601M
65601JL00A Lock Assy-Hood0710--01 ~ ; C |
65601JL00A |
US $53.23 |
||
|
65602M
|
65602M
65602JK00A Cover Hood Lock0710--01 ~ ; C |
65602JK00A |
from US $9.98 |
||
|
65602M
|
65602M
65602JK00A Cover Hood Lock0710--01 ~ ; C |
65602JK00A |
from US $9.98 |
||
|
65610A
|
65610A
01121-03181
BOLT
0710--01 ~ ; C |
01121-03181 |
— | ||
| replacement | |||||
|
65610A
|
65610A
65698EQ30A Bolt0710--01 ~ ; C |
65698EQ30A |
US $3.06 |
||
|
65617M
|
65617M
65617-JL00A Striker-Hood Lock0710--01 ~ ; C |
65617-JL00A |
US $10.22 |
||
|
65617M
|
65617M
65617-JL00A Striker-Hood Lock0710--01 ~ ; C |
65617-JL00A |
US $10.22 |
||
|
65620
|
65620
65620-JL01A Cable Assy-Hood Lock Control0710--01 ~ ; C |
65620-JL01A |
from US $65.97 |
||
|
65620
|
65620
65621JK600 Cable Assy-Hood Lock Control0710--01 ~ ; C |
65621JK600 |
from US $86.06 |
||
|
65620
|
65620
0155310501 CLIP-TRIM0710--01 ~ ; C |
0155310501 |
US $0.97 |
||
|
65620+A
|
65620+A
65621JK600 Cable Assy-Hood Lock Control0710--01 ~ ; C |
65621JK600 |
from US $86.06 |
||
|
65620E
|
65620E
0155310501 CLIP-TRIM0710--01 ~ ; C |
0155310501 |
US $0.97 |
||
|
65620E
|
65620E
0155310501 CLIP-TRIM0710--01 ~ ; C |
0155310501 |
US $0.97 |
||
|
65621G
|
65621G
80534JK00A Holder-Rod0710--01 ~ ; C |
80534JK00A |
US $1.73 |
||
|
65625
|
65625
65625-AL500 Clamp-Control Cable0710--01 ~ ; C |
65625-AL500 |
US $5.27 |
||
|
65630
|
65630
65622-4P000 Handle Assy-Hood Lock0710--01 ~ ; C |
65622-4P000 |
US $16.13 |
||
|
65670N
|
65670N
65670JL00A Secondary Assy-Hood Lock Control0710--01 ~ ; C |
65670JL00A |
US $47.09 |
||
|
65680
|
65680
65626JK00A Protector-Hood Lock Control0710--01 ~ ; C |
65626JK00A |
from US $15.53 |
||
|
65680
|
65680
24271-N7100
Protector-Flat Wire
0710--01 ~ ; C |
24271-N7100 |
— | ||
| replacement | |||||
|
65680
|
65680
B4271U0100 Spacer0710--01 ~ ; C |
B4271U0100 |
from US $3.68 |
||
|
65680+A
|
65680+A
24271-N7100
Protector-Flat Wire
0710--01 ~ ; C |
24271-N7100 |
— | ||
| replacement | |||||
|
65680+A
|
65680+A
B4271U0100 Spacer0710--01 ~ ; C |
B4271U0100 |
from US $3.68 |
||
