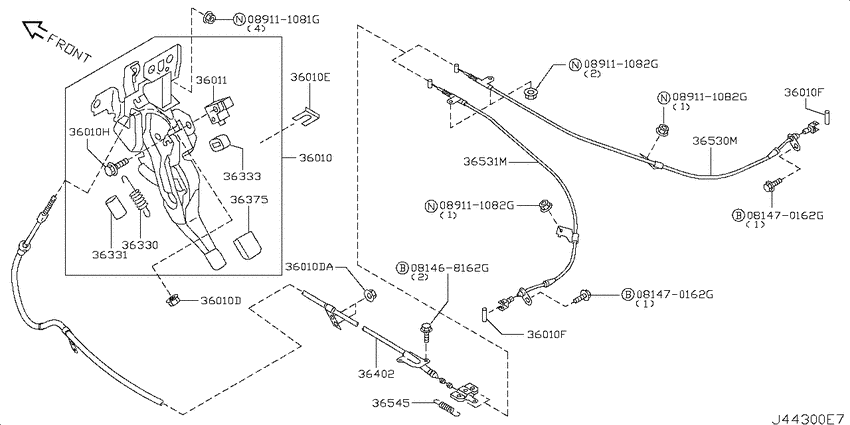

Parking brake control (2007-10-01 ~ ; VQ37VHR.AT/F5) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- AT/F5
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081468162G
|
081468162G
081468162G SCREW |
081468162G |
US $0.81 |
||
|
081470162G
|
081470162G
08147-0162G
Bolt
|
08147-0162G |
— | ||
|
081470162G
|
081470162G
08147-0162G
Bolt
|
08147-0162G |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.50 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-JK000 Device Assy-Parking Brake Control0710--01 ~ ; VQ37VHR.AT/F5 |
36010-JK000 |
US $130.34 |
||
|
36010
|
36010
0122500901 NUT0710--01 ~ ; VQ37VHR.AT/F5 |
0122500901 |
US $1.68 |
||
|
36010
|
36010
0122500371 NUT0710--01 ~ ; VQ37VHR.AT/F5 |
0122500371 |
US $1.68 |
||
|
36010
|
36010
36455AL50A Clip0710--01 ~ ; VQ37VHR.AT/F5 |
36455AL50A |
US $1.68 |
||
|
36010
|
36010
440420P00A Pin-Clevis0710--01 ~ ; VQ37VHR.AT/F5 |
440420P00A |
US $5.04 |
||
|
36010
|
36010
34954-CN00A Screw0710--01 ~ ; VQ37VHR.AT/F5 |
34954-CN00A |
US $1.68 |
||
|
36010D
|
36010D
0122500901 NUT0710--01 ~ ; VQ37VHR.AT/F5 |
0122500901 |
US $1.68 |
||
|
36010D
|
36010D
0122500371 NUT0710--01 ~ ; VQ37VHR.AT/F5 |
0122500371 |
US $1.68 |
||
|
36010DA
|
36010DA
0122500371 NUT0710--01 ~ ; VQ37VHR.AT/F5 |
0122500371 |
US $1.68 |
||
|
36010E
|
36010E
36455AL50A Clip0710--01 ~ ; VQ37VHR.AT/F5 |
36455AL50A |
US $1.68 |
||
|
36010F
|
36010F
440420P00A Pin-Clevis0710--01 ~ ; VQ37VHR.AT/F5 |
440420P00A |
US $5.04 |
||
|
36010F
|
36010F
440420P00A Pin-Clevis0710--01 ~ ; VQ37VHR.AT/F5 |
440420P00A |
US $5.04 |
||
|
36010H
|
36010H
34954-CN00A Screw0710--01 ~ ; VQ37VHR.AT/F5 |
34954-CN00A |
US $1.68 |
||
|
36011
|
36011
36011-CA000 Switch Assy-Parking Brake Lamp0710--01 ~ ; VQ37VHR.AT/F5 |
36011-CA000 |
from US $20.07 |
||
|
36330
|
36330
36330-AL500 Spring-Return, Pawl0710--01 ~ ; VQ37VHR.AT/F5 |
36330-AL500 |
US $4.90 |
||
|
36331
|
36331
36331-AL500 Silencer-Spring0710--01 ~ ; VQ37VHR.AT/F5 |
36331-AL500 |
US $3.36 |
||
|
36333
|
36333
36333-CN00A Stopper-Rubber0710--01 ~ ; VQ37VHR.AT/F5 |
36333-CN00A |
US $4.90 |
||
|
36375
|
36375
36375CA000 Pad-Parking Brake Pedal0710--01 ~ ; VQ37VHR.AT/F5 |
36375CA000 |
US $9.80 |
||
|
36402
|
36402
36402-JK000 Cable Assy-Parking Brake, Front0710--01 ~ ; VQ37VHR.AT/F5 |
36402-JK000 |
US $43.96 |
||
|
36530M
|
36530M
36530-JL00A Cable Assy-Parking, Rear Rh0710--01 ~ ; VQ37VHR.AT/F5 |
36530-JL00A |
US $94.22 |
||
|
36531M
|
36531M
36531-JL00A Cable Assy-Parking, Rear Lh0710--01 ~ ; VQ37VHR.AT/F5 |
36531-JL00A |
US $94.22 |
||
|
36545
|
36545
36545AL500 Spring-Return, Parking Brake0710--01 ~ ; VQ37VHR.AT/F5 |
36545AL500 |
US $2.38 |
