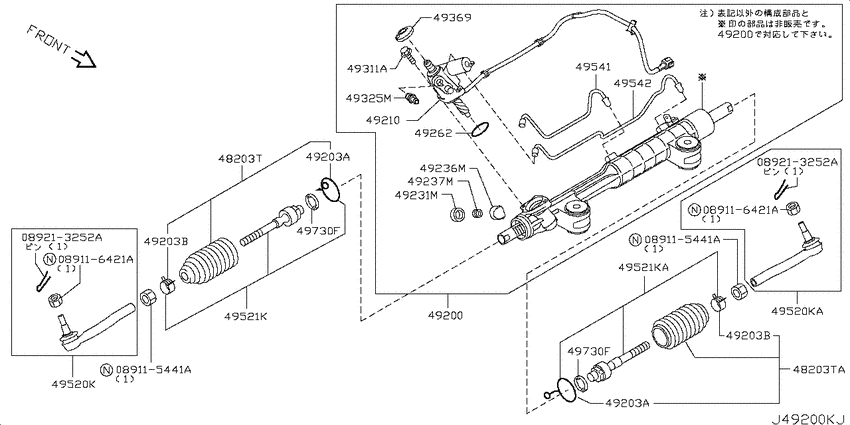

Power steering gear (2007-10-01 ~ ; ~2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- AT/F5
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089115441A
|
089115441A
089115441A
NUTHEX
|
089115441A |
— | ||
|
089115441A
|
089115441A
089115441A
NUTHEX
|
089115441A |
— | ||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
48203T
|
48203T
D8203JK60A Boot Kit-Power Steering Gear0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8203JK60A |
from US $22.48 |
||
|
48203T
|
48203T
D8203JK60A Boot Kit-Power Steering Gear0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8203JK60A |
from US $22.48 |
||
|
48203TA
|
48203TA
D8203JK60A Boot Kit-Power Steering Gear0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8203JK60A |
from US $22.48 |
||
|
49200
|
49200
49200-JK02A Gear Assy-Power Steering0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49200-JK02A |
US $1,247.50 |
||
|
49203A
|
49203A
48055D4100 Clamp-Boot0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48055D4100 |
US $4.71 |
||
|
49203A
|
49203A
48055D4100 Clamp-Boot0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48055D4100 |
US $4.71 |
||
|
49203B
|
49203B
48054AA00A Clamp-Boot0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48054AA00A |
from US $3.48 |
||
|
49203B
|
49203B
48054AA00A Clamp-Boot0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48054AA00A |
from US $3.48 |
||
|
49210
|
49210
49210JK02A Gear Sub Assy-Power Steering0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49210JK02A |
US $698.09 |
||
|
49231M
|
49231M
48231-AU000 Screw-Adjust Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48231-AU000 |
US $13.82 |
||
|
49236M
|
49236M
48236AR000 Retainer-Power Steering Gear0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48236AR000 |
US $41.47 |
||
|
49237M
|
49237M
48237AA100 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=16.80.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237AA100 |
US $5.33 |
||
|
49237M
|
49237M
48237-AA101 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=16.90.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AA101 |
US $5.33 |
||
|
49237M
|
49237M
48237-AA102 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.00.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AA102 |
US $5.33 |
||
|
49237M
|
49237M
48237-AA103 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.15.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AA103 |
US $5.33 |
||
|
49237M
|
49237M
48237-AA104 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.30.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AA104 |
US $5.33 |
||
|
49237M
|
49237M
48237-AA105 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.45.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AA105 |
US $5.33 |
||
|
49237M
|
49237M
48237-AG000 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.60.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AG000 |
US $31.68 |
||
|
49237M
|
49237M
48237-AG001 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.75.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AG001 |
US $31.68 |
||
|
49237M
|
49237M
48237-AG002 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=17.90.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AG002 |
US $31.68 |
||
|
49237M
|
49237M
48237-AG003 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; ｾﾝﾀｸ L=18.05 |
48237-AG003 |
US $31.68 |
||
|
49237M
|
49237M
48237-AG004 Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; L=18.20.ｾﾝﾀｸｼﾃ ｼﾖｳ |
48237-AG004 |
US $31.68 |
||
|
49237M
|
49237M
48237-JK60A Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; SELECT L=18.50 WHITE/GOLD |
48237-JK60A |
US $31.68 |
||
|
49237M
|
49237M
48237-JK60B Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; SELECT L=18.50 ORANGE |
48237-JK60B |
US $31.68 |
||
|
49237M
|
49237M
48237-JK60C Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; SELECT L=18.80 |
48237-JK60C |
US $31.68 |
||
|
49237M
|
49237M
48237-JK60D Spring-Retainer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6; SELECT L=19.26 |
48237-JK60D |
US $31.68 |
||
|
49262
|
49262
49359-AA000 O-Ring Seal0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49359-AA000 |
from US $4.16 |
||
|
49311A
|
49311A
49366-AA000 Bolt-Housing0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49366-AA000 |
US $2.74 |
||
|
49325M
|
49325M
49325-03E00 PORT ASSY-DRAIN,POWER STEERING0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49325-03E00 |
US $6.94 |
||
|
49369
|
49369
49369-CX000 Cap-Rear Cover0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49369-CX000 |
from US $11.40 |
||
|
49520K
|
49520K
48520-EG025
Socket Kit-Tie Rod, Outer
0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48520-EG025 |
— | ||
| replacement | |||||
|
49520K
|
49520K
D8520-EG00C Socket Kit-Tie Rod, Outer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8520-EG00C |
from US $60.72 |
||
|
49520K
|
49520K
48640-EG025
Socket Kit-Tie Rod, Outer
0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48640-EG025 |
— | ||
| replacement | |||||
|
49520K
|
49520K
D8640-EG00C Socket Kit-Tie Rod, Outer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8640-EG00C |
from US $59.11 |
||
|
49520KA
|
49520KA
48640-EG025
Socket Kit-Tie Rod, Outer
0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48640-EG025 |
— | ||
| replacement | |||||
|
49520KA
|
49520KA
D8640-EG00C Socket Kit-Tie Rod, Outer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8640-EG00C |
from US $59.11 |
||
|
49521K
|
49521K
D8521JL06A Socket Kit-Tie Rod, Inner0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8521JL06A |
US $100.80 |
||
| replacement | |||||
|
49521K
|
49521K
D8E21-JL06A Socket kit-tie rod,inner0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8E21-JL06A |
US $59.16 |
||
|
49521K
|
49521K
D8521JL06A Socket Kit-Tie Rod, Inner0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8521JL06A |
US $100.80 |
||
| replacement | |||||
|
49521K
|
49521K
D8E21-JL06A Socket kit-tie rod,inner0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8E21-JL06A |
US $59.16 |
||
|
49521KA
|
49521KA
D8521JL06A Socket Kit-Tie Rod, Inner0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8521JL06A |
US $100.80 |
||
| replacement | |||||
|
49521KA
|
49521KA
D8E21-JL06A Socket kit-tie rod,inner0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D8E21-JL06A |
US $59.16 |
||
|
49541
|
49541
49541-JK00A
Tube Assy-Cylinder
0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49541-JK00A |
— | ||
|
49542
|
49542
49542-JK00A
Tube Assy-Cylinder
0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
49542-JK00A |
— | ||
|
49730F
|
49730F
48636-JK60A Spacer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48636-JK60A |
US $23.29 |
||
|
49730F
|
49730F
48636-JK60A Spacer0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
48636-JK60A |
US $23.29 |
||
