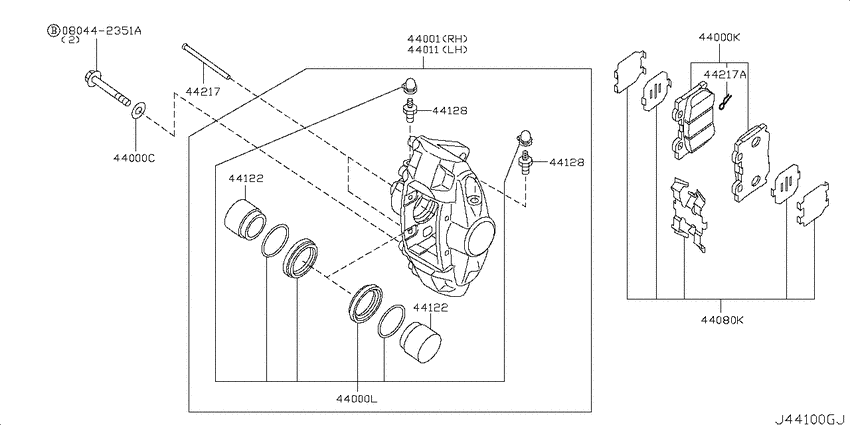

Rear brake (2007-10-01 ~ ; ディスク ブレーキ; ~2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- AT/F5
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442351A
|
080442351A
08044-2351A Bolt-hexagon |
08044-2351A |
US $1.76 |
||
|
44000C
|
44000C
0131101251 WASHER0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
0131101251 |
from US $0.57 |
||
|
44000K
|
44000K
AY060NS046 Pad Kit-Disc Brake0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
AY060NS046 |
US $159.84 |
||
|
44000L
|
44000L
D4120-JL00A
Seal Kit-Disc Brake
0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D4120-JL00A |
— | ||
|
44001
|
44001
44001JL01A Caliper Assy-Rear Rh, W/o Pads Or Shims0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
44001JL01A |
US $504.10 |
||
|
44011
|
44011
44011JL01A Caliper Assy-Rear Lh, W/o Pads Or Shims0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
44011JL01A |
US $504.10 |
||
|
44080K
|
44080K
D4080JL00A Hardware Kit-Rear Disc Brake Pad0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
D4080JL00A |
US $54.29 |
||
|
44122
|
44122
41121-JL00A Piston-Cylinder0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
41121-JL00A |
US $47.66 |
||
|
44122
|
44122
41121-JL00A Piston-Cylinder0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
41121-JL00A |
US $47.66 |
||
|
44128
|
44128
4112880Z0A Screw-Bleeder0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
4112880Z0A |
US $7.35 |
||
|
44128
|
44128
4112880Z0A Screw-Bleeder0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
4112880Z0A |
US $7.35 |
||
|
44217
|
44217
44217JL00A Pin-Pad0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
44217JL00A |
US $6.91 |
||
|
44217
|
44217
41218JL00A Clip0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
41218JL00A |
from US $6.91 |
||
|
44217A
|
44217A
41218JL00A Clip0710--01 ~ ; %2WD/4WAS.VQ37VHR.AT/F5 +VQ37VHR.MT/F6 |
41218JL00A |
from US $6.91 |
