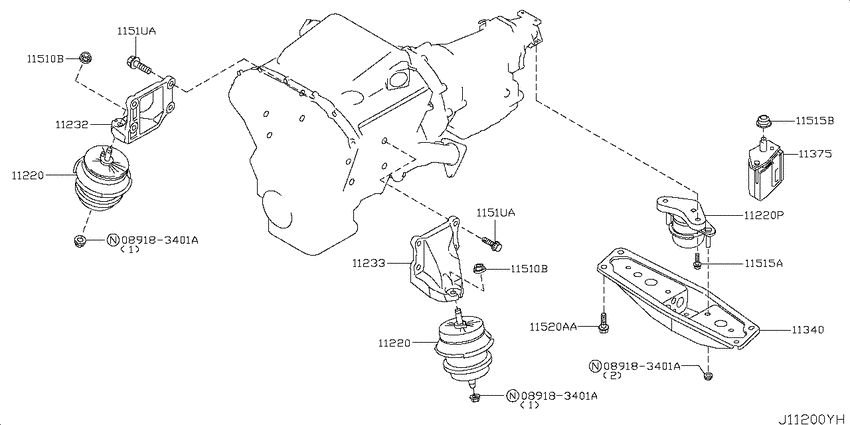

Engine & transmission mounting (2007-10-01 ~ ; VQ37VHR.MT/F6) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- MT/F6
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
11220
|
11220
11220-JK30A
Insulator-Engine Mounting, Front
0710--01 ~ ; VQ37VHR.MT/F6 |
11220-JK30A |
— | ||
| replacement | |||||
|
11220
|
11220
11220-JK31B 11220JK31B0710--01 ~ ; VQ37VHR.MT/F6 |
11220-JK31B |
from US $107.30 |
||
|
11220
|
11220
11320EG800 Insulator-Engine Mounting, Rear0710--01 ~ ; VQ37VHR.MT/F6 |
11320EG800 |
from US $102.68 |
||
|
11220
|
11220
11220-JK30A
Insulator-Engine Mounting, Front
0710--01 ~ ; VQ37VHR.MT/F6 |
11220-JK30A |
— | ||
| replacement | |||||
|
11220
|
11220
11220-JK31B 11220JK31B0710--01 ~ ; VQ37VHR.MT/F6 |
11220-JK31B |
from US $107.30 |
||
|
11220
|
11220
11320EG800 Insulator-Engine Mounting, Rear0710--01 ~ ; VQ37VHR.MT/F6 |
11320EG800 |
from US $102.68 |
||
|
11220P
|
11220P
11320EG800 Insulator-Engine Mounting, Rear0710--01 ~ ; VQ37VHR.MT/F6 |
11320EG800 |
from US $102.68 |
||
|
11232
|
11232
11232-JK000 Bracket-Engine Mounting, Rh0710--01 ~ ; VQ37VHR.MT/F6 |
11232-JK000 |
US $59.76 |
||
|
11233
|
11233
11233-JK000 Bracket-Engine Mounting, Lh0710--01 ~ ; VQ37VHR.MT/F6 |
11233-JK000 |
US $59.76 |
||
|
11340
|
11340
11331JK000 Member Assy-Engine Mounting, Rear0710--01 ~ ; VQ37VHR.MT/F6 |
11331JK000 |
US $89.71 |
||
|
11375
|
11375
11375-JK40A Damper Assy-Dynamic0710--01 ~ ; VQ37VHR.MT/F6 |
11375-JK40A |
US $106.85 |
||
|
11510B
|
11510B
0122500931 NUT0710--01 ~ ; VQ37VHR.MT/F6 |
0122500931 |
US $2.45 |
||
|
11510B
|
11510B
0122500931 NUT0710--01 ~ ; VQ37VHR.MT/F6 |
0122500931 |
US $2.45 |
||
|
11515A
|
11515A
11298AH000 Bolt0710--01 ~ ; VQ37VHR.MT/F6 |
11298AH000 |
US $3.46 |
||
|
11515B
|
11515B
0122500062 NUT0710--01 ~ ; VQ37VHR.MT/F6 |
0122500062 |
from US $1.67 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0710--01 ~ ; VQ37VHR.MT/F6 |
11298-4M411 |
from US $1.76 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0710--01 ~ ; VQ37VHR.MT/F6 |
11298-4M411 |
from US $1.76 |
||
|
11520AA
|
11520AA
11298AG90A Bolt0710--01 ~ ; VQ37VHR.MT/F6 |
11298AG90A |
US $3.06 |
||
