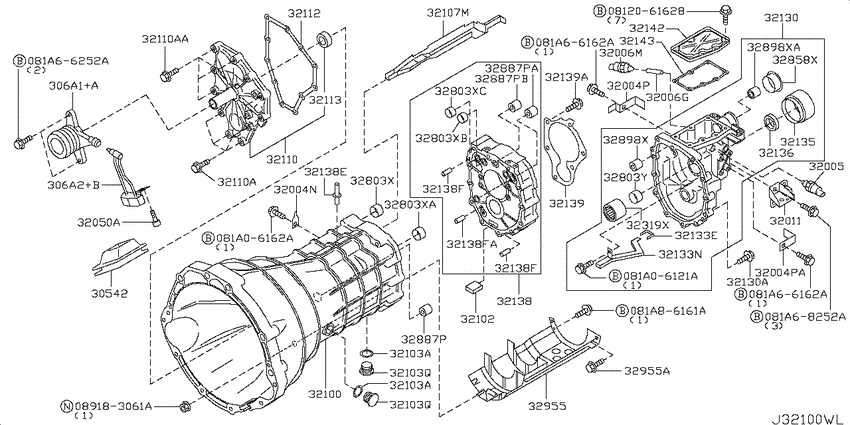

Transmission case & clutch release (2007-10-01 ~ ; MT/F6) Diagram Nissan SKYLINE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ37VHR
- drive
- 2WD/4WAS
- transmission
- MT/F6
- grade
- 370GTTSP
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
081A06121A
|
081A06121A
081A0-6121A BOLTHEX |
081A0-6121A |
US $0.80 |
||
|
081A06162A
|
081A06162A
081A0-6162A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A0-6162A |
— | ||
|
081A66162A
|
081A66162A
081A6-6162A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A6-6162A |
— | ||
|
081A66162A
|
081A66162A
081A6-6162A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A6-6162A |
— | ||
|
081A66252A
|
081A66252A
081A66252A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A66252A |
— | ||
|
081A68252A
|
081A68252A
081A6-8252A
ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ
|
081A6-8252A |
— | ||
|
081A86161A
|
081A86161A
081A8-6161A
BOLT
|
081A8-6161A |
— | ||
|
089183061A
|
089183061A
089183061A Nut-Flange, Hex |
089183061A |
from US $0.68 |
||
|
30542
|
30542
30542JK40A Cover-Dust, Withdrawal Lever0710--01 ~ ; MT/F6 |
30542JK40A |
from US $10.26 |
||
|
306A1+A
|
306A1+A
306A1JK40C Body-Concentric Slave0710--01 ~ ; MT/F6 |
306A1JK40C |
US $154.08 |
||
|
306A2+B
|
306A2+B
306A2-JK40A Tube-Concentric Slave0710--01 ~ ; MT/F6 |
306A2-JK40A |
US $64.66 |
||
|
32004N
|
32004N
32004-CD00A Bracket-Switch0710--01 ~ ; MT/F6 |
32004-CD00A |
US $5.04 |
||
|
32004P
|
32004P
32004-CD50B Bracket-Switch0710--01 ~ ; MT/F6 |
32004-CD50B |
US $5.04 |
||
|
32004P
|
32004P
32004-CD00C Bracket-Switch0710--01 ~ ; MT/F6 |
32004-CD00C |
US $5.04 |
||
|
32004PA
|
32004PA
32004-CD00C Bracket-Switch0710--01 ~ ; MT/F6 |
32004-CD00C |
US $5.04 |
||
|
32005
|
32005
320056J00A Switch Assy-Reverse Lamp0710--01 ~ ; MT/F6 |
320056J00A |
from US $21.28 |
||
|
32006G
|
32006G
32829-CD000 Plunger-Switch0710--01 ~ ; MT/F6 |
32829-CD000 |
US $3.02 |
||
|
32006M
|
32006M
32006-6J00A Switch Assy-Neutral Position0710--01 ~ ; MT/F6 |
32006-6J00A |
from US $15.11 |
||
|
32011
|
32011
32011-CD000 Bracket-Damper0710--01 ~ ; MT/F6 |
32011-CD000 |
US $18.29 |
||
|
32050A
|
32050A
31377JK40A Bolt0710--01 ~ ; MT/F6 |
31377JK40A |
US $1.93 |
||
|
32100
|
32100
32100-CD50A Case Assy-Transmission0710--01 ~ ; MT/F6 |
32100-CD50A |
US $591.89 |
||
| replacement | |||||
|
32100
|
32100
321A0-CD50A
Case Assy-Transmission
0710--01 ~ ; MT/F6 |
321A0-CD50A |
— | ||
|
32102
|
32102
32105-03E01 MAGNET-TRANSAXLE0710--01 ~ ; MT/F6 |
32105-03E01 |
US $3.46 |
||
|
32103A
|
32103A
110264N200 Gasket-Plug0710--01 ~ ; MT/F6 |
110264N200 |
from US $2.63 |
||
|
32103A
|
32103A
110264N200 Gasket-Plug0710--01 ~ ; MT/F6 |
110264N200 |
from US $2.63 |
||
|
32103Q
|
32103Q
32103-4N21A
Plug-Drain
0710--01 ~ ; MT/F6 |
32103-4N21A |
— | ||
| replacement | |||||
|
32103Q
|
32103Q
32103-1MG0B
Plug-Filler
0710--01 ~ ; MT/F6 |
32103-1MG0B |
— | ||
|
32103Q
|
32103Q
32103-4N21A
Plug-Drain
0710--01 ~ ; MT/F6 |
32103-4N21A |
— | ||
| replacement | |||||
|
32103Q
|
32103Q
32103-1MG0B
Plug-Filler
0710--01 ~ ; MT/F6 |
32103-1MG0B |
— | ||
|
32107M
|
32107M
32107-CD400 Gutter-Oil0710--01 ~ ; MT/F6 |
32107-CD400 |
US $10.08 |
||
|
32110
|
32110
32110-CD50A Cover Assy-Front0710--01 ~ ; MT/F6 |
32110-CD50A |
US $98.13 |
||
|
32110
|
32110
3137712U0B Bolt-Fixing, Front Cover0710--01 ~ ; MT/F6 |
3137712U0B |
US $1.73 |
||
|
32110
|
32110
31377-CD00C Bolt-Fixing, Front Cover0710--01 ~ ; MT/F6 |
31377-CD00C |
from US $0.54 |
||
|
32110A
|
32110A
3137712U0B Bolt-Fixing, Front Cover0710--01 ~ ; MT/F6 |
3137712U0B |
US $1.73 |
||
|
32110A
|
32110A
31377-CD00C Bolt-Fixing, Front Cover0710--01 ~ ; MT/F6 |
31377-CD00C |
from US $0.54 |
||
|
32110AA
|
32110AA
31377-CD00C Bolt-Fixing, Front Cover0710--01 ~ ; MT/F6 |
31377-CD00C |
from US $0.54 |
||
|
32112
|
32112
32112-CD000 Gasket-Front Cover0710--01 ~ ; MT/F6 |
32112-CD000 |
from US $4.18 |
||
|
32113
|
32113
32113-CD000 Seal-Oil, Front Cover0710--01 ~ ; MT/F6 |
32113-CD000 |
from US $5.37 |
||
|
32130
|
32130
32130-CD400 Extension Assy-Rear0710--01 ~ 0802--01; MT/F6 |
32130-CD400 |
US $434.71 |
||
|
32130
|
32130
32130-CD40B Extension Assy-Rear0802--01 ~ ; MT/F6 |
32130-CD40B |
US $434.71 |
||
|
32130
|
32130
31377-CD00A Bolt0710--01 ~ ; MT/F6 |
31377-CD00A |
US $2.45 |
||
|
32130A
|
32130A
31377-CD00A Bolt0710--01 ~ ; MT/F6 |
31377-CD00A |
US $2.45 |
||
|
32133E
|
32133E
34149-CD000 Cap0710--01 ~ ; MT/F6 |
34149-CD000 |
US $2.45 |
||
|
32133N
|
32133N
32133-CD010 Gutter-Oil, Rear Extension0710--01 ~ ; MT/F6 |
32133-CD010 |
US $16.85 |
||
|
32135
|
32135
32135CD00A Cover-Dust, Sleeve Yoke0710--01 ~ ; MT/F6 |
32135CD00A |
US $13.18 |
||
|
32136
|
32136
32136-CD000 Seal-Oil, Rear Extension0710--01 ~ ; MT/F6 |
32136-CD000 |
from US $5.37 |
||
|
32138
|
32138
32137-CD000 Plate-Adapter0710--01 ~ ; MT/F6 |
32137-CD000 |
US $149.76 |
||
|
32138
|
32138
38322-6M00A Breather0710--01 ~ ; MT/F6 |
38322-6M00A |
US $8.06 |
||
|
32138
|
32138
32106-CD000 Pin-Dowel0710--01 ~ ; MT/F6 |
32106-CD000 |
US $11.23 |
||
|
32138
|
32138
32106-M8000 Pin-Knock, Clutch Housing0710--01 ~ ; MT/F6 |
32106-M8000 |
US $1.67 |
||
|
32138E
|
32138E
38322-6M00A Breather0710--01 ~ ; MT/F6 |
38322-6M00A |
US $8.06 |
||
|
32138F
|
32138F
32106-CD000 Pin-Dowel0710--01 ~ ; MT/F6 |
32106-CD000 |
US $11.23 |
||
|
32138F
|
32138F
32106-M8000 Pin-Knock, Clutch Housing0710--01 ~ ; MT/F6 |
32106-M8000 |
US $1.67 |
||
|
32138F
|
32138F
32106-CD000 Pin-Dowel0710--01 ~ ; MT/F6 |
32106-CD000 |
US $11.23 |
||
|
32138F
|
32138F
32106-M8000 Pin-Knock, Clutch Housing0710--01 ~ ; MT/F6 |
32106-M8000 |
US $1.67 |
||
|
32138FA
|
32138FA
32106-M8000 Pin-Knock, Clutch Housing0710--01 ~ ; MT/F6 |
32106-M8000 |
US $1.67 |
||
|
32139
|
32139
32139-CD100 Retainer-Bearing0710--01 ~ ; MT/F6 |
32139-CD100 |
US $13.54 |
||
|
32139
|
32139
31377-CD005 Bolt-Fixing, Retainer0710--01 ~ ; MT/F6 |
31377-CD005 |
US $2.21 |
||
|
32139A
|
32139A
31377-CD005 Bolt-Fixing, Retainer0710--01 ~ ; MT/F6 |
31377-CD005 |
US $2.21 |
||
|
32142
|
32142
32142-CD000 Cover-Upper, Extension0710--01 ~ ; MT/F6 |
32142-CD000 |
US $14 |
||
|
32143
|
32143
32143-CD00A Gasket-Upper Cover, Extension0710--01 ~ ; MT/F6 |
32143-CD00A |
US $1.67 |
||
|
32319X
|
32319X
32319CD001 Bearing-Counter, End0710--01 ~ ; MT/F6 |
32319CD001 |
US $21.89 |
||
|
32803X
|
32803X
32803-CD000 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-CD000 |
US $1.58 |
||
|
32803X
|
32803X
32803-8H500 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-8H500 |
US $1.73 |
||
|
32803X
|
32803X
32803-CD000 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-CD000 |
US $1.58 |
||
|
32803X
|
32803X
32803-8H500 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-8H500 |
US $1.73 |
||
|
32803XA
|
32803XA
32803-8H500 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-8H500 |
US $1.73 |
||
|
32803XB
|
32803XB
32803-CD000 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-CD000 |
US $1.58 |
||
|
32803XC
|
32803XC
32803-8H500 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-8H500 |
US $1.73 |
||
|
32803Y
|
32803Y
32803-CD000 Bush-Fork Shaft0710--01 ~ ; MT/F6 |
32803-CD000 |
US $1.58 |
||
|
32858X
|
32858X
32858CD000 Seal-Oil, Shift Control Rod0710--01 ~ ; MT/F6 |
32858CD000 |
US $4.92 |
||
|
32887P
|
32887P
32898-VB000
Bearing-Ball, Slide
0710--01 ~ ; MT/F6 |
32898-VB000 |
— | ||
| replacement | |||||
|
32887P
|
32887P
32898-VB00A Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-VB00A |
from US $8.90 |
||
|
32887P
|
32887P
32898-CD000 Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-CD000 |
US $10.94 |
||
|
32887P
|
32887P
32898-VB00A Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-VB00A |
from US $8.90 |
||
|
32887PA
|
32887PA
32898-CD000 Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-CD000 |
US $10.94 |
||
|
32887PB
|
32887PB
32898-VB00A Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-VB00A |
from US $8.90 |
||
|
32898X
|
32898X
32898-CD000 Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-CD000 |
US $10.94 |
||
|
32898X
|
32898X
32898-VB00A Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-VB00A |
from US $8.90 |
||
|
32898XA
|
32898XA
32898-VB00A Bearing-Ball, Slide0710--01 ~ ; MT/F6 |
32898-VB00A |
from US $8.90 |
||
|
32955
|
32955
32150-CD001 Plate-Baffle0710--01 ~ ; MT/F6 |
32150-CD001 |
US $23.90 |
||
|
32955
|
32955
31377-CD00B Bolt0710--01 ~ ; MT/F6 |
31377-CD00B |
US $1.58 |
||
|
32955A
|
32955A
31377-CD00B Bolt0710--01 ~ ; MT/F6 |
31377-CD00B |
US $1.58 |
||
