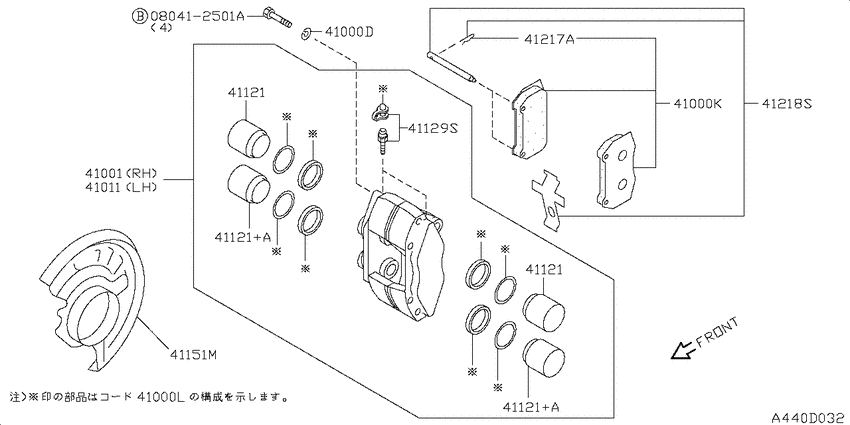

Front brake (1993-02-01 ~ ; RB26DETT.GT-R.17) Diagram Nissan SKYLINE
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- HI.4WD
- transmission
- MT.F5
- grade
- GT-R.17
- body
- 2K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080412501A
|
080412501A
080412501A
Bolt-hexagon
|
080412501A |
— | ||
|
41000D
|
41000D
0131101251 WASHER9302--01 ~ ; RB26DETT.GT-R.17 |
0131101251 |
from US $0.57 |
||
|
41000K
|
41000K
41060-12U86 Pad Kit-Disc Brake9302--01 ~ ; RB26DETT.GT-R.17; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
41060-12U86 |
US $531 |
||
|
41000L
|
41000L
AY600NS057 Seal Kit-Disc Brake9302--01 ~ ; RB26DETT.GT-R.17 |
AY600NS057 |
US $244.80 |
||
|
41001
|
41001
41001-12U00 Caliper Assy-Front Rh, W/o Pads Or Shims9302--01 ~ ; RB26DETT.GT-R.17 |
41001-12U00 |
US $1,680 |
||
|
41011
|
41011
41011-12U00 Caliper Assy-Front Lh, W/o Pads Or Shims9302--01 ~ ; RB26DETT.GT-R.17 |
41011-12U00 |
US $1,680 |
||
|
41121
|
41121
4112112U00 Piston-Cylinder9302--01 ~ ; RB26DETT.GT-R.17 |
4112112U00 |
US $46.66 |
||
|
41121
|
41121
4112112U01 Piston-Cylinder9302--01 ~ ; RB26DETT.GT-R.17 |
4112112U01 |
US $46.66 |
||
|
41121
|
41121
4112112U00 Piston-Cylinder9302--01 ~ ; RB26DETT.GT-R.17 |
4112112U00 |
US $46.66 |
||
|
41121
|
41121
4112112U01 Piston-Cylinder9302--01 ~ ; RB26DETT.GT-R.17 |
4112112U01 |
US $46.66 |
||
|
41121+A
|
41121+A
4112112U01 Piston-Cylinder9302--01 ~ ; RB26DETT.GT-R.17 |
4112112U01 |
US $46.66 |
||
|
41121+A
|
41121+A
4112112U01 Piston-Cylinder9302--01 ~ ; RB26DETT.GT-R.17 |
4112112U01 |
US $46.66 |
||
|
41129S
|
41129S
41129-12U25 Cap And Screw Set9302--01 ~ ; RB26DETT.GT-R.17 |
41129-12U25 |
US $91.30 |
||
|
41151M
|
41151M
41150-12U00 Plate-Baffle9302--01 ~ 9405--01; RB26DETT.GT-R.17; ﾐｷﾞ ﾖｳ |
41150-12U00 |
US $42.62 |
||
|
41151M
|
41151M
41150-12U15 Plate-Baffle9405--01 ~ ; RB26DETT.GT-R.17.MT.F5; ﾐｷﾞ ﾖｳ |
41150-12U15 |
US $38.45 |
||
|
41151M
|
41151M
41160-12U00 Plate-Baffle9302--01 ~ 9405--01; RB26DETT.GT-R.17; ﾋﾀﾞﾘ ﾖｳ |
41160-12U00 |
US $42.62 |
||
|
41151M
|
41151M
41160-12U15 Plate-Baffle9405--01 ~ ; RB26DETT.GT-R.17.MT.F5; ﾋﾀﾞﾘ ﾖｳ |
41160-12U15 |
US $38.45 |
||
|
41217A
|
41217A
41218-12U00 Clip9302--01 ~ ; RB26DETT.GT-R.17 |
41218-12U00 |
US $11.66 |
||
|
41218S
|
41218S
41218-12U25 Clip, Pin And Cross Spring Set9302--01 ~ ; RB26DETT.GT-R.17 |
41218-12U25 |
US $104.83 |
