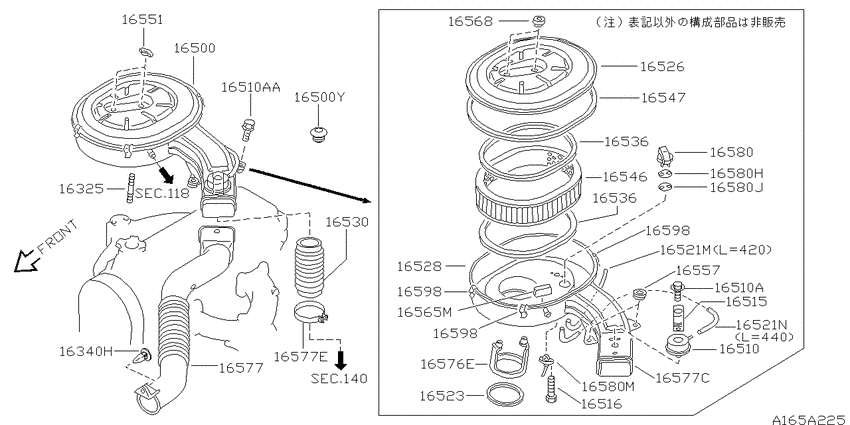

Air cleaner (1989-05-01 ~ ; CA18I) Diagram Nissan SKYLINE
- Year
- 1989 - 1991
- Sales region
- Japan
- Engine
- CA18I
- drive
- 2WD
- transmission
- MT
- grade
- GXI
- body
- 4K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
118
|
Crankcase ventilation
118
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16325
|
16325
16525-95L00 Stud8905--01 ~ 9002--01; CA18I |
16525-95L00 |
US $2.45 |
||
|
16325
|
16325
16525-95L01 Stud9002--01 ~ ; CA18I |
16525-95L01 |
US $2.45 |
||
|
16340H
|
16340H
0128100231 GROMMET8905--01 ~ ; CA18I |
0128100231 |
US $0.97 |
||
|
16500
|
16500
16500-95L02 Air Cleaner8905--01 ~ 8912--01; CA18I.MT |
16500-95L02 |
US $203.04 |
||
|
16500
|
16500
16500-95L04 Air Cleaner8912--01 ~ 9012--01; CA18I.MT |
16500-95L04 |
US $286.03 |
||
|
16500
|
16500
16500-95L06 Air Cleaner9012--01 ~ 9106--01; CA18I.MT |
16500-95L06 |
US $243.36 |
||
|
16500
|
16500
16500-95L08 Air Cleaner9106--01 ~ ; CA18I.MT |
16500-95L08 |
US $269.28 |
||
|
16500
|
16500
0165801481 PLUG8905--01 ~ ; CA18I |
0165801481 |
US $3.18 |
||
|
16500Y
|
16500Y
0165801481 PLUG8905--01 ~ ; CA18I |
0165801481 |
US $3.18 |
||
|
16510
|
16510
16510-D0101 Motor Assy-Vacuum8905--01 ~ 9108--01; CA18I |
16510-D0101 |
US $71.57 |
||
|
16510
|
16510
16516-G2100 Bolt8905--01 ~ 9108--01; CA18I |
16516-G2100 |
US $0.86 |
||
|
16510
|
16510
01121-00871 BOLT8905--01 ~ ; CA18I |
01121-00871 |
US $2.21 |
||
|
16510A
|
16510A
16516-G2100 Bolt8905--01 ~ 9108--01; CA18I |
16516-G2100 |
US $0.86 |
||
|
16510A
|
16510A
01121-00871 BOLT8905--01 ~ ; CA18I |
01121-00871 |
US $2.21 |
||
|
16510AA
|
16510AA
01121-00871 BOLT8905--01 ~ ; CA18I |
01121-00871 |
US $2.21 |
||
|
16515
|
16515
16515-95L07 Bracket-Vacuum Motor8905--01 ~ ; CA18I |
16515-95L07 |
US $7.78 |
||
|
16516
|
16516
16516-69A06 Bolt8905--01 ~ ; CA18I |
16516-69A06 |
US $1.44 |
||
|
16521M
|
16521M
16521-95L01 Hose-Vacuum8905--01 ~ ; CA18I; L=420 |
16521-95L01 |
US $8.93 |
||
|
16521N
|
16521N
22323-W4400 Hose-Vacuum8905--01 ~ ; CA18I; L=440S/#B2320-Y4001 |
22323-W4400 |
US $5.33 |
||
|
16523
|
16523
16523-95L00 Insulator8905--01 ~ ; CA18I |
16523-95L00 |
US $6.05 |
||
|
16526
|
16526
16526-95L01 Air Cleaner Cover8905--01 ~ ; CA18I |
16526-95L01 |
US $25.49 |
||
|
16528
|
16528
16528-95L02 Body Assy-Air Cleaner8905--01 ~ 9012--01; CA18I.MT |
16528-95L02 |
US $78.19 |
||
|
16528
|
16528
16528-95L04 Body Assy-Air Cleaner9012--01 ~ 9108--01; CA18I.MT |
16528-95L04 |
US $94.03 |
||
|
16528
|
16528
16528-95L08 Body Assy-Air Cleaner9108--01 ~ ; CA18I.MT |
16528-95L08 |
US $78.19 |
||
|
16530
|
16530
16530-W1101 Duct-Air8905--01 ~ 9004--01; CA18I |
16530-W1101 |
US $34.99 |
||
| replacement | |||||
|
16530
|
16530
A6530-35N40
Duct-air
8905--01 ~ 9004--01; CA18I |
A6530-35N40 |
— | ||
|
16530
|
16530
16530-W1102 Duct-Air9004--01 ~ ; CA18I |
16530-W1102 |
US $46.37 |
||
| replacement | |||||
|
16530
|
16530
A6530-35N40
Duct-air
9004--01 ~ ; CA18I |
A6530-35N40 |
— | ||
|
16536
|
16536
16536-M5600 Packing8905--01 ~ ; CA18I |
16536-M5600 |
US $12.10 |
||
|
16536
|
16536
16536-M5600 Packing8905--01 ~ ; CA18I |
16536-M5600 |
US $12.10 |
||
|
16546
|
16546
AY120NS008 Element Assy-Air8905--01 ~ ; CA18I |
AY120NS008 |
US $20.98 |
||
|
16547
|
16547
16548-04E00 PACKING8905--01 ~ ; CA18I |
16548-04E00 |
US $4.46 |
||
| replacement | |||||
|
16547
|
16547
16547-62S00
Packing-Air Cleaner
8905--01 ~ ; CA18I |
16547-62S00 |
— | ||
|
16551
|
16551
16551-W7000
Nut-Wing
8905--01 ~ ; CA18I |
16551-W7000 |
— | ||
| replacement | |||||
|
16551
|
16551
16551W700A Nut-Wing8905--01 ~ ; CA18I |
16551W700A |
from US $4.85 |
||
|
16557
|
16557
16557-D1100 Mounting Rubber8905--01 ~ ; CA18I |
16557-D1100 |
US $5.27 |
||
|
16565M
|
16565M
16565-V5500 Filter8905--01 ~ ; CA18I |
16565-V5500 |
US $2.45 |
||
|
16568
|
16568
16568-95L01 Packing8905--01 ~ 9108--01; CA18I |
16568-95L01 |
US $5.04 |
||
|
16576E
|
16576E
16566-95L01 Retainer8905--01 ~ 8912--01; CA18I |
16566-95L01 |
US $5.04 |
||
|
16576E
|
16576E
16566-95L02 Retainer8912--01 ~ ; CA18I |
16566-95L02 |
US $5.90 |
||
|
16577
|
16577
16554-95L00 Duct Assy-Air8905--01 ~ ; CA18I |
16554-95L00 |
US $69.84 |
||
|
16577
|
16577
16515-D2100
Gasket
8905--01 ~ ; CA18I |
16515-D2100 |
— | ||
| replacements | |||||
|
16577
|
16577
16515-D2700
Packing
8905--01 ~ ; CA18I |
16515-D2700 |
— | ||
|
16577
|
16577
16515-03J00 Packing8905--01 ~ ; CA18I |
16515-03J00 |
US $9.56 |
||
|
16577
|
16577
01556-00051 CLAMP9108--01 ~ ; CA18I |
01556-00051 |
US $4.18 |
||
|
16577C
|
16577C
16515-D2100
Gasket
8905--01 ~ ; CA18I |
16515-D2100 |
— | ||
| replacements | |||||
|
16577C
|
16577C
16515-D2700
Packing
8905--01 ~ ; CA18I |
16515-D2700 |
— | ||
|
16577C
|
16577C
16515-03J00 Packing8905--01 ~ ; CA18I |
16515-03J00 |
US $9.56 |
||
|
16577E
|
16577E
01556-00051 CLAMP9108--01 ~ ; CA18I |
01556-00051 |
US $4.18 |
||
|
16580
|
16580
16580-01B01 Intake Air Temperature Sensor8905--01 ~ ; CA18I |
16580-01B01 |
US $50.04 |
||
|
16580
|
16580
16529-B9800 Grommet8905--01 ~ ; CA18I |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper8905--01 ~ ; CA18I |
16582-H3901 |
US $8.87 |
||
|
16580
|
16580
22630-95L00 Intake Air Temperature8905--01 ~ ; CA18I; ｷﾕｳｷｵﾝ ｾﾝｻ |
22630-95L00 |
US $113.18 |
||
|
16580H
|
16580H
16529-B9800 Grommet8905--01 ~ ; CA18I |
16529-B9800 |
US $1.67 |
||
|
16580J
|
16580J
16582-H3901 Stopper8905--01 ~ ; CA18I |
16582-H3901 |
US $8.87 |
||
|
16580M
|
16580M
22630-95L00 Intake Air Temperature8905--01 ~ ; CA18I; ｷﾕｳｷｵﾝ ｾﾝｻ |
22630-95L00 |
US $113.18 |
||
|
16598
|
16598
16598-12G00 Clip9108--01 ~ ; CA18I |
16598-12G00 |
US $2.74 |
||
|
16598
|
16598
16598-95L01 Clip8905--01 ~ 9108--01; CA18I |
16598-95L01 |
US $2.02 |
||
|
16598
|
16598
16598-12G00 Clip9108--01 ~ ; CA18I |
16598-12G00 |
US $2.74 |
||
|
16598
|
16598
16598-95L01 Clip8905--01 ~ 9108--01; CA18I |
16598-95L01 |
US $2.02 |
||
|
16598
|
16598
16598-12G00 Clip9108--01 ~ ; CA18I |
16598-12G00 |
US $2.74 |
||
|
16598
|
16598
16598-95L01 Clip8905--01 ~ 9108--01; CA18I |
16598-95L01 |
US $2.02 |
||
