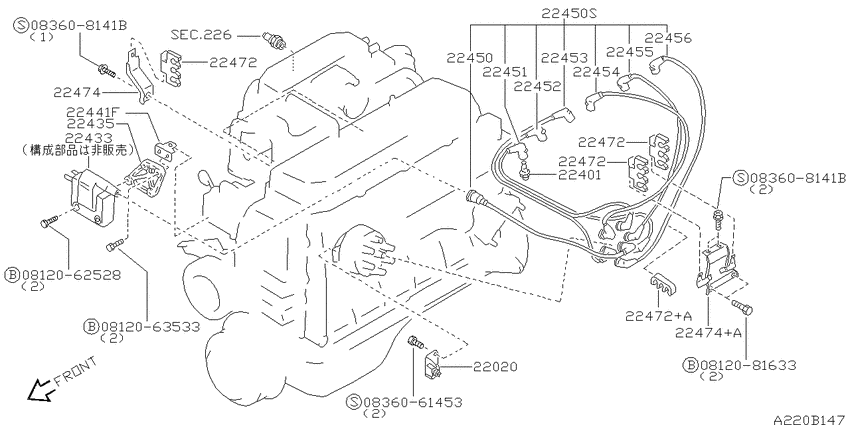

Ignition System (1989-05-01 ~ 1991-08-01; RB20E) Diagram Nissan SKYLINE
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- RB20E
- drive
- 2WD
- transmission
- MT.F5
- grade
- GTE.X
- body
- 4K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812063533
|
0812063533
08120-63533
Bolt-hexagon
|
08120-63533 |
— | ||
|
0812081633
|
0812081633
08120-81633
Bolt-hexagon
|
08120-81633 |
— | ||
|
0836061453
|
0836061453
08360-61453
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61453 |
— | ||
|
083608141B
|
083608141B
08360-8141B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-8141B |
— | ||
|
083608141B
|
083608141B
08360-8141B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-8141B |
— | ||
|
22020
|
22020
2202042L10
Transistor Ignition Unit
8905--01 ~ 9108--01; RB20E; ﾊﾝｼﾝ |
2202042L10 |
— | ||
|
22401
|
22401
22401-01P14
Plug-Spark
8905--01 ~ 9108--01; RB20E; ｾﾝﾀｸ BCPR4ES-11[B512] |
22401-01P14 |
— | ||
| replacement | |||||
|
22401
|
22401
2240101P15 Plug-Spark8905--01 ~ 9108--01; RB20E; ｾﾝﾀｸ BCPR4ES-11[B512] |
2240101P15 |
US $5.94 |
||
|
22401
|
22401
2240101P15 Plug-Spark8905--01 ~ 9108--01; RB20E; ｾﾝﾀｸ BCPR5ES-11[B512] |
2240101P15 |
US $5.94 |
||
|
22401
|
22401
2240101P16 Plug-Spark8905--01 ~ 9108--01; RB20E; ｾﾝﾀｸ BCPR6ES-11[B512] |
2240101P16 |
from US $2.89 |
||
|
22433
|
22433
2243355S10 Coil Assy-Ignition8905--01 ~ 9108--01; RB20E; ﾊﾝｼﾝ SMC-200 |
2243355S10 |
US $119.95 |
||
|
22435
|
22435
22435-55S00 Bracket-Ignition Coil8905--01 ~ 9108--01; RB20E |
22435-55S00 |
US $34.56 |
||
|
22441F
|
22441F
24239-42L00 Bracket-Clip8905--01 ~ 9108--01; RB20E |
24239-42L00 |
US $7.34 |
||
|
22450
|
22450
22450-42L00 Cable Assy-Ignition Coil To Distributor8905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22450-42L00 |
US $16.42 |
||
|
22450
|
22450
22450-42L10 Cable Assy-Ignition Coil To Distributor8905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22450-42L10 |
US $16.42 |
||
|
22450
|
22450
2244042L00 Cable Set-High Tension8905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
2244042L00 |
US $488.01 |
||
|
22450
|
22450
22440-42L10 Cable Set-High Tension8905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22440-42L10 |
US $201.60 |
||
|
22450S
|
22450S
2244042L00 Cable Set-High Tension8905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
2244042L00 |
US $488.01 |
||
|
22450S
|
22450S
22440-42L10 Cable Set-High Tension8905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22440-42L10 |
US $201.60 |
||
|
22451
|
22451
22451-42L00 Cable Assy-High Tension, No 18905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22451-42L00 |
US $27.94 |
||
|
22451
|
22451
22451-42L10 Cable Assy-High Tension, No 18905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22451-42L10 |
US $27.94 |
||
|
22452
|
22452
22452-42L00 Cable Assy-High Tension, No 28905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22452-42L00 |
US $27.94 |
||
|
22452
|
22452
22452-42L10 Cable Assy-High Tension, No 28905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22452-42L10 |
US $27.94 |
||
|
22453
|
22453
22453-42L00 Cable Assy-High Tension, No 38905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22453-42L00 |
US $29.81 |
||
|
22453
|
22453
22453-42L10 Cable Assy-High Tension, No 38905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22453-42L10 |
US $29.81 |
||
|
22454
|
22454
22454-42L00 Cable Assy-High Tension, No 48905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22454-42L00 |
US $43.34 |
||
|
22454
|
22454
22454-42L10 Cable Assy-High Tension, No 48905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22454-42L10 |
US $39.46 |
||
|
22455
|
22455
2245542L00 Cable Assy-High Tension, No 58905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
2245542L00 |
US $43.34 |
||
|
22455
|
22455
22455-42L10 Cable Assy-High Tension, No 58905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22455-42L10 |
US $39.46 |
||
|
22456
|
22456
2245642L00 Cable Assy-High Tension, No 68905--01 ~ 9108--01; RB20E; ﾔｻﾞｷ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
2245642L00 |
US $43.34 |
||
|
22456
|
22456
22456-42L10 Cable Assy-High Tension, No 68905--01 ~ 9108--01; RB20E; ｽﾐﾄﾓ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
22456-42L10 |
US $39.46 |
||
|
22472
|
22472
22472-42L00 Clamp-High Tension Cable8905--01 ~ 9108--01; RB20E |
22472-42L00 |
US $7.34 |
||
|
22472
|
22472
22472-85E01 CLAMP-HIGH TENSION CABLE8905--01 ~ 9108--01; RB20E |
22472-85E01 |
US $4.03 |
||
| replacement | |||||
|
22472
|
22472
22472-27N02
Clamp-High Tension Cable
8905--01 ~ 9108--01; RB20E |
22472-27N02 |
— | ||
|
22472
|
22472
22472-42L00 Clamp-High Tension Cable8905--01 ~ 9108--01; RB20E |
22472-42L00 |
US $7.34 |
||
|
22472
|
22472
22472-85E01 CLAMP-HIGH TENSION CABLE8905--01 ~ 9108--01; RB20E |
22472-85E01 |
US $4.03 |
||
| replacement | |||||
|
22472
|
22472
22472-27N02
Clamp-High Tension Cable
8905--01 ~ 9108--01; RB20E |
22472-27N02 |
— | ||
|
22472
|
22472
22472-42L00 Clamp-High Tension Cable8905--01 ~ 9108--01; RB20E |
22472-42L00 |
US $7.34 |
||
|
22472
|
22472
22472-85E01 CLAMP-HIGH TENSION CABLE8905--01 ~ 9108--01; RB20E |
22472-85E01 |
US $4.03 |
||
| replacement | |||||
|
22472
|
22472
22472-27N02
Clamp-High Tension Cable
8905--01 ~ 9108--01; RB20E |
22472-27N02 |
— | ||
|
22472+A
|
22472+A
22472-85E01 CLAMP-HIGH TENSION CABLE8905--01 ~ 9108--01; RB20E |
22472-85E01 |
US $4.03 |
||
| replacement | |||||
|
22472+A
|
22472+A
22472-27N02
Clamp-High Tension Cable
8905--01 ~ 9108--01; RB20E |
22472-27N02 |
— | ||
|
22474
|
22474
22474-42L01 Bracket-High Tension Cable8905--01 ~ 9108--01; RB20E |
22474-42L01 |
US $4.90 |
||
|
22474
|
22474
22474-02U00 Bracket-High Tension Cable8905--01 ~ 9108--01; RB20E |
22474-02U00 |
US $32.69 |
||
|
22474+A
|
22474+A
22474-02U00 Bracket-High Tension Cable8905--01 ~ 9108--01; RB20E |
22474-02U00 |
US $32.69 |
||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
