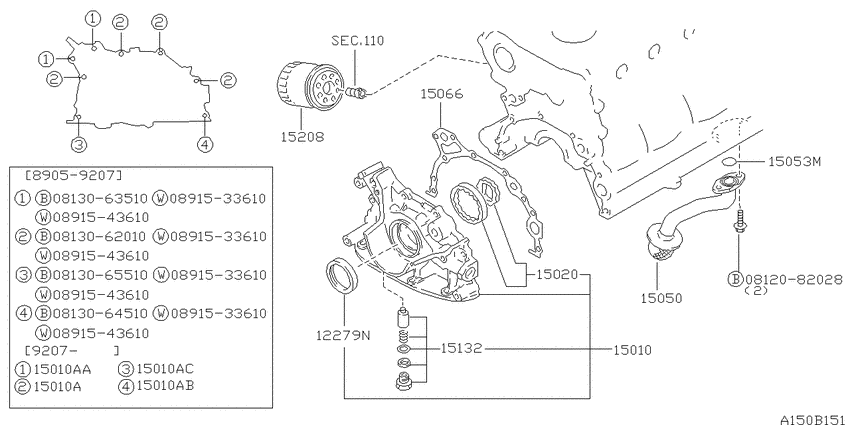

Lubricating system (1991-08-01 ~ ; RB20E) Diagram Nissan SKYLINE
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- RB20E
- drive
- 2WD
- transmission
- MT.F5
- grade
- GTE.X
- body
- 4K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0813062010
|
0813062010
08130-62010
Bolt-hexagon
|
08130-62010 |
— | ||
|
0813063510
|
0813063510
08130-63510
Bolt-hexagon
|
08130-63510 |
— | ||
|
0813064510
|
0813064510
08130-64510
Bolt-hexagon
|
08130-64510 |
— | ||
|
0813065510
|
0813065510
08130-65510
Bolt-hexagon
|
08130-65510 |
— | ||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9303--01 ~ ; RB20E |
1351010Y10 |
from US $6.51 |
||
|
12279N
|
12279N
1351019V00 Seal-Oil, Crankshaft Front8905--01 ~ 9108--01; RB20E |
1351019V00 |
from US $3.19 |
||
|
15010
|
15010
15010-79S00 Pump Assy-Oil8905--01 ~ 9108--01; RB20E |
15010-79S00 |
US $355.42 |
||
|
15010
|
15010
01121-06691 BOLT9207--01 ~ ; RB20E |
01121-06691 |
US $2.45 |
||
|
15010
|
15010
01121-06701 BOLT9207--01 ~ ; RB20E |
01121-06701 |
US $2.45 |
||
|
15010
|
15010
01121-06711 BOLT9207--01 ~ ; RB20E |
01121-06711 |
US $2.45 |
||
|
15010
|
15010
01121-06721 BOLT9207--01 ~ ; RB20E |
01121-06721 |
US $2.45 |
||
|
15010A
|
15010A
01121-06691 BOLT9207--01 ~ ; RB20E |
01121-06691 |
US $2.45 |
||
|
15010A
|
15010A
01121-06701 BOLT9207--01 ~ ; RB20E |
01121-06701 |
US $2.45 |
||
|
15010A
|
15010A
01121-06711 BOLT9207--01 ~ ; RB20E |
01121-06711 |
US $2.45 |
||
|
15010A
|
15010A
01121-06721 BOLT9207--01 ~ ; RB20E |
01121-06721 |
US $2.45 |
||
|
15010AA
|
15010AA
01121-06701 BOLT9207--01 ~ ; RB20E |
01121-06701 |
US $2.45 |
||
|
15010AB
|
15010AB
01121-06711 BOLT9207--01 ~ ; RB20E |
01121-06711 |
US $2.45 |
||
|
15010AC
|
15010AC
01121-06721 BOLT9207--01 ~ ; RB20E |
01121-06721 |
US $2.45 |
||
|
15020
|
15020
15020-79S00 Shaft Assy-Oil Pump8905--01 ~ 9108--01; RB20E |
15020-79S00 |
US $36.43 |
||
|
15050
|
15050
15050-42L00 Strainer Assy-Oil8905--01 ~ 9108--01; RB20E |
15050-42L00 |
US $25.49 |
||
| replacements | |||||
|
15050
|
15050
15050-42L01 Strainer Assy-Oil8905--01 ~ 9108--01; RB20E |
15050-42L01 |
from US $26.10 |
||
|
15050
|
15050
150531E400 Gasket-Oil Strainer8905--01 ~ 9108--01; RB20E |
150531E400 |
from US $1.67 |
||
|
15053M
|
15053M
15059V5001
Seal-O Ring, Oil Strainer
8905--01 ~ 9108--01; RB20E |
15059V5001 |
— | ||
| replacement | |||||
|
15053M
|
15053M
15059-V500A Ring, e-8905--01 ~ 9108--01; RB20E |
15059-V500A |
US $3.60 |
||
|
15066
|
15066
15066-42L01 Gasket-Oil Pump To Cylinder Block8905--01 ~ 9001--01; RB20E |
15066-42L01 |
US $5.18 |
||
|
15066
|
15066
1506671L00 Gasket-Oil Pump To Cylinder Block9001--01 ~ 9108--01; RB20E |
1506671L00 |
from US $5.16 |
||
|
15132
|
15132
15132-42L00
Valve Assy-Oil Regulator
8905--01 ~ 9108--01; RB20E |
15132-42L00 |
— | ||
| replacement | |||||
|
15132
|
15132
13500-70Y00 Cover Assy-Front, Timing Chain8905--01 ~ 9108--01; RB20E |
13500-70Y00 |
US $388.75 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil8905--01 ~ 9108--01; RB20E |
AY100NS007 |
US $11.13 |
||
