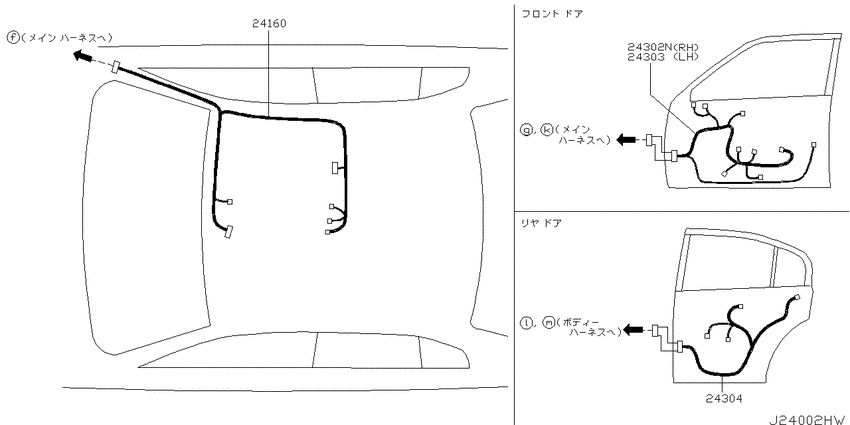

Wiring (2004-11-01 ~ 2005-12-01; ﾙ-ﾌ & ﾄﾞｱ ﾊ-ﾈｽ; S.VQ35DE) Diagram Nissan SKYLINE
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- CVT
- grade
- 350GT8
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24160
|
24160
24060-AC200 Harness Assy-Room Lamp0301--01 ~ 0411--01; S.VQ35DE |
24060-AC200 |
US $124.27 |
||
|
24160
|
24160
24060-AC201 Harness Assy-Room Lamp0301--01 ~ 0411--01; *S.VQ35DE |
24060-AC201 |
US $124.27 |
||
|
24160
|
24160
24060-AC500 Harness Assy-Room Lamp0411--01 ~ ; S.VQ35DE |
24060-AC500 |
US $124.27 |
||
|
24160
|
24160
24060-AC501 Harness Assy-Room Lamp0411--01 ~ ; *S.VQ35DE |
24060-AC501 |
US $124.27 |
||
|
24160
|
24160
24060-AC502 Harness Assy-Room Lamp0411--01 ~ ; *S.VQ35DE |
24060-AC502 |
US $124.27 |
||
|
24160
|
24160
24060-AC503 Harness Assy-Room Lamp0411--01 ~ ; *S.VQ35DE |
24060-AC503 |
US $124.27 |
||
|
24160
|
24160
24060-AL500 Harness Assy-Room Lamp0201--01 ~ 0301--01; S.VQ35DE |
24060-AL500 |
US $124.27 |
||
|
24160
|
24160
24060-AL501 Harness Assy-Room Lamp0201--01 ~ 0301--01; *S.VQ35DE |
24060-AL501 |
US $124.27 |
||
|
24302N
|
24302N
24124-AC502 Harness Assy-Door, Front0411--01 ~ 0512--01; *S.VQ35DE.AT.F5 +*S.350GT8 |
24124-AC502 |
US $247.68 |
||
|
24302N
|
24302N
24124-AC503 Harness Assy-Door, Front0411--01 ~ 0512--01; *S.VQ35DE.AT.F5 +*S.350GT8 |
24124-AC503 |
US $247.68 |
||
|
24302N
|
24302N
24124-AL500 Harness Assy-Door, Front0201--01 ~ 0301--01; *S.VQ35DE |
24124-AL500 |
US $247.68 |
||
|
24302N
|
24302N
24124-AL501 Harness Assy-Door, Front0201--01 ~ 0301--01; *S.VQ35DE |
24124-AL501 |
US $247.68 |
||
|
24302N
|
24302N
24124-AL502 Harness Assy-Door, Front0201--01 ~ 0301--01; S.VQ35DE |
24124-AL502 |
US $247.68 |
||
|
24303
|
24303
24125-AC502 Harness Assy-Door, Front0411--01 ~ 0512--01; *S.VQ35DE.AT.F5 +*S.350GT8 |
24125-AC502 |
US $247.68 |
||
|
24303
|
24303
24125-AC503 Harness Assy-Door, Front0411--01 ~ 0512--01; *S.VQ35DE.AT.F5 +*S.350GT8 |
24125-AC503 |
US $247.68 |
||
|
24303
|
24303
24125-AL500 Harness Assy-Door, Front0201--01 ~ 0301--01; *S.VQ35DE |
24125-AL500 |
US $247.68 |
||
|
24303
|
24303
24125-AL501 Harness Assy-Door, Front0201--01 ~ 0301--01; *S.VQ35DE |
24125-AL501 |
US $247.68 |
||
|
24303
|
24303
24125-AL502 Harness Assy-Door, Front0201--01 ~ 0301--01; S.VQ35DE |
24125-AL502 |
US $247.68 |
||
|
24304
|
24304
24126-AC500 Harness Assy-Door, Rear0411--01 ~ 0512--01; *S.VQ35DE |
24126-AC500 |
US $155.52 |
||
|
24304
|
24304
24126-AC501 Harness Assy-Door, Rear0411--01 ~ 0512--01; *S.VQ35DE |
24126-AC501 |
US $155.52 |
||
|
24304
|
24304
24126-AL500 Harness Assy-Door, Rear0201--01 ~ 0301--01; *S.VQ35DE |
24126-AL500 |
US $155.52 |
||
|
24304
|
24304
24126-AL502 Harness Assy-Door, Rear0201--01 ~ 0301--01; S.VQ35DE |
24126-AL502 |
US $155.52 |
