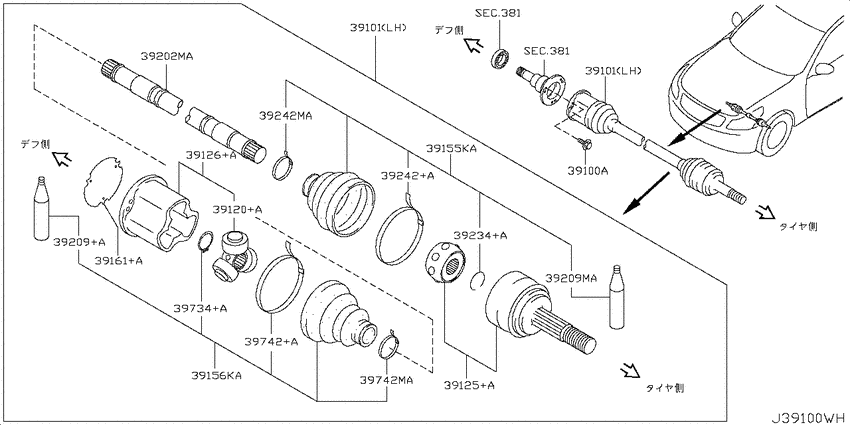

Front drive shaft (ff) (2006-11-01 ~ ; 左側; 4WD.VQ25HR) Diagram Nissan SKYLINE
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- VQ25HR
- drive
- 4WD
- transmission
- AT.F5
- grade
- 250GTP
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
39100A
|
39100A
39106-AL81A Bolt0611--01 ~ ; 4WD.VQ25HR |
39106-AL81A |
from US $1.13 |
||
|
39101
|
39101
39101-JK500 Shaft Assy-Front Drive, Lh0611--01 ~ ; 4WD.VQ25HR |
39101-JK500 |
US $825.53 |
||
|
39101
|
39101
39101-JK500 Shaft Assy-Front Drive, Lh0611--01 ~ ; 4WD.VQ25HR |
39101-JK500 |
US $825.53 |
||
|
39120+A
|
39120+A
39720-10V10 Spider Assy-Slide Joint0611--01 ~ ; 4WD.VQ25HR; ﾏｰｸ 00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-10V10 |
US $78.19 |
||
|
39120+A
|
39120+A
39720-10V11 Spider Assy-Slide Joint0611--01 ~ ; 4WD.VQ25HR; ﾏｰｸ 01 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-10V11 |
US $76.46 |
||
|
39120+A
|
39120+A
39720-10V12 Spider Assy-Slide Joint0611--01 ~ ; 4WD.VQ25HR; ﾏｰｸ 02 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-10V12 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-EG000 Joint Assy-Outer0611--01 ~ ; 4WD.VQ25HR |
39211-EG000 |
US $419.14 |
||
|
39126+A
|
39126+A
39711-64E00 JOINT ASSY-INNER0611--01 ~ ; 4WD.VQ25HR |
39711-64E00 |
US $259.20 |
||
|
39155KA
|
39155KA
39241CG027 Repair Kit-Dust Boot, Outer0611--01 ~ ; 4WD.VQ25HR |
39241CG027 |
US $61.63 |
||
|
39156KA
|
39156KA
39741-05U91 Repair Kit-Dust B00T, Inner0611--01 ~ ; 4WD.VQ25HR |
39741-05U91 |
US $61.63 |
||
| replacement | |||||
|
39156KA
|
39156KA
3974105U89
Repair Kit-Dust B00T, Inner
0611--01 ~ ; 4WD.VQ25HR |
3974105U89 |
— | ||
|
39161+A
|
39161+A
39715-64E00 PLUG0611--01 ~ ; 4WD.VQ25HR |
39715-64E00 |
US $9.65 |
||
|
39202MA
|
39202MA
39205-JK50A Shaft-Front Drive, Rh0611--01 ~ ; 4WD.VQ25HR |
39205-JK50A |
US $198.72 |
||
|
39209+A
|
39209+A
C9709-77E15 Grease-Inner0611--01 ~ ; 4WD.VQ25HR |
C9709-77E15 |
US $23.33 |
||
|
39209MA
|
39209MA
C9209-9Y015 Grease-Outer0611--01 ~ ; 4WD.VQ25HR |
C9209-9Y015 |
US $20.23 |
||
|
39234+A
|
39234+A
39234-CG00A Circlip-Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
39234-CG00A |
US $2.30 |
||
|
39242+A
|
39242+A
39242CG000 Band-Boot, Drive Shaft Outer0611--01 ~ ; 4WD.VQ25HR |
39242CG000 |
US $4.03 |
||
|
39242MA
|
39242MA
39242-CG010 Band-Boot, Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
39242-CG010 |
US $4.03 |
||
|
39734+A
|
39734+A
3970841W00 Ring-Snap, C0611--01 ~ ; 4WD.VQ25HR |
3970841W00 |
US $0.92 |
||
|
39742+A
|
39742+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER0611--01 ~ ; 4WD.VQ25HR |
3924201E00 |
US $4.25 |
||
|
39742MA
|
39742MA
39742W1205 Band-Dust Cover, Shaft0611--01 ~ ; 4WD.VQ25HR |
39742W1205 |
US $8.90 |
||
