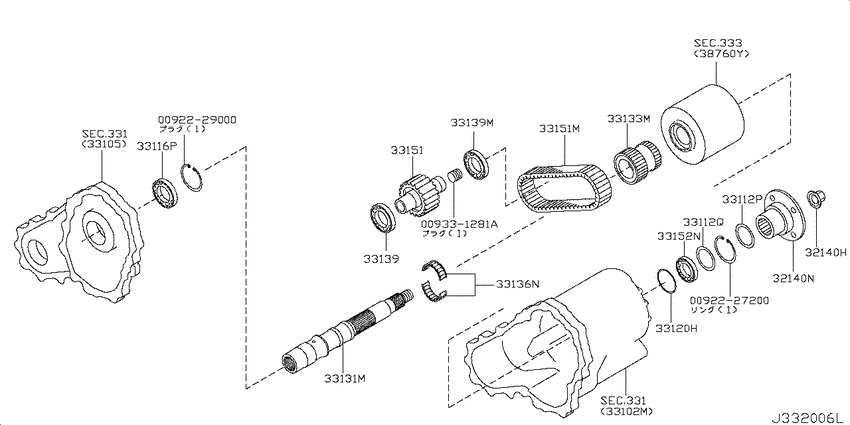

Transfer gear (2006-11-01 ~ ; 4WD.VQ25HR) Diagram Nissan SKYLINE
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- VQ25HR
- drive
- 4WD
- transmission
- AT.F5
- grade
- 250GTP
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092227200
|
0092227200
00922-27200 RINGSNAP |
00922-27200 |
US $3.79 |
||
|
0092229000
|
0092229000
00922-29000
RINGSNAP
|
00922-29000 |
— | ||
|
009331281A
|
009331281A
00933-1281A Plug-Welch |
00933-1281A |
US $1.73 |
||
|
32140H
|
32140H
33143C620A Nut-Companion Flange0611--01 ~ ; 4WD.VQ25HR |
33143C620A |
US $8.59 |
||
|
32140N
|
32140N
33220CG00A Flange Assy-Companion0611--01 ~ ; 4WD.VQ25HR |
33220CG00A |
US $109.58 |
||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
33112P
|
33112P
33148CG000 Spacer-Main Shaft0611--01 ~ ; 4WD.VQ25HR |
33148CG000 |
US $7.06 |
||
|
33112Q
|
33112Q
3314833G00 Spacer-Main Shaft0611--01 ~ ; 4WD.VQ25HR |
3314833G00 |
from US $4.03 |
||
|
33116P
|
33116P
33116-AQ310 Bearing-Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
33116-AQ310 |
US $42.48 |
||
|
33120H
|
33120H
3313873P23 Ring-Snap, Main Shaft0611--01 ~ ; 4WD.VQ25HR |
3313873P23 |
US $4.03 |
||
|
33131M
|
33131M
33131CG000 Shaft-Main, Transfer0611--01 ~ ; 4WD.VQ25HR |
33131CG000 |
US $349.75 |
||
|
33133M
|
33133M
33133CG000 Sprocket-Front Drive0611--01 ~ ; 4WD.VQ25HR |
33133CG000 |
US $169.92 |
||
|
33136N
|
33136N
33136AQ310 Bearing-Needle0611--01 ~ ; 4WD.VQ25HR |
33136AQ310 |
US $22.03 |
||
|
33139
|
33139
33122-05U00 Bearing-Front Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
33122-05U00 |
US $21.31 |
||
|
33139
|
33139
33139-05U00 Bearing-Front Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
33139-05U00 |
US $21.31 |
||
|
33139M
|
33139M
33139-05U00 Bearing-Front Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
33139-05U00 |
US $21.31 |
||
|
33151
|
33151
33151-CG000 Shaft-Drive, Front0611--01 ~ ; 4WD.VQ25HR |
33151-CG000 |
US $146.88 |
||
|
33151
|
33151
33152-AQ310 Chain-Front Drive, Transfer0611--01 ~ ; 4WD.VQ25HR |
33152-AQ310 |
US $380.90 |
||
|
33151M
|
33151M
33152-AQ310 Chain-Front Drive, Transfer0611--01 ~ ; 4WD.VQ25HR |
33152-AQ310 |
US $380.90 |
||
|
33152N
|
33152N
32203CG000 Bearing-Drive Shaft0611--01 ~ ; 4WD.VQ25HR |
32203CG000 |
US $38.45 |
||
|
333
|
Transfer shift lever,fork & control
333
|
||||
