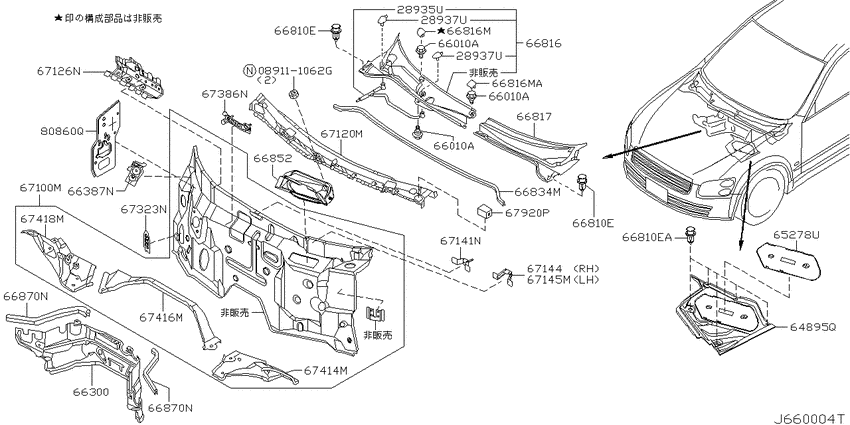

Cowl top & fitting (2003-06-01 ~ ; W) Diagram Nissan STAGEA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
28935U
|
28935U
28935-AL510 Hose-Washer0306--01 ~ ; W |
28935-AL510 |
US $26.78 |
||
|
28937U
|
28937U
28937-AQ000 Connector-Tube0306--01 ~ ; W |
28937-AQ000 |
US $5.04 |
||
|
28937U
|
28937U
28937-AQ000 Connector-Tube0306--01 ~ ; W |
28937-AQ000 |
US $5.04 |
||
|
64895Q
|
64895Q
64895-AL500 Cover-Hoodledge, Lh0306--01 ~ ; *W |
64895-AL500 |
US $12.67 |
||
|
65278U
|
65278U
65278-AL500 Cover-Battery Connector0306--01 ~ ; *W |
65278-AL500 |
US $11.23 |
||
|
66010A
|
66010A
01136-00035 BOLT0306--01 ~ ; *W |
01136-00035 |
US $3.46 |
||
|
66010A
|
66010A
63198-AL520
Bolt
0306--01 ~ ; W |
63198-AL520 |
— | ||
| replacement | |||||
|
66010A
|
66010A
63198-3V60A Bolt0306--01 ~ ; W |
63198-3V60A |
US $1.93 |
||
|
66010A
|
66010A
01136-00035 BOLT0306--01 ~ ; *W |
01136-00035 |
US $3.46 |
||
|
66010A
|
66010A
63198-AL520
Bolt
0306--01 ~ ; W |
63198-AL520 |
— | ||
| replacement | |||||
|
66010A
|
66010A
63198-3V60A Bolt0306--01 ~ ; W |
63198-3V60A |
US $1.93 |
||
|
66010A
|
66010A
01136-00035 BOLT0306--01 ~ ; *W |
01136-00035 |
US $3.46 |
||
|
66010A
|
66010A
63198-AL520
Bolt
0306--01 ~ ; W |
63198-AL520 |
— | ||
| replacement | |||||
|
66010A
|
66010A
63198-3V60A Bolt0306--01 ~ ; W |
63198-3V60A |
US $1.93 |
||
|
66300
|
66300
66300AL500 Cowl Top0306--01 ~ ; *W |
66300AL500 |
US $351.17 |
||
|
66387N
|
66387N
66387-AL500 Bracket-Wiper Mounting0306--01 ~ ; *W |
66387-AL500 |
US $8.50 |
||
|
66810E
|
66810E
0155309321 CLIP0306--01 ~ ; W |
0155309321 |
US $0.97 |
||
|
66810E
|
66810E
0155309321 CLIP0306--01 ~ ; *W |
0155309321 |
US $0.97 |
||
|
66810E
|
66810E
0155309321 CLIP0306--01 ~ ; W |
0155309321 |
US $0.97 |
||
|
66810E
|
66810E
0155309321 CLIP0306--01 ~ ; *W |
0155309321 |
US $0.97 |
||
|
66810EA
|
66810EA
0155309321 CLIP0306--01 ~ ; *W |
0155309321 |
US $0.97 |
||
|
66816
|
66816
66862AL505 Cover-Cowl Top Grille, Rh0306--01 ~ ; W |
66862AL505 |
US $117.07 |
||
|
66816
|
66816
66820AL500 Cover-Cowl Top, Upper0306--01 ~ ; W |
66820AL500 |
US $2.59 |
||
|
66816
|
66816
66820-AL501 Cover-Cowl Top, Upper0306--01 ~ ; W |
66820-AL501 |
US $2.59 |
||
|
66816M
|
66816M
66820AL500 Cover-Cowl Top, Upper0306--01 ~ ; W |
66820AL500 |
US $2.59 |
||
|
66816M
|
66816M
66820-AL501 Cover-Cowl Top, Upper0306--01 ~ ; W |
66820-AL501 |
US $2.59 |
||
|
66816MA
|
66816MA
66820-AL501 Cover-Cowl Top, Upper0306--01 ~ ; W |
66820-AL501 |
US $2.59 |
||
|
66817
|
66817
66863-AQ006 Cover-Cowl Top Grille, Lh0306--01 ~ ; W |
66863-AQ006 |
US $50.54 |
||
|
66834M
|
66834M
66834-AL500 Seal Assy-Cowl Top, Rh0306--01 ~ ; W |
66834-AL500 |
US $52.99 |
||
|
66852
|
66852
66852-AL500 Cover-Air Intake0306--01 ~ ; *W |
66852-AL500 |
US $42.19 |
||
|
66870N
|
66870N
66870-AL500 Seal-Cowl Top Cover0306--01 ~ ; *W |
66870-AL500 |
US $8.64 |
||
|
66870N
|
66870N
66870-AL500 Seal-Cowl Top Cover0306--01 ~ ; *W |
66870-AL500 |
US $8.64 |
||
|
67100M
|
67100M
67100-AM930 Dash Assy-Upper0306--01 ~ ; *W |
67100-AM930 |
US $710.83 |
||
|
67120M
|
67120M
67120-AL500 Member Assy-Dash Upper Cross0306--01 ~ ; *W |
67120-AL500 |
US $260.64 |
||
|
67126N
|
67126N
67126-AM900 Bracket-Parking Brake Mounting0306--01 ~ ; *W |
67126-AM900 |
US $42.91 |
||
|
67141N
|
67141N
67141-AL500 Bracket-Instrument0306--01 ~ ; *W |
67141-AL500 |
US $6.77 |
||
|
67144
|
67144
67144-AL500 Bracket-Instrument Mounting, Upper Rh0306--01 ~ ; *W |
67144-AL500 |
US $12.67 |
||
|
67145M
|
67145M
67145-AL500 Bracket-Instrument Mounting, Upper Lh0306--01 ~ ; *W |
67145-AL500 |
US $12.67 |
||
|
67323N
|
67323N
67323-AL510 Bracket-Accel Pedal0306--01 ~ ; *W |
67323-AL510 |
US $27.94 |
||
|
67386N
|
67386N
67386-AL500 Bracket Assy-Parking Brake0306--01 ~ ; W |
67386-AL500 |
US $27.94 |
||
|
67414M
|
67414M
67414-CD420 Reinforce-Dash Lower Cross, Member0306--01 ~ ; *W |
67414-CD420 |
US $99.50 |
||
|
67416M
|
67416M
67416-CD420 Reinforce-Dash Lower Cross Member, Center0306--01 ~ ; *W |
67416-CD420 |
US $87.41 |
||
|
67418M
|
67418M
67418CD520 Reinforce-Dash Lower Cross Member, Rh0306--01 ~ ; *W |
67418CD520 |
US $99.50 |
||
|
67920P
|
67920P
67920-AL500 Mask-Dash Lower0306--01 ~ ; *W |
67920-AL500 |
US $8.50 |
||
|
80860Q
|
80860Q
80860-AL500 Screen-Sealing, Rh0306--01 ~ ; *W |
80860-AL500 |
US $21.02 |
||
