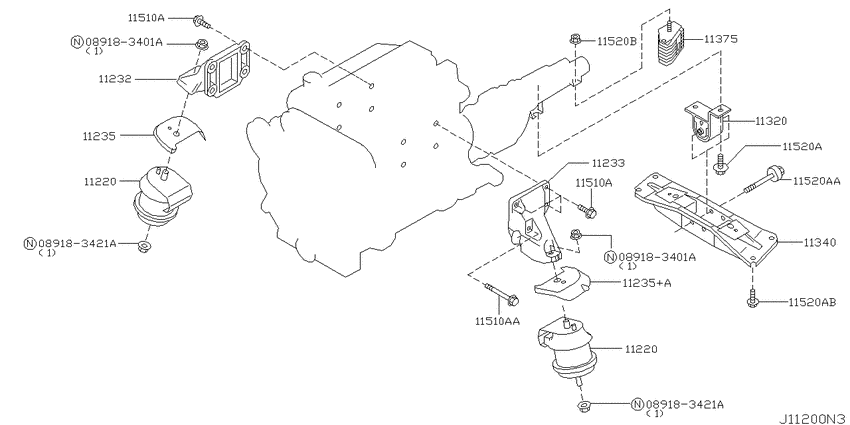

Engine & transmission mounting (2003-06-01 ~ ; VQ35DE) Diagram Nissan STAGEA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
11220
|
11220
11220-AC000 Insulator-Engine Mounting, Front0306--01 ~ ; *VQ35DE |
11220-AC000 |
US $240.48 |
||
|
11220
|
11220
11220-AC000 Insulator-Engine Mounting, Front0306--01 ~ ; *VQ35DE |
11220-AC000 |
US $240.48 |
||
|
11232
|
11232
11232-AF400 Bracket-Engine Mounting, Rh0306--01 ~ ; *VQ35DE |
11232-AF400 |
US $71.71 |
||
|
11233
|
11233
11233-AF401 Bracket-Engine Mounting, Lh0306--01 ~ ; *VQ35DE |
11233-AF401 |
US $71.71 |
||
|
11235
|
11235
11284-AF400 Plate-Heat Shield0306--01 ~ ; *VQ35DE |
11284-AF400 |
US $9.94 |
||
|
11235
|
11235
11284-AF410 Plate-Heat Shield0306--01 ~ ; *VQ35DE |
11284-AF410 |
US $10.08 |
||
|
11235+A
|
11235+A
11284-AF410 Plate-Heat Shield0306--01 ~ ; *VQ35DE |
11284-AF410 |
US $10.08 |
||
|
11320
|
11320
11320AG000 Insulator-Engine Mounting, Rear0306--01 ~ ; *VQ35DE |
11320AG000 |
from US $77.70 |
||
|
11340
|
11340
11331-CD000 Member Assy-Engine Mounting, Rear0306--01 ~ ; *VQ35DE |
11331-CD000 |
US $129.46 |
||
|
11375
|
11375
11375-AM600 Damper Assy-Dynamic0306--01 ~ ; *VQ35DE |
11375-AM600 |
US $151.20 |
||
|
11510A
|
11510A
11298-4M411 Bolt0306--01 ~ ; *VQ35DE |
11298-4M411 |
from US $1.76 |
||
|
11510A
|
11510A
01125-01731 BOLT0306--01 ~ ; *VQ35DE |
01125-01731 |
US $4.03 |
||
|
11510A
|
11510A
11298-4M411 Bolt0306--01 ~ ; *VQ35DE |
11298-4M411 |
from US $1.76 |
||
|
11510A
|
11510A
01125-01731 BOLT0306--01 ~ ; *VQ35DE |
01125-01731 |
US $4.03 |
||
|
11510AA
|
11510AA
01125-01731 BOLT0306--01 ~ ; *VQ35DE |
01125-01731 |
US $4.03 |
||
|
11520A
|
11520A
11298AH000 Bolt0306--01 ~ ; *VQ35DE |
11298AH000 |
US $3.46 |
||
|
11520A
|
11520A
11298-AG001 Bolt0306--01 ~ ; *VQ35DE |
11298-AG001 |
from US $1.72 |
||
|
11520A
|
11520A
11298-AG900 Bolt0306--01 ~ ; *VQ35DE |
11298-AG900 |
US $2.45 |
||
|
11520AA
|
11520AA
11298-AG001 Bolt0306--01 ~ ; *VQ35DE |
11298-AG001 |
from US $1.72 |
||
|
11520AB
|
11520AB
11298-AG900 Bolt0306--01 ~ ; *VQ35DE |
11298-AG900 |
US $2.45 |
||
|
11520B
|
11520B
0122500062 NUT0306--01 ~ ; *VQ35DE |
0122500062 |
from US $1.67 |
