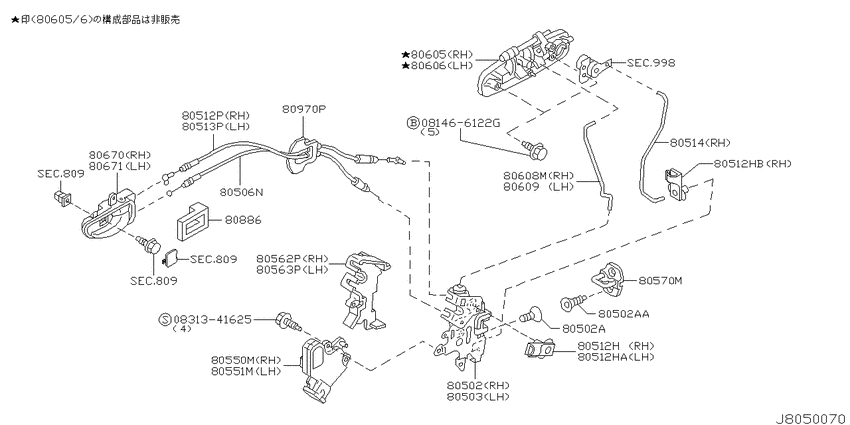

Front door lock & handle (2003-06-01 ~ ; W) Diagram Nissan STAGEA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
0831341625
|
0831341625
08313-41625
Болт
|
08313-41625 |
— | ||
|
80502
|
80502
80502AR000 Lock Assy-Front Door, Rh0306--01 ~ ; W |
80502AR000 |
US $110.45 |
||
|
80502
|
80502
80599-AX000 Screw0306--01 ~ ; W |
80599-AX000 |
US $2.45 |
||
|
80502
|
80502
0143300181 SCREW0306--01 ~ ; W |
0143300181 |
US $2.45 |
||
|
80502A
|
80502A
80599-AX000 Screw0306--01 ~ ; W |
80599-AX000 |
US $2.45 |
||
|
80502A
|
80502A
0143300181 SCREW0306--01 ~ ; W |
0143300181 |
US $2.45 |
||
|
80502AA
|
80502AA
0143300181 SCREW0306--01 ~ ; W |
0143300181 |
US $2.45 |
||
|
80503
|
80503
80503-AL500 Lock Assy-Front Door, Lh0306--01 ~ ; W |
80503-AL500 |
US $110.45 |
||
|
80506N
|
80506N
80506-AR000 Cable-Front Door Inside Handle0306--01 ~ ; W |
80506-AR000 |
US $11.23 |
||
|
80512H
|
80512H
80532AA100 Holder-Rod0306--01 ~ ; W |
80532AA100 |
US $1.93 |
||
|
80512H
|
80512H
80533AA100 Holder-Rod0306--01 ~ ; W |
80533AA100 |
US $1.93 |
||
|
80512H
|
80512H
80533AA100 Holder-Rod0306--01 ~ ; W |
80533AA100 |
US $1.93 |
||
|
80512HA
|
80512HA
80533AA100 Holder-Rod0306--01 ~ ; W |
80533AA100 |
US $1.93 |
||
|
80512HB
|
80512HB
80533AA100 Holder-Rod0306--01 ~ ; W |
80533AA100 |
US $1.93 |
||
|
80512P
|
80512P
80512-AR000 Cable-Lock Knob, Rh0306--01 ~ ; W |
80512-AR000 |
US $11.23 |
||
|
80513P
|
80513P
80513-AR000 Cable-Lock Knob, Lh0306--01 ~ ; W |
80513-AR000 |
US $11.23 |
||
|
80514
|
80514
80514AL500 Rod-Key Lock, Rh0306--01 ~ ; W |
80514AL500 |
US $8.93 |
||
|
80550M
|
80550M
80552-AL510 Actuator-Auto Door Lock, Front Rh0306--01 ~ ; W |
80552-AL510 |
US $91.30 |
||
|
80551M
|
80551M
80553-AL500 Actuator-Auto Door Lock, Front Lh0306--01 ~ ; W |
80553-AL500 |
US $145.44 |
||
|
80562P
|
80562P
80562AR000 Cover-Front Door Lock, Rh0306--01 ~ ; W |
80562AR000 |
US $11.38 |
||
|
80563P
|
80563P
80563-AR000 Cover-Front Door Lock, Lh0306--01 ~ ; W |
80563-AR000 |
US $11.38 |
||
|
80570M
|
80570M
80570-AA200 Striker Assy-Front Door Lock0306--01 ~ ; W |
80570-AA200 |
US $32.98 |
||
|
80605
|
80605
80606-AQ104 Handle Assy-Front Door Outside, Rh0306--01 ~ ; W |
80606-AQ104 |
US $120.96 |
||
|
80605
|
80605
80606-AQ107 Handle Assy-Front Door Outside, Rh0306--01 ~ ; W |
80606-AQ107 |
US $120.96 |
||
|
80605
|
80605
80606-AQ111 Handle Assy-Front Door Outside, Rh0306--01 ~ ; W |
80606-AQ111 |
US $120.96 |
||
|
80606
|
80606
82607-AQ104 Handle Assy-Front Door Outside, Lh0306--01 ~ ; W |
82607-AQ104 |
US $120.96 |
||
|
80606
|
80606
82607-AQ107 Handle Assy-Front Door Outside, Lh0306--01 ~ ; W |
82607-AQ107 |
US $120.96 |
||
|
80606
|
80606
82607-AQ111 Handle Assy-Front Door Outside, Lh0306--01 ~ ; W |
82607-AQ111 |
US $120.96 |
||
|
80608M
|
80608M
80608-AL500 Rod Assy-Outside Handle, Rh0306--01 ~ ; W |
80608-AL500 |
US $12.67 |
||
|
80609
|
80609
80609-AL500 Rod Assy-Outside Handle, Lh0306--01 ~ ; W |
80609-AL500 |
US $12.67 |
||
|
80670
|
80670
80670-AL510 Handle Assy-Door Inside, Rh0306--01 ~ ; W |
80670-AL510 |
US $33.84 |
||
|
80671
|
80671
80671-AL510 Handle Assy-Door Inside, Lh0306--01 ~ ; W |
80671-AL510 |
US $33.84 |
||
|
80886
|
80886
80886-AQ000 Seal-Inside Handle0306--01 ~ ; W |
80886-AQ000 |
US $5.18 |
||
|
809
|
Front door trimming
809
|
||||
|
809
|
Front door trimming
809
|
||||
|
809
|
Front door trimming
809
|
||||
|
80970P
|
80970P
80970-AR000 Grommet-Lock Knob0306--01 ~ ; W |
80970-AR000 |
US $7.20 |
||
|
998
|
Key set & blank key
998
|
||||
