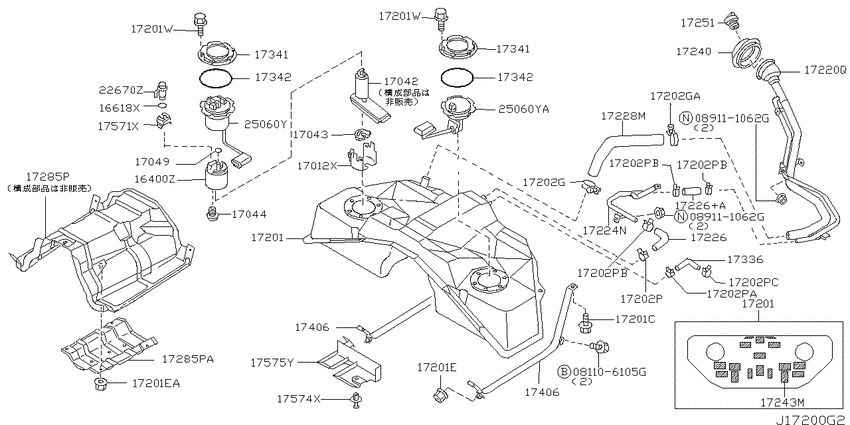

Fuel tank (2003-06-01 ~ ; VQ35DE) Diagram Nissan STAGEA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106105G
|
081106105G
08110-6105G
Bolt-hexagon
|
08110-6105G |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
16400Z
|
16400Z
164002Y505 Strainer Assy-Fuel0306--01 ~ ; VQ35DE |
164002Y505 |
US $75.75 |
||
|
16618X
|
16618X
166182Y501 Seal-O Ring0306--01 ~ ; VQ35DE |
166182Y501 |
from US $4.18 |
||
|
17012X
|
17012X
17012-8H300 Bracket-Fuel Pump0306--01 ~ ; VQ35DE |
17012-8H300 |
US $15.41 |
||
|
17042
|
17042
17042-5Y700 Pump Assy-Fuel0306--01 ~ ; *VQ35DE |
17042-5Y700 |
from US $200.61 |
||
|
17042
|
17042
17042-AL500 Pump Assy-Fuel0306--01 ~ ; VQ35DE |
17042-AL500 |
US $618.96 |
||
|
17042
|
17042
17042-AL510 Pump Assy-Fuel0306--01 ~ ; *VQ35DE |
17042-AL510 |
US $604.63 |
||
|
17043
|
17043
170434M405 Support-Pump, Rubber0306--01 ~ ; VQ35DE |
170434M405 |
US $15.53 |
||
|
17044
|
17044
170444M405 Packing-Fuel Pump0306--01 ~ ; VQ35DE |
170444M405 |
from US $5.31 |
||
|
17049
|
17049
170494M400 Seal-O Ring0306--01 ~ ; VQ35DE |
170494M400 |
from US $5.61 |
||
|
17201
|
17201
17202-AC200 Tank Assy-Fuel0306--01 ~ ; VQ35DE |
17202-AC200 |
US $865.18 |
||
|
17201
|
17201
0112106671 BOLT0306--01 ~ ; VQ35DE |
0112106671 |
US $2.45 |
||
|
17201
|
17201
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201
|
17201
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201
|
17201
0143601821 SCREW0306--01 ~ ; VQ35DE |
0143601821 |
from US $0.70 |
||
|
17201
|
17201
17202-AC200 Tank Assy-Fuel0306--01 ~ ; VQ35DE |
17202-AC200 |
US $865.18 |
||
|
17201
|
17201
0112106671 BOLT0306--01 ~ ; VQ35DE |
0112106671 |
US $2.45 |
||
|
17201
|
17201
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201
|
17201
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201
|
17201
0143601821 SCREW0306--01 ~ ; VQ35DE |
0143601821 |
from US $0.70 |
||
|
17201C
|
17201C
0112106671 BOLT0306--01 ~ ; VQ35DE |
0112106671 |
US $2.45 |
||
|
17201E
|
17201E
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201E
|
17201E
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201EA
|
17201EA
0122100351 NUT0306--01 ~ ; VQ35DE |
0122100351 |
from US $0.86 |
||
|
17201W
|
17201W
0143601821 SCREW0306--01 ~ ; VQ35DE |
0143601821 |
from US $0.70 |
||
|
17201W
|
17201W
0143601821 SCREW0306--01 ~ ; VQ35DE |
0143601821 |
from US $0.70 |
||
|
17202G
|
17202G
01555-00291
CLAMP-HOSE
0306--01 ~ ; VQ35DE |
01555-00291 |
— | ||
| replacement | |||||
|
17202G
|
17202G
0155500911 CLAMP-HOSE0306--01 ~ ; VQ35DE |
0155500911 |
from US $3 |
||
|
17202G
|
17202G
01555-00291
CLAMP-HOSE
0306--01 ~ ; VQ35DE |
01555-00291 |
— | ||
| replacement | |||||
|
17202G
|
17202G
0155500911 CLAMP-HOSE0306--01 ~ ; VQ35DE |
0155500911 |
from US $3 |
||
|
17202GA
|
17202GA
01555-00291
CLAMP-HOSE
0306--01 ~ ; VQ35DE |
01555-00291 |
— | ||
| replacement | |||||
|
17202GA
|
17202GA
0155500911 CLAMP-HOSE0306--01 ~ ; VQ35DE |
0155500911 |
from US $3 |
||
|
17202P
|
17202P
0155800111
CLAMP
0306--01 ~ ; *VQ35DE |
0155800111 |
— | ||
| replacement | |||||
|
17202P
|
17202P
01558-00401 CLAMP-HOSE0306--01 ~ ; *VQ35DE |
01558-00401 |
from US $2.89 |
||
|
17202P
|
17202P
16439-V5001
Clamp-Hose, A
0306--01 ~ ; VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500C Clamp-Hose0306--01 ~ ; VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202P
|
17202P
0155800111
CLAMP
0306--01 ~ ; VQ35DE |
0155800111 |
— | ||
| replacement | |||||
|
17202P
|
17202P
01558-00401 CLAMP-HOSE0306--01 ~ ; VQ35DE |
01558-00401 |
from US $2.89 |
||
|
17202P
|
17202P
16439-V5001
Clamp-Hose, A
0306--01 ~ ; *VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500C Clamp-Hose0306--01 ~ ; *VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202P
|
17202P
16439-V5001
Clamp-Hose, A
0306--01 ~ ; VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500C Clamp-Hose0306--01 ~ ; VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202P
|
17202P
0155800111
CLAMP
0306--01 ~ ; VQ35DE |
0155800111 |
— | ||
| replacement | |||||
|
17202P
|
17202P
01558-00401 CLAMP-HOSE0306--01 ~ ; VQ35DE |
01558-00401 |
from US $2.89 |
||
|
17202PA
|
17202PA
0155800111
CLAMP
0306--01 ~ ; VQ35DE |
0155800111 |
— | ||
| replacement | |||||
|
17202PA
|
17202PA
01558-00401 CLAMP-HOSE0306--01 ~ ; VQ35DE |
01558-00401 |
from US $2.89 |
||
|
17202PA
|
17202PA
16439-V5001
Clamp-Hose, A
0306--01 ~ ; *VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202PA
|
17202PA
16439V500C Clamp-Hose0306--01 ~ ; *VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202PB
|
17202PB
16439-V5001
Clamp-Hose, A
0306--01 ~ ; VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202PB
|
17202PB
16439V500C Clamp-Hose0306--01 ~ ; VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202PB
|
17202PB
16439-V5001
Clamp-Hose, A
0306--01 ~ ; VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202PB
|
17202PB
16439V500C Clamp-Hose0306--01 ~ ; VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202PB
|
17202PB
16439-V5001
Clamp-Hose, A
0306--01 ~ ; VQ35DE |
16439-V5001 |
— | ||
| replacement | |||||
|
17202PB
|
17202PB
16439V500C Clamp-Hose0306--01 ~ ; VQ35DE |
16439V500C |
from US $2.76 |
||
|
17202PC
|
17202PC
0155800111
CLAMP
0306--01 ~ ; VQ35DE |
0155800111 |
— | ||
| replacement | |||||
|
17202PC
|
17202PC
01558-00401 CLAMP-HOSE0306--01 ~ ; VQ35DE |
01558-00401 |
from US $2.89 |
||
|
17220Q
|
17220Q
17221AQ000 Tube Assy-Filler0306--01 ~ ; VQ35DE |
17221AQ000 |
US $260.64 |
||
|
17224N
|
17224N
17224AL510
Tube-Ventilation
0306--01 ~ ; VQ35DE |
17224AL510 |
— | ||
|
17226
|
17226
17226AL505 Hose-Ventilation0306--01 ~ ; VQ35DE |
17226AL505 |
US $12.38 |
||
|
17226
|
17226
17226-AL510 Hose-Ventilation0306--01 ~ ; VQ35DE |
17226-AL510 |
US $14.03 |
||
|
17226+A
|
17226+A
17226-AL510 Hose-Ventilation0306--01 ~ ; VQ35DE |
17226-AL510 |
US $14.03 |
||
|
17228M
|
17228M
17228-AL500 Hose-Filler0306--01 ~ ; VQ35DE |
17228-AL500 |
US $45.09 |
||
|
17240
|
17240
17240AN000 Grommet-Filler Base0306--01 ~ ; VQ35DE |
17240AN000 |
from US $7.76 |
||
|
17243M
|
17243M
17243-2Y010 Shim-Fuel Tank0306--01 ~ ; VQ35DE; 100X60X2 |
17243-2Y010 |
US $7.34 |
||
|
17243M
|
17243M
17243-AL500 Shim-Fuel Tank0306--01 ~ ; VQ35DE; 100X60X6 |
17243-AL500 |
US $5.04 |
||
|
17243M
|
17243M
17243-AL501 Shim-Fuel Tank0306--01 ~ ; VQ35DE; 100X30X6 |
17243-AL501 |
US $6.48 |
||
|
17251
|
17251
1725179970 Cap Assy-Filler0306--01 ~ ; VQ35DE |
1725179970 |
from US $32.58 |
||
|
17285P
|
17285P
17285-AL501 Protector-Fuel Tank0306--01 ~ ; VQ35DE |
17285-AL501 |
US $224.64 |
||
|
17285P
|
17285P
17285AL520 Protector-Fuel Tank0306--01 ~ ; VQ35DE |
17285AL520 |
US $29.95 |
||
|
17285PA
|
17285PA
17285AL520 Protector-Fuel Tank0306--01 ~ ; VQ35DE |
17285AL520 |
US $29.95 |
||
|
17336
|
17336
17336-AL505 Hose-Evaporation0306--01 ~ ; VQ35DE |
17336-AL505 |
US $14.03 |
||
|
17336
|
17336
17336-AL501 Hose-Evaporation0306--01 ~ ; VQ35DE |
17336-AL501 |
US $14.83 |
||
|
17341
|
17341
1734140U00 Retainer-Fuel Gauge0306--01 ~ ; VQ35DE |
1734140U00 |
from US $4.14 |
||
|
17341
|
17341
1734140U00 Retainer-Fuel Gauge0306--01 ~ ; VQ35DE |
1734140U00 |
from US $4.14 |
||
|
17342
|
17342
1734201A00 Seal-O Ring, Fuel Gauge0306--01 ~ ; VQ35DE |
1734201A00 |
from US $16.50 |
||
|
17342
|
17342
1734201A00 Seal-O Ring, Fuel Gauge0306--01 ~ ; VQ35DE |
1734201A00 |
from US $16.50 |
||
|
17406
|
17406
17406AL500 Band Assy-Fuel Tank Mounting0306--01 ~ ; VQ35DE |
17406AL500 |
US $46.37 |
||
|
17406
|
17406
17406AL500 Band Assy-Fuel Tank Mounting0306--01 ~ ; VQ35DE |
17406AL500 |
US $46.37 |
||
|
17571X
|
17571X
17571-2Y500
Clip
0306--01 ~ ; VQ35DE |
17571-2Y500 |
— | ||
| replacement | |||||
|
17571X
|
17571X
175712Y50A Clip0306--01 ~ ; VQ35DE |
175712Y50A |
US $8.32 |
||
|
17574X
|
17574X
175750W010 Clip0306--01 ~ ; VQ35DE |
175750W010 |
US $3.60 |
||
|
17575Y
|
17575Y
17575AL511 Protector-Fuel Tube0306--01 ~ ; VQ35DE |
17575AL511 |
US $18.43 |
||
|
22670Z
|
22670Z
22670-8H300 Regulator Assy-Pressure0306--01 ~ ; *VQ35DE |
22670-8H300 |
from US $46.22 |
||
|
22670Z
|
22670Z
22670-AL500 Regulator Assy-Pressure0306--01 ~ ; VQ35DE |
22670-AL500 |
US $84.14 |
||
|
25060Y
|
25060Y
25060-AL500 Sender Unit-Fuel Gauge0306--01 ~ ; VQ35DE |
25060-AL500 |
US $230.40 |
||
|
25060Y
|
25060Y
25060-AL511
Sender Unit-Fuel Gauge
0306--01 ~ ; VQ35DE |
25060-AL511 |
— | ||
| replacement | |||||
|
25060Y
|
25060Y
25060AL51A Sender Unit-Fuel Gauge0306--01 ~ ; VQ35DE |
25060AL51A |
US $180.95 |
||
|
25060YA
|
25060YA
25060-AL511
Sender Unit-Fuel Gauge
0306--01 ~ ; VQ35DE |
25060-AL511 |
— | ||
| replacement | |||||
|
25060YA
|
25060YA
25060AL51A Sender Unit-Fuel Gauge0306--01 ~ ; VQ35DE |
25060AL51A |
US $180.95 |
||
