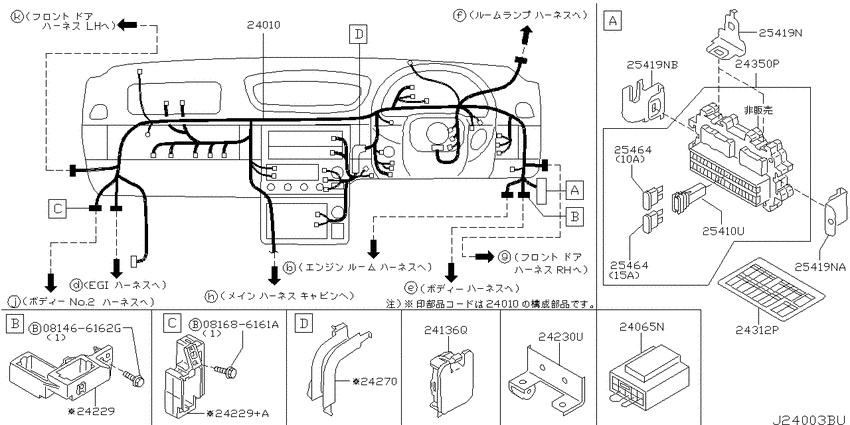

Wiring (2003-06-01 ~ ; ﾒｲﾝﾊｰﾈｽ; W) Diagram Nissan STAGEA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
24010
|
24010
24010-1A308
Harness Assy-Main
0306--01 ~ ; *W; [K116] |
24010-1A308 |
— | ||
|
24010
|
24010
24010-1A309
Harness Assy-Main
0306--01 ~ ; *W; [K116] |
24010-1A309 |
— | ||
|
24065N
|
24065N
24167-AQ000 Harness-Sub0306--01 ~ ; *W |
24167-AQ000 |
US $8.35 |
||
|
24136Q
|
24136Q
24346-AG100 Bracket Assy-Connector0306--01 ~ ; *W |
24346-AG100 |
US $5.18 |
||
|
24229
|
24229
24356-AL500 Bracket-Junction0306--01 ~ ; *W |
24356-AL500 |
US $13.25 |
||
|
24229
|
24229
24356-AG003 Bracket-Junction0306--01 ~ ; *W |
24356-AG003 |
US $18 |
||
|
24229+A
|
24229+A
24356-AG003 Bracket-Junction0306--01 ~ ; *W |
24356-AG003 |
US $18 |
||
|
24230U
|
24230U
24230-CD010 Bracket0306--01 ~ ; *W |
24230-CD010 |
US $10.51 |
||
| replacement | |||||
|
24230U
|
24230U
24230-CD05A
Bracket
0306--01 ~ ; *W |
24230-CD05A |
— | ||
|
24270
|
24270
24270-AL500 Protector-Harness0306--01 ~ ; *W |
24270-AL500 |
US $7.92 |
||
|
24312P
|
24312P
24313-AL900 Label-Fuse Block0306--01 ~ ; *W |
24313-AL900 |
US $4.90 |
||
|
24350P
|
24350P
24350-AL50A Block-Junction0410--01 ~ ; W |
24350-AL50A |
US $112.61 |
||
|
24350P
|
24350P
24350-AL900 Block-Junction0306--01 ~ 0410--01; *W |
24350-AL900 |
US $113.62 |
||
|
24350P
|
24350P
24350AL90A Block-Junction0410--01 ~ ; *W |
24350AL90A |
US $123.84 |
||
|
25410U
|
25410U
24321-79902 Puller-Fuse0306--01 ~ ; *W |
24321-79902 |
US $3.46 |
||
|
25419N
|
25419N
24317-AL500 Bracket-Fuse Block0306--01 ~ ; *W |
24317-AL500 |
US $7.34 |
||
|
25419N
|
25419N
24317-AL501 Bracket-Fuse Block0306--01 ~ ; *W |
24317-AL501 |
US $7.34 |
||
|
25419N
|
25419N
24317-AL502 Bracket-Fuse Block0306--01 ~ ; *W |
24317-AL502 |
US $7.34 |
||
|
25419NA
|
25419NA
24317-AL501 Bracket-Fuse Block0306--01 ~ ; *W |
24317-AL501 |
US $7.34 |
||
|
25419NB
|
25419NB
24317-AL502 Bracket-Fuse Block0306--01 ~ ; *W |
24317-AL502 |
US $7.34 |
||
|
25464
|
25464
24319C9910 Fuse0306--01 ~ ; *W; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0306--01 ~ ; *W; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0306--01 ~ ; *W; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0306--01 ~ ; *W; 15A |
24319C9915 |
from US $0.86 |
||
