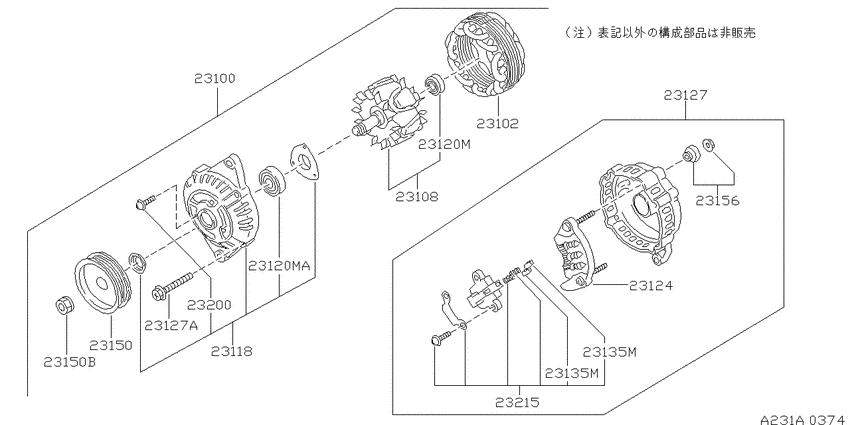

Alternator (1997-11-01 ~ 1998-08-01; 三菱; RB26DETT) Diagram Nissan STAGEA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-0V010 Alternator Assy9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23100-0V010 |
US $1,008 |
||
|
23100
|
23100
0122100381 NUT9711--01 ~ 9808--01; RB26DETT |
0122100381 |
from US $4.51 |
||
|
23100
|
23100
11058H1001 Washer-Plain9711--01 ~ 9808--01; RB26DETT |
11058H1001 |
from US $1.87 |
||
|
23100
|
23100
11713-42L10 Spacer-Alternator9711--01 ~ 9808--01; RB26DETT |
11713-42L10 |
US $8.75 |
||
|
23102
|
23102
23102-85L10 Stator Assy9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23102-85L10 |
US $308 |
||
|
23108
|
23108
23108-0P610 Rotor Assy9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23108-0P610 |
US $336 |
||
|
23118
|
23118
23118-70T10 Cover Assy-Front9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23118-70T10 |
US $107.80 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $33.15 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $21.34 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $21.34 |
||
|
23124
|
23124
23124-0V010 Rectifier Assy9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23124-0V010 |
US $162.40 |
||
|
23127
|
23127
23127-0V010 Cover Assy-Rear9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23127-0V010 |
US $609 |
||
|
23127
|
23127
23131-20P10 Bolt-Through9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $4.90 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $4.90 |
||
|
23135M
|
23135M
231420B000 Brush-F9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.16 |
||
|
23135M
|
23135M
231420B000 Brush-F9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.16 |
||
|
23150
|
23150
23150-0P511 Pulley Assy9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23150-0P511 |
US $96.88 |
||
|
23150
|
23150
23153-70T12 Plate-Terminal9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23153-70T12 |
US $4.06 |
||
|
23150B
|
23150B
23153-70T12 Plate-Terminal9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23153-70T12 |
US $4.06 |
||
|
23156
|
23156
23156-1E810 Terminal Assy-B9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23156-1E810 |
US $10.64 |
||
|
23200
|
23200
23115-20P10 Screw Set9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23115-20P10 |
US $4.90 |
||
|
23215
|
23215
23215-0V010 Regulator Assy-Ic9711--01 ~ 9808--01; RB26DETT; ﾐﾂﾋﾞｼ |
23215-0V010 |
US $260.40 |
||
