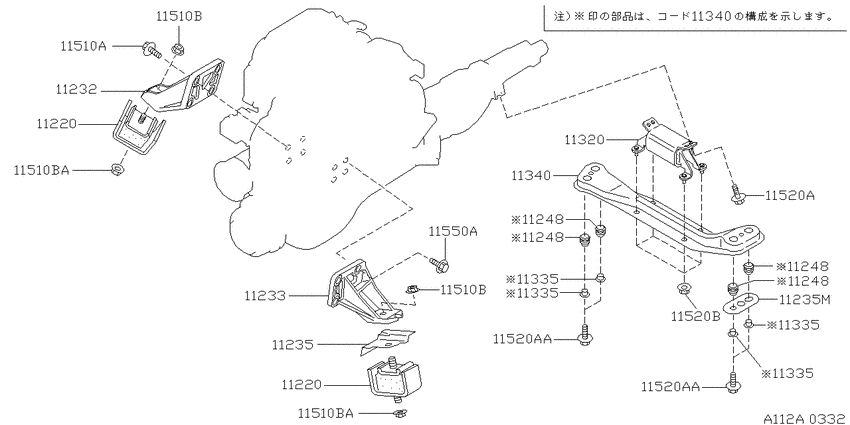

Engine & transmission mounting (1997-11-01 ~ 1998-08-01; RB26DETT) Diagram Nissan STAGEA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
11220-24U00 Insulator-Engine Mounting, Front9711--01 ~ 9808--01; RB26DETT |
11220-24U00 |
US $92.40 |
||
|
11220
|
11220
11220-24U00 Insulator-Engine Mounting, Front9711--01 ~ 9808--01; RB26DETT |
11220-24U00 |
US $92.40 |
||
|
11232
|
11232
11232-01U00
Bracket-Engine Mounting, Rh
9711--01 ~ 9808--01; RB26DETT |
11232-01U00 |
— | ||
|
11233
|
11233
1123301U00
Bracket-Engine Mounting, Lh
9711--01 ~ 9808--01; RB26DETT |
1123301U00 |
— | ||
|
11235
|
11235
1128424U00 Plate-Heat Shield9711--01 ~ 9808--01; RB26DETT |
1128424U00 |
US $10.78 |
||
|
11235
|
11235
11384-01U00 Plate-Heat Shield9711--01 ~ 9808--01; RB26DETT |
11384-01U00 |
US $8.48 |
||
|
11235M
|
11235M
11384-01U00 Plate-Heat Shield9711--01 ~ 9808--01; RB26DETT |
11384-01U00 |
US $8.48 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9711--01 ~ 9808--01; RB26DETT |
1124885E01 |
US $12.07 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9711--01 ~ 9808--01; RB26DETT |
1124885E01 |
US $12.07 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9711--01 ~ 9808--01; RB26DETT |
1124885E01 |
US $12.07 |
||
|
11248
|
11248
1124885E01 PAD-ENGINE MOUNTING MEMBER9711--01 ~ 9808--01; RB26DETT |
1124885E01 |
US $12.07 |
||
|
11320
|
11320
1132024U01 Insulator-Engine Mounting, Rear9711--01 ~ 9808--01; RB26DETT |
1132024U01 |
US $92.40 |
||
|
11335
|
11335
11394-01U01 Spacer9711--01 ~ 9808--01; RB26DETT |
11394-01U01 |
US $11 |
||
|
11335
|
11335
11394-01U01 Spacer9711--01 ~ 9808--01; RB26DETT |
11394-01U01 |
US $11 |
||
|
11335
|
11335
11394-01U01 Spacer9711--01 ~ 9808--01; RB26DETT |
11394-01U01 |
US $11 |
||
|
11335
|
11335
11394-01U01 Spacer9711--01 ~ 9808--01; RB26DETT |
11394-01U01 |
US $11 |
||
|
11340
|
11340
1131005U00 Member Assy-Engine Mounting, Rear9711--01 ~ 9808--01; RB26DETT |
1131005U00 |
US $218.40 |
||
|
11340
|
11340
1131005U00 Member Assy-Engine Mounting, Rear9711--01 ~ 9808--01; RB26DETT |
1131005U00 |
US $218.40 |
||
|
11510A
|
11510A
01125-02861 BOLT9711--01 ~ 9808--01; RB26DETT |
01125-02861 |
US $4.23 |
||
|
11510B
|
11510B
01225-00671 NUT9711--01 ~ 9808--01; RB26DETT |
01225-00671 |
US $4.90 |
||
|
11510B
|
11510B
01225-00671 NUT9711--01 ~ 9808--01; RB26DETT |
01225-00671 |
US $4.90 |
||
|
11510B
|
11510B
01225-00671 NUT9711--01 ~ 9808--01; RB26DETT |
01225-00671 |
US $4.90 |
||
|
11510B
|
11510B
01225-00671 NUT9711--01 ~ 9808--01; RB26DETT |
01225-00671 |
US $4.90 |
||
|
11510BA
|
11510BA
01225-00671 NUT9711--01 ~ 9808--01; RB26DETT |
01225-00671 |
US $4.90 |
||
|
11510BA
|
11510BA
01225-00671 NUT9711--01 ~ 9808--01; RB26DETT |
01225-00671 |
US $4.90 |
||
|
11520A
|
11520A
01121-03441 BOLT9711--01 ~ 9808--01; RB26DETT |
01121-03441 |
US $9.10 |
||
|
11520A
|
11520A
0112105071 BOLT9711--01 ~ 9808--01; RB26DETT |
0112105071 |
US $2.79 |
||
|
11520AA
|
11520AA
0112105071 BOLT9711--01 ~ 9808--01; RB26DETT |
0112105071 |
US $2.79 |
||
|
11520AA
|
11520AA
0112105071 BOLT9711--01 ~ 9808--01; RB26DETT |
0112105071 |
US $2.79 |
||
|
11520B
|
11520B
0122500481
NUT
9711--01 ~ 9808--01; RB26DETT |
0122500481 |
— | ||
|
11550A
|
11550A
01125-02861 BOLT9711--01 ~ 9808--01; RB26DETT |
01125-02861 |
US $4.23 |
