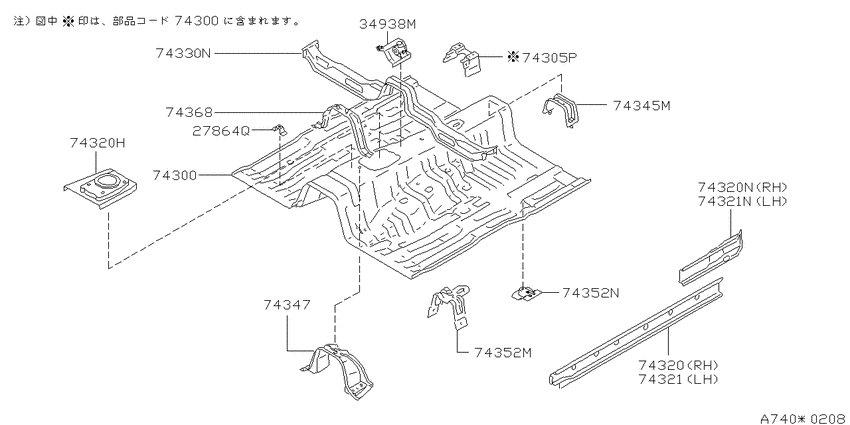

Floor panel (1997-11-01 ~ 1998-08-01; W) Diagram Nissan STAGEA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27864Q
|
27864Q
27864-05U00 Bracket-Duct9711--01 ~ 9808--01; W |
27864-05U00 |
US $22.82 |
||
|
34938M
|
34938M
34938-23U11
Bracket-Cable Mounting
9711--01 ~ 9808--01; W |
34938-23U11 |
— | ||
|
74300
|
74300
74312-23U00
ﾌﾛｱ,ﾌﾛﾝﾄ
9711--01 ~ 9808--01; W |
74312-23U00 |
— | ||
|
74300
|
74300
01658-00021 PLUG-RUBBER9711--01 ~ 9808--01; W |
01658-00021 |
from US $0.48 |
||
|
74300
|
74300
01658-00261 PLUG-RUBBER9711--01 ~ 9808--01; W |
01658-00261 |
US $2.38 |
||
|
74300
|
74300
062121200P Grommet9711--01 ~ 9808--01; W |
062121200P |
US $2.38 |
||
|
74300
|
74300
062121200P Grommet9711--01 ~ 9808--01; W |
062121200P |
US $2.38 |
||
|
74300
|
74300
67816-68200 Plug-Front Floor9711--01 ~ 9808--01; W |
67816-68200 |
US $1.85 |
||
|
74300
|
74300
748164P000 Plug-Front Floor9711--01 ~ 9808--01; W |
748164P000 |
from US $1.85 |
||
|
74305P
|
74305P
74386-70T00 Bracket Assy-Sensor9711--01 ~ 9808--01; W |
74386-70T00 |
US $15.96 |
||
|
74320
|
74320
7645022U07
Sill-Inner, Rh
9711--01 ~ 9808--01; W |
7645022U07 |
— | ||
|
74320
|
74320
74320-05U00
Adapter Assy-Shift Lever Hole
9711--01 ~ 9808--01; W |
74320-05U00 |
— | ||
|
74320
|
74320
76454-70T10 Extension-Sill Inner Rh9711--01 ~ 9808--01; W |
76454-70T10 |
US $57.68 |
||
|
74320H
|
74320H
74320-05U00
Adapter Assy-Shift Lever Hole
9711--01 ~ 9808--01; W |
74320-05U00 |
— | ||
|
74320N
|
74320N
76454-70T10 Extension-Sill Inner Rh9711--01 ~ 9808--01; W |
76454-70T10 |
US $57.68 |
||
|
74321
|
74321
7645122U07
Sill-Inner, Lh
9711--01 ~ 9808--01; W |
7645122U07 |
— | ||
|
74321
|
74321
76455-70T10
Extension-Sill Inner Lh
9711--01 ~ 9808--01; W |
76455-70T10 |
— | ||
|
74321N
|
74321N
76455-70T10
Extension-Sill Inner Lh
9711--01 ~ 9808--01; W |
76455-70T10 |
— | ||
|
74330N
|
74330N
74330-72T00 Member Assy-Cross 2Nd9711--01 ~ 9808--01; W |
74330-72T00 |
US $159.60 |
||
|
74345M
|
74345M
74316-23U00 Bracket-Center Bearing Mounting9711--01 ~ 9808--01; W |
74316-23U00 |
US $46.90 |
||
|
74347
|
74347
74360-05U00 Bracket-Rear Engine Mounting9711--01 ~ 9808--01; W |
74360-05U00 |
US $141.40 |
||
|
74352M
|
74352M
74340-81L60 Bracket-Front Seat Mounting, Inner Rh9711--01 ~ 9808--01; W |
74340-81L60 |
US $55.72 |
||
|
74352N
|
74352N
74350-0V010 Bracket-Front Seat Mounting, Outer9711--01 ~ 9808--01; W |
74350-0V010 |
US $19.88 |
||
|
74368
|
74368
74368-23U00 Bracket Assy-Instrument Stay9711--01 ~ 9808--01; W |
74368-23U00 |
US $23.10 |
