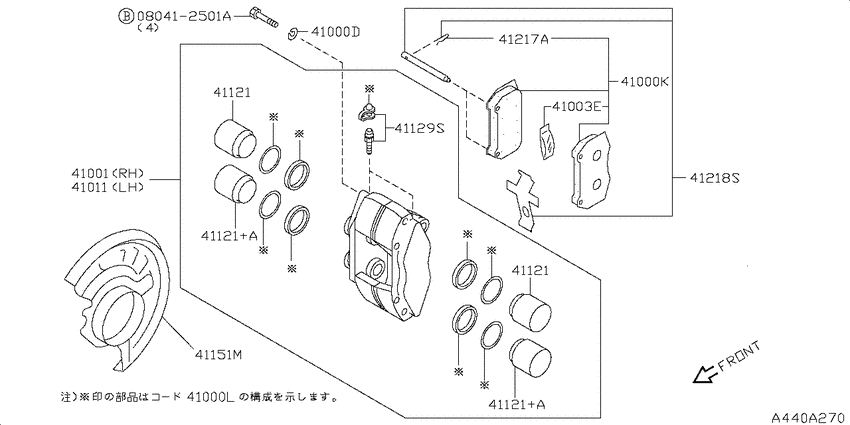

Front brake (1997-11-01 ~ 1998-08-01; RB26DETT) Diagram Nissan STAGEA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080412501A
|
080412501A
080412501A
Bolt-hexagon
|
080412501A |
— | ||
|
41000D
|
41000D
0131101251 WASHER9711--01 ~ 9808--01; RB26DETT |
0131101251 |
from US $0.57 |
||
|
41000K
|
41000K
4106012U87 Pad Kit-Disc Brake9711--01 ~ 9808--01; RB26DETT; [B102] |
4106012U87 |
US $584.81 |
||
|
41000L
|
41000L
AY600NS057 Seal Kit-Disc Brake9711--01 ~ 9808--01; RB26DETT |
AY600NS057 |
US $244.80 |
||
|
41001
|
41001
41001-24U00 Caliper Assy-Front Rh, W/o Pads Or Shims9711--01 ~ 9808--01; RB26DETT |
41001-24U00 |
US $1,708 |
||
|
41003E
|
41003E
4400314C10 Grease-Brake9711--01 ~ 9808--01; RB26DETT |
4400314C10 |
US $2.88 |
||
|
41011
|
41011
4101124U00 Caliper Assy-Front Lh, W/o Pads Or Shims9711--01 ~ 9808--01; RB26DETT |
4101124U00 |
US $1,708 |
||
|
41121
|
41121
4112112U00 Piston-Cylinder9711--01 ~ 9808--01; RB26DETT |
4112112U00 |
US $46.66 |
||
|
41121
|
41121
4112112U01 Piston-Cylinder9711--01 ~ 9808--01; RB26DETT |
4112112U01 |
US $46.66 |
||
|
41121
|
41121
4112112U00 Piston-Cylinder9711--01 ~ 9808--01; RB26DETT |
4112112U00 |
US $46.66 |
||
|
41121
|
41121
4112112U01 Piston-Cylinder9711--01 ~ 9808--01; RB26DETT |
4112112U01 |
US $46.66 |
||
|
41121+A
|
41121+A
4112112U01 Piston-Cylinder9711--01 ~ 9808--01; RB26DETT |
4112112U01 |
US $46.66 |
||
|
41121+A
|
41121+A
4112112U01 Piston-Cylinder9711--01 ~ 9808--01; RB26DETT |
4112112U01 |
US $46.66 |
||
|
41129S
|
41129S
41129-12U25 Cap And Screw Set9711--01 ~ 9808--01; RB26DETT |
41129-12U25 |
US $91.30 |
||
|
41151M
|
41151M
41150-12U15 Plate-Baffle9711--01 ~ 9808--01; RB26DETT; ﾐｷﾞ ﾖｳ |
41150-12U15 |
US $38.45 |
||
|
41151M
|
41151M
41160-12U15 Plate-Baffle9711--01 ~ 9808--01; RB26DETT; ﾋﾀﾞﾘ ﾖｳ |
41160-12U15 |
US $38.45 |
||
|
41217A
|
41217A
41218-24U00 Clip9711--01 ~ 9808--01; RB26DETT |
41218-24U00 |
US $14.26 |
||
|
41218S
|
41218S
4121812U26 Clip, Pin And Cross Spring Set9711--01 ~ 9808--01; RB26DETT |
4121812U26 |
US $97.14 |
