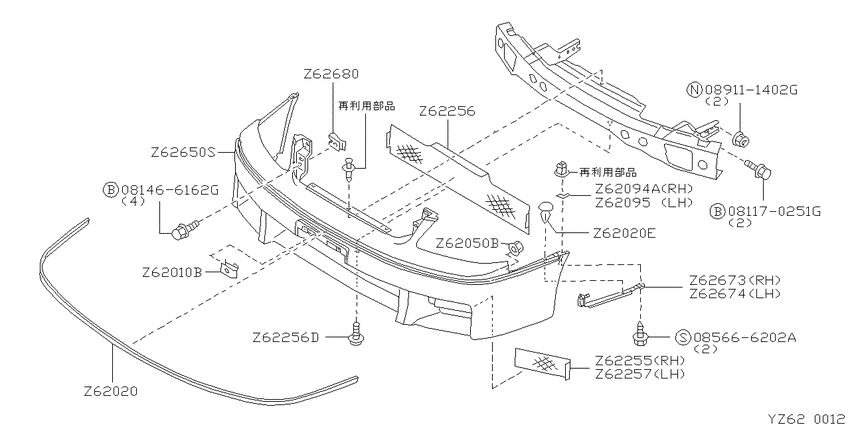

ﾌﾛﾝﾄﾊﾞﾝﾊﾟｰ&ｶﾞｰﾄﾞﾊﾞｰ (1997-11-01 ~ 1998-08-01; フロント バンパー; ｵｰﾃｯｸ ﾊﾞｰｼﾞｮﾝ) Diagram Nissan STAGEA
- Year
- 1997 - 1998
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081170251G
|
081170251G
081170251G
Bolt-hexagon
|
081170251G |
— | ||
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.68 |
||
|
085666202A
|
085666202A
085666202A SCREWTAPPING |
085666202A |
from US $0.52 |
||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
Z62010B
|
Z62010B
0124101051 NUT-SPRING9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
0124101051 |
from US $1.07 |
||
|
Z62020
|
Z62020
62072-0A900
ﾓ-ﾙﾃﾞﾝｸﾞ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-
9711--01 ~ 9807--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝ ｼﾖｳ[K116] |
62072-0A900 |
— | ||
|
Z62020
|
Z62020
0155301A50 Clamp-Propeller Shaft Balance9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
0155301A50 |
from US $0.52 |
||
|
Z62020E
|
Z62020E
0155301A50 Clamp-Propeller Shaft Balance9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
0155301A50 |
from US $0.52 |
||
|
Z62050B
|
Z62050B
0122500831 NUT9711--01 ~ ; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
0122500831 |
US $1.93 |
||
|
Z62094A
|
Z62094A
6209424U00 Spacer-Bumper Side, Rh9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
6209424U00 |
US $5.81 |
||
|
Z62095
|
Z62095
6209524U00 Spacer-Bumper Side, Lh9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
6209524U00 |
US $5.81 |
||
|
Z62255
|
Z62255
62254-0A901
ｸﾞﾘﾙ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ- rh
9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ[K116] |
62254-0A901 |
— | ||
|
Z62256
|
Z62256
62254-0A900
ｸﾞﾘﾙ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-
9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ[K116] |
62254-0A900 |
— | ||
|
Z62256
|
Z62256
01141-00431 BOLT9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
01141-00431 |
US $2.91 |
||
|
Z62256D
|
Z62256D
01141-00431 BOLT9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
01141-00431 |
US $2.91 |
||
|
Z62257
|
Z62257
62255-0A901
ｸﾞﾘﾙ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ- lh
9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ[K116] |
62255-0A901 |
— | ||
|
Z62650S
|
Z62650S
62022-0A903
ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-
9711--01 ~ 9808--01; W; (#WK1),ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ[K116] |
62022-0A903 |
— | ||
|
Z62650S
|
Z62650S
62022-0A904
ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-
9711--01 ~ 9808--01; W; (#KR4),ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ[K116] |
62022-0A904 |
— | ||
|
Z62650S
|
Z62650S
62022-0A905
ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-
9711--01 ~ 9808--01; W; (#KJ6),ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ[K116] |
62022-0A905 |
— | ||
|
Z62673
|
Z62673
622200V000 Bracket-Front Bumper Side, Rh9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
622200V000 |
US $15.91 |
||
|
Z62674
|
Z62674
622210V000 Bracket-Front Bumper Side, Lh9711--01 ~ 9907--01; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
622210V000 |
US $16.92 |
||
|
Z62680
|
Z62680
01241-00071
NUT
9711--01 ~ ; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
01241-00071 |
— | ||
| replacement | |||||
|
Z62680
|
Z62680
0124100113 NUT-J9711--01 ~ ; W; ｵｰﾃｯｸﾊﾞｰｼﾞｮﾝｼﾖｳ |
0124100113 |
from US $2.50 |
||
