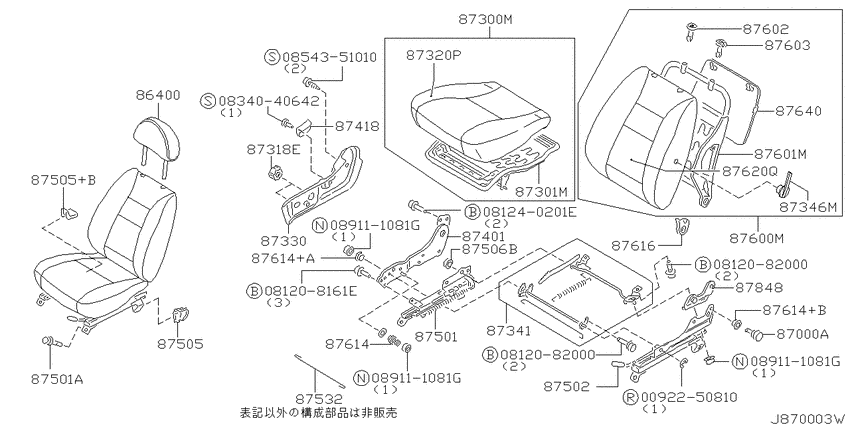

Front seat (1999-07-01 ~ ; RH; W) Diagram Nissan STAGEA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250810
|
0092250810
00922-50810 SCREW |
00922-50810 |
US $1.73 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
86400
|
86400
86400-AA000 Head Rest Assy-Front Seat9808--01 ~ ; W |
86400-AA000 |
US $216 |
||
|
87000A
|
87000A
87615-W5000 Bolt-Special9808--01 ~ ; W |
87615-W5000 |
US $4.18 |
||
|
87000A
|
87000A
87615-W5000 Bolt-Special9808--01 ~ ; W |
87615-W5000 |
US $4.18 |
||
|
87300M
|
87300M
87300-0A909
ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9808--01 ~ 9907--01; W; [K116] |
87300-0A909 |
— | ||
|
87300M
|
87300M
87350-0A909
ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9808--01 ~ 9907--01; W; [K116] |
87350-0A909 |
— | ||
|
87301M
|
87301M
87301-AA210 Frame Assy-Front Seat Cushion9808--01 ~ ; W |
87301-AA210 |
US $402.14 |
||
|
87301M
|
87301M
87301-AA210 Frame Assy-Front Seat Cushion9808--01 ~ ; W |
87301-AA210 |
US $402.14 |
||
|
87318E
|
87318E
87346-0V000 Knob-Lifter Lever9808--01 ~ ; W |
87346-0V000 |
US $5.33 |
||
|
87320P
|
87320P
87320-0A909
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ
9907--01 ~ ; *W; [K116] |
87320-0A909 |
— | ||
|
87320P
|
87320P
87370-0A909
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ
9907--01 ~ ; *W; [K116] |
87370-0A909 |
— | ||
|
87330
|
87330
87330-0V000 Finisher Assy-Cushion, Front Seat Rh9808--01 ~ ; W |
87330-0V000 |
US $31.82 |
||
|
87341
|
87341
87341-0V760 Lifter Assy-Front Seat Rh9907--01 ~ ; W |
87341-0V760 |
US $184.32 |
||
|
87341
|
87341
87341-71L00 Lifter Assy-Front Seat Rh9808--01 ~ 9907--01; W |
87341-71L00 |
US $205.92 |
||
|
87346M
|
87346M
87610-89900 Knob-Seat Back9811--01 ~ ; W |
87610-89900 |
US $5.18 |
||
|
87401
|
87401
87401-72T00 Device-Reclining, Rh Seat Outside9808--01 ~ ; W |
87401-72T00 |
US $174.24 |
||
|
87418
|
87418
87418-0V000 Knob-Reclining Device9808--01 ~ ; W |
87418-0V000 |
US $5.76 |
||
|
87418
|
87418
87468-0V000 Knob-Reclining Device9808--01 ~ ; W |
87468-0V000 |
US $5.76 |
||
|
87501
|
87501
8750188T00
Slide-Rh Seat, Outside
9808--01 ~ ; W |
8750188T00 |
— | ||
|
87501
|
87501
01121-06041 BOLT9808--01 ~ 9910--01; W |
01121-06041 |
US $1.93 |
||
|
87501
|
87501
01121-07241 BOLT9910--01 ~ ; W |
01121-07241 |
US $2.45 |
||
|
87501A
|
87501A
01121-06041 BOLT9808--01 ~ 9910--01; W |
01121-06041 |
US $1.93 |
||
|
87501A
|
87501A
01121-07241 BOLT9910--01 ~ ; W |
01121-07241 |
US $2.45 |
||
|
87502
|
87502
87502-88T70
Slide-Rh Seat, Inside
9808--01 ~ ; W |
87502-88T70 |
— | ||
|
87505
|
87505
87508-0V000 Cover-Seat Slide9808--01 ~ ; W |
87508-0V000 |
US $11.09 |
||
|
87505
|
87505
87508-0V001 Cover-Seat Slide9907--01 ~ ; W |
87508-0V001 |
US $11.09 |
||
|
87505
|
87505
87558-0V000 Cover-Seat Slide9808--01 ~ ; W |
87558-0V000 |
US $11.09 |
||
|
87505
|
87505
87558-0V001 Cover-Seat Slide9907--01 ~ ; W |
87558-0V001 |
US $11.09 |
||
|
87505
|
87505
87509-0V000 Cover-Seat Slide9808--01 ~ ; W |
87509-0V000 |
US $11.09 |
||
|
87505
|
87505
87509-0V001 Cover-Seat Slide9907--01 ~ ; W |
87509-0V001 |
US $11.09 |
||
|
87505
|
87505
87509-0V000 Cover-Seat Slide9808--01 ~ ; W |
87509-0V000 |
US $11.09 |
||
|
87505
|
87505
87509-0V001 Cover-Seat Slide9907--01 ~ ; W |
87509-0V001 |
US $11.09 |
||
|
87505+B
|
87505+B
87509-0V000 Cover-Seat Slide9808--01 ~ ; W |
87509-0V000 |
US $11.09 |
||
|
87505+B
|
87505+B
87509-0V001 Cover-Seat Slide9907--01 ~ ; W |
87509-0V001 |
US $11.09 |
||
|
87506B
|
87506B
01225-00661 NUT9808--01 ~ ; W |
01225-00661 |
US $1.73 |
||
|
87532
|
87532
87532-71L00 Wire-Release9907--01 ~ ; W |
87532-71L00 |
US $5.18 |
||
|
87532
|
87532
87532-71L10 Wire-Release9808--01 ~ 9907--01; W |
87532-71L10 |
US $6.91 |
||
|
87532
|
87532
87532-71L00 Wire-Release9907--01 ~ ; W |
87532-71L00 |
US $5.18 |
||
|
87532
|
87532
87532-71L10 Wire-Release9808--01 ~ 9907--01; W |
87532-71L10 |
US $6.91 |
||
|
87600M
|
87600M
87600-0A909
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9808--01 ~ 9907--01; W; [K116] |
87600-0A909 |
— | ||
|
87600M
|
87600M
87650-0A909
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9808--01 ~ 9907--01; W; [K116] |
87650-0A909 |
— | ||
|
87601M
|
87601M
87601-0V880 Frame Assy-Front Seat Back9907--01 ~ ; W |
87601-0V880 |
US $321.43 |
||
|
87601M
|
87601M
87601-AA210 Frame Assy-Front Seat Back9808--01 ~ 9907--01; W |
87601-AA210 |
US $272.16 |
||
|
87601M
|
87601M
87651-0V760 Frame Assy-Front Seat Back9907--01 ~ ; *W |
87651-0V760 |
US $294.53 |
||
|
87601M
|
87601M
87651-AA210 Frame Assy-Front Seat Back9808--01 ~ ; W |
87651-AA210 |
US $272.16 |
||
|
87602
|
87602
87602-89900 Holder Assy-Headrest, Lock9808--01 ~ ; W |
87602-89900 |
US $4.18 |
||
|
87602
|
87602
87602-89900 Holder Assy-Headrest, Lock9808--01 ~ ; W |
87602-89900 |
US $4.18 |
||
|
87603
|
87603
87603-89900 Holder Assy-Headrest, Free9808--01 ~ ; W |
87603-89900 |
US $4.18 |
||
|
87603
|
87603
87603-89900 Holder Assy-Headrest, Free9808--01 ~ ; W |
87603-89900 |
US $4.18 |
||
|
87614
|
87614
87614-71L00 Bush-Front Seat9907--01 ~ ; W |
87614-71L00 |
US $1.73 |
||
|
87614
|
87614
87614-72L00 Bush-Front Seat9808--01 ~ 9907--01; W |
87614-72L00 |
US $1.73 |
||
|
87614
|
87614
87614-71L00 Bush-Front Seat9808--01 ~ 9907--01; W |
87614-71L00 |
US $1.73 |
||
|
87614
|
87614
87614-72L00 Bush-Front Seat9907--01 ~ ; W |
87614-72L00 |
US $1.73 |
||
|
87614
|
87614
87614-73L00 Bush-Front Seat9808--01 ~ ; W |
87614-73L00 |
US $1.73 |
||
|
87614
|
87614
87614-73L00 Bush-Front Seat9808--01 ~ ; W |
87614-73L00 |
US $1.73 |
||
|
87614+A
|
87614+A
87614-71L00 Bush-Front Seat9808--01 ~ 9907--01; W |
87614-71L00 |
US $1.73 |
||
|
87614+A
|
87614+A
87614-72L00 Bush-Front Seat9907--01 ~ ; W |
87614-72L00 |
US $1.73 |
||
|
87614+B
|
87614+B
87614-73L00 Bush-Front Seat9808--01 ~ ; W |
87614-73L00 |
US $1.73 |
||
|
87616
|
87616
87616-71L03 Cover-Front Seat Hinge9808--01 ~ 9907--01; W |
87616-71L03 |
US $6.05 |
||
|
87616
|
87616
87616-71L03 Cover-Front Seat Hinge9808--01 ~ 9907--01; W |
87616-71L03 |
US $6.05 |
||
|
87620Q
|
87620Q
87620-0A909
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ
9907--01 ~ ; *W; [K116] |
87620-0A909 |
— | ||
|
87620Q
|
87620Q
87670-0A909
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ
9907--01 ~ ; *W; [K116] |
87670-0A909 |
— | ||
|
87640
|
87640
87640-0V760 Board Assy-Front Seat Back9808--01 ~ ; W |
87640-0V760 |
US $532.42 |
||
|
87640
|
87640
87640-0V760 Board Assy-Front Seat Back9808--01 ~ ; W |
87640-0V760 |
US $532.42 |
||
|
87848
|
87848
87848-72T00 Cover-Belt Anchor, Rh9808--01 ~ 9907--01; W |
87848-72T00 |
US $4.75 |
||
|
87848
|
87848
87849-72T00 Cover-Belt Anchor, Lh9907--01 ~ ; W |
87849-72T00 |
US $4.75 |
