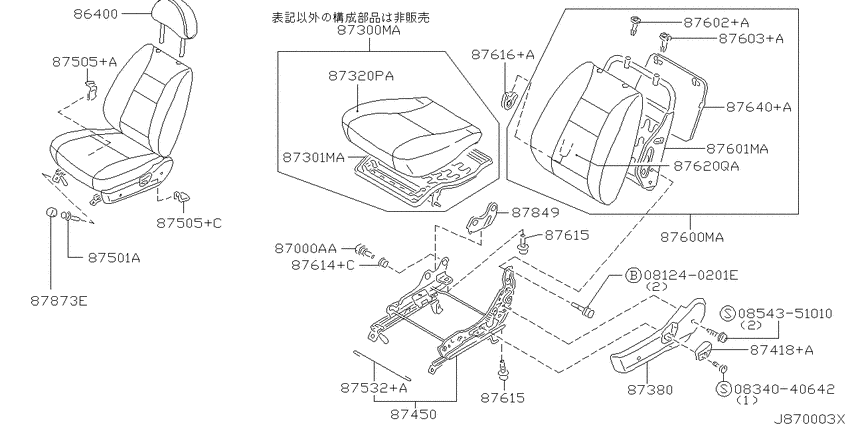

Front seat (1999-07-01 ~ ; LH; W) Diagram Nissan STAGEA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- RB26DETT
- drive
- 4WD
- transmission
- MT
- grade
- 260RS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0854351010
|
0854351010
08543-51010
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-51010 |
— | ||
|
86400
|
86400
86400-AA000 Head Rest Assy-Front Seat9808--01 ~ ; W |
86400-AA000 |
US $216 |
||
|
87000AA
|
87000AA
87615-W5000 Bolt-Special9808--01 ~ ; W |
87615-W5000 |
US $4.18 |
||
|
87300MA
|
87300MA
87350-0A909
ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9808--01 ~ 9907--01; W; [K116] |
87350-0A909 |
— | ||
|
87301MA
|
87301MA
87301-AA210 Frame Assy-Front Seat Cushion9808--01 ~ ; W |
87301-AA210 |
US $402.14 |
||
|
87320PA
|
87320PA
87370-0A909
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ
9907--01 ~ ; *W; [K116] |
87370-0A909 |
— | ||
|
87380
|
87380
87380-0V000 Finisher Assy-Cushion, Front Seat Lh9808--01 ~ ; W |
87380-0V000 |
US $31.82 |
||
|
87418+A
|
87418+A
87468-0V000 Knob-Reclining Device9808--01 ~ ; W |
87468-0V000 |
US $5.76 |
||
|
87450
|
87450
87450-0V300 Adjuster Assy-Front Seat, Lh9808--01 ~ ; W |
87450-0V300 |
US $458.78 |
||
|
87501A
|
87501A
01121-06041 BOLT9808--01 ~ 9910--01; W |
01121-06041 |
US $1.93 |
||
|
87501A
|
87501A
01121-07241 BOLT9910--01 ~ ; W |
01121-07241 |
US $2.45 |
||
|
87505+A
|
87505+A
87558-0V000 Cover-Seat Slide9808--01 ~ ; W |
87558-0V000 |
US $11.09 |
||
|
87505+A
|
87505+A
87558-0V001 Cover-Seat Slide9907--01 ~ ; W |
87558-0V001 |
US $11.09 |
||
|
87505+C
|
87505+C
87509-0V000 Cover-Seat Slide9808--01 ~ ; W |
87509-0V000 |
US $11.09 |
||
|
87505+C
|
87505+C
87509-0V001 Cover-Seat Slide9907--01 ~ ; W |
87509-0V001 |
US $11.09 |
||
|
87532+A
|
87532+A
87532-71L00 Wire-Release9907--01 ~ ; W |
87532-71L00 |
US $5.18 |
||
|
87532+A
|
87532+A
87532-71L10 Wire-Release9808--01 ~ 9907--01; W |
87532-71L10 |
US $6.91 |
||
|
87600MA
|
87600MA
87650-0A909
ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ
9808--01 ~ 9907--01; W; [K116] |
87650-0A909 |
— | ||
|
87601MA
|
87601MA
87651-0V760 Frame Assy-Front Seat Back9907--01 ~ ; *W |
87651-0V760 |
US $294.53 |
||
|
87601MA
|
87601MA
87651-AA210 Frame Assy-Front Seat Back9808--01 ~ ; W |
87651-AA210 |
US $272.16 |
||
|
87602+A
|
87602+A
87602-89900 Holder Assy-Headrest, Lock9808--01 ~ ; W |
87602-89900 |
US $4.18 |
||
|
87603+A
|
87603+A
87603-89900 Holder Assy-Headrest, Free9808--01 ~ ; W |
87603-89900 |
US $4.18 |
||
|
87614+C
|
87614+C
87614-73L00 Bush-Front Seat9808--01 ~ ; W |
87614-73L00 |
US $1.73 |
||
|
87615
|
87615
87615-70T01 Finisher-Seat Back Side9808--01 ~ ; W |
87615-70T01 |
US $2.45 |
||
|
87615
|
87615
87615-70T01 Finisher-Seat Back Side9808--01 ~ ; W |
87615-70T01 |
US $2.45 |
||
|
87616+A
|
87616+A
87616-71L03 Cover-Front Seat Hinge9808--01 ~ 9907--01; W |
87616-71L03 |
US $6.05 |
||
|
87620QA
|
87620QA
87670-0A909
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ
9907--01 ~ ; *W; [K116] |
87670-0A909 |
— | ||
|
87640+A
|
87640+A
87640-0V760 Board Assy-Front Seat Back9808--01 ~ ; W |
87640-0V760 |
US $532.42 |
||
|
87849
|
87849
87848-72T00 Cover-Belt Anchor, Rh9907--01 ~ ; W |
87848-72T00 |
US $4.75 |
||
|
87849
|
87849
87849-72T00 Cover-Belt Anchor, Lh9808--01 ~ 9907--01; W |
87849-72T00 |
US $4.75 |
||
|
87873E
|
87873E
87507-01L00 Cap-Nut9808--01 ~ ; W |
87507-01L00 |
from US $1.93 |
