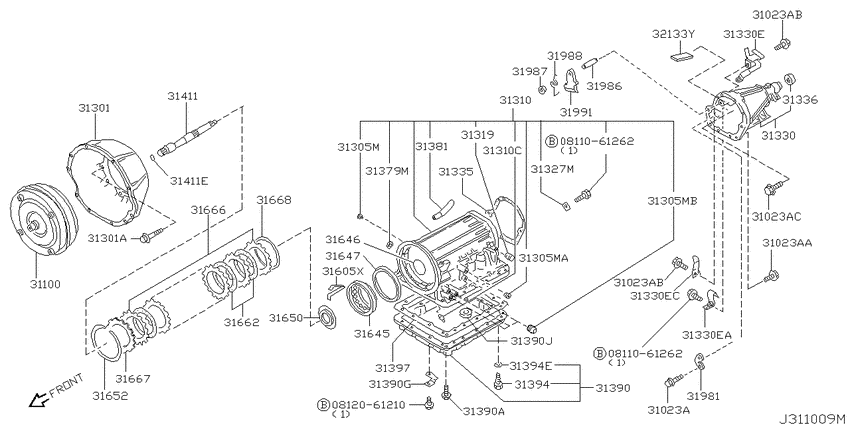

Torque converter,housing & case (2001-10-01 ~ 2004-08-01; AT.F4) Diagram Nissan STAGEA
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- VQ25DD
- drive
- 2WD
- transmission
- AT.F4
- grade
- 250RX
- body
- W
- Suspension
- IRS
- size
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0812061210
|
0812061210
08120-61210
Bolt-hexagon
|
08120-61210 |
— | ||
|
31023A
|
31023A
31377-41X00 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-41X00 |
US $1.73 |
||
|
31023A
|
31023A
31377-41X19 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-41X19 |
US $2.45 |
||
|
31023A
|
31023A
31377-41X21 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-41X21 |
US $2.45 |
||
|
31023A
|
31023A
31377-4AX00 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-4AX00 |
US $2.45 |
||
|
31023AA
|
31023AA
31377-41X19 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-41X19 |
US $2.45 |
||
|
31023AB
|
31023AB
31377-41X21 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-41X21 |
US $2.45 |
||
|
31023AB
|
31023AB
31377-41X21 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-41X21 |
US $2.45 |
||
|
31023AC
|
31023AC
31377-4AX00 Bolt0110--01 ~ 0408--01; AT.F4 |
31377-4AX00 |
US $2.45 |
||
|
31100
|
31100
31100-4AX04 Converter Assy-Torque0110--01 ~ 0408--01; AT.F4 |
31100-4AX04 |
US $1,203.60 |
||
|
31301
|
31301
31301-41X75 Housing-Converter0110--01 ~ 0408--01; AT.F4 |
31301-41X75 |
US $512.59 |
||
|
31301
|
31301
31309-X6600 Bolt0110--01 ~ 0408--01; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X6600 Bolt0110--01 ~ 0408--01; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31305M
|
31305M
31305-41X00 Plug-Thread0110--01 ~ 0408--01; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305M
|
31305M
31305-41X01 Plug-Thread0110--01 ~ 0408--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31305M
|
31305M
31305-41X01 Plug-Thread0110--01 ~ 0408--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31305MA
|
31305MA
31305-41X01 Plug-Thread0110--01 ~ 0408--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31305MB
|
31305MB
31305-41X01 Plug-Thread0110--01 ~ 0408--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31310
|
31310
31310-4AX00 Case Assy-Automatic Transmission0110--01 ~ 0408--01; AT.F4 |
31310-4AX00 |
US $549.41 |
||
|
31310
|
31310
31308-41X00 Pin-Dowel0110--01 ~ 0408--01; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31310C
|
31310C
31308-41X00 Pin-Dowel0110--01 ~ 0408--01; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31319
|
31319
31345-X6101 Plug0110--01 ~ 0408--01; AT.F4 |
31345-X6101 |
US $2.45 |
||
|
31327M
|
31327M
31327-51X01 Plate-Baffle0110--01 ~ 0408--01; AT.F4 |
31327-51X01 |
US $2.45 |
||
|
31330
|
31330
31330-4AX01 Extension Assy-Rear0110--01 ~ 0408--01; AT.F4 |
31330-4AX01 |
US $254.88 |
||
|
31330
|
31330
31376-41X23 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X23 |
US $4.18 |
||
|
31330
|
31330
31376-41X24 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X24 |
US $2.45 |
||
|
31330
|
31330
31376-41X22 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X22 |
US $2.74 |
||
|
31330E
|
31330E
31376-41X23 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X23 |
US $4.18 |
||
|
31330E
|
31330E
31376-41X24 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X24 |
US $2.45 |
||
|
31330E
|
31330E
31376-41X22 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X22 |
US $2.74 |
||
|
31330EA
|
31330EA
31376-41X24 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X24 |
US $2.45 |
||
|
31330EC
|
31330EC
31376-41X22 Clip-Harness0110--01 ~ 0408--01; AT.F4 |
31376-41X22 |
US $2.74 |
||
|
31335
|
31335
31338-41X02 Gasket-Extension0110--01 ~ 0408--01; AT.F4 |
31338-41X02 |
US $8.21 |
||
|
31336
|
31336
3137541X06 Seal-Oil, Rear Extension0110--01 ~ 0408--01; AT.F4 |
3137541X06 |
from US $5.76 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil0110--01 ~ 0408--01; AT.F4 |
3137541X00 |
from US $2.36 |
||
|
31379M
|
31379M
31375-41X10 Seal-Oil0408--01 ~ ; AT.F4 |
31375-41X10 |
US $3.88 |
||
|
31381
|
31381
31381-41X01 Breather-Air0110--01 ~ 0408--01; AT.F4 |
31381-41X01 |
US $9.07 |
||
|
31390
|
31390
3139041X06 Pan Assy-Oil0110--01 ~ 0408--01; AT.F4 |
3139041X06 |
US $48.82 |
||
|
31390
|
31390
3137741X06 Bolt0110--01 ~ 0408--01; AT.F4 |
3137741X06 |
from US $1.22 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube0110--01 ~ 0408--01; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
3137941X00 Magnet0110--01 ~ 0408--01; AT.F4 |
3137941X00 |
US $4.18 |
||
|
31390A
|
31390A
3137741X06 Bolt0110--01 ~ 0408--01; AT.F4 |
3137741X06 |
from US $1.22 |
||
|
31390G
|
31390G
21644-41X00 Bracket-Oil Cooler Tube0110--01 ~ 0408--01; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390J
|
31390J
3137941X00 Magnet0110--01 ~ 0408--01; AT.F4 |
3137941X00 |
US $4.18 |
||
|
31394
|
31394
3137731X06 Plug-Drain0110--01 ~ 0408--01; AT.F4 |
3137731X06 |
from US $4.51 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug0110--01 ~ 0408--01; AT.F4 |
1102601M02 |
from US $0.91 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug0110--01 ~ 0408--01; AT.F4 |
1102601M02 |
from US $0.91 |
||
|
31397
|
31397
3139741X04 Gasket-Oil Pan0110--01 ~ 0408--01; AT.F4 |
3139741X04 |
from US $21.20 |
||
|
31397
|
31397
313974AX26 Gasket & Seal Kit-Auto Transmission0110--01 ~ 0408--01; AT.F4 |
313974AX26 |
US $254.88 |
||
|
31397
|
31397
31397-4AX85 Gasket & Seal Kit-Auto Transmission0408--01 ~ ; AT.F4 |
31397-4AX85 |
US $254.88 |
||
|
31411
|
31411
31411-4AX01 Shaft-Input0110--01 ~ 0408--01; AT.F4 |
31411-4AX01 |
US $77.33 |
||
|
31411
|
31411
3115921X00 Seal-O Ring0110--01 ~ 0212--01; AT.F4 |
3115921X00 |
from US $3.11 |
||
|
31411
|
31411
31526-80X01 Seal-O Ring0212--01 ~ 0408--01; AT.F4 |
31526-80X01 |
from US $4.03 |
||
|
31411E
|
31411E
3115921X00 Seal-O Ring0110--01 ~ 0212--01; AT.F4 |
3115921X00 |
from US $3.11 |
||
|
31411E
|
31411E
31526-80X01 Seal-O Ring0212--01 ~ 0408--01; AT.F4 |
31526-80X01 |
from US $4.03 |
||
|
31605X
|
31605X
31605-41X20 Spring0110--01 ~ 0408--01; AT.F4 |
31605-41X20 |
US $4.03 |
||
|
31645
|
31645
31645-41X09 Piston Assy-Low & Reverse Brake0110--01 ~ 0408--01; AT.F4 |
31645-41X09 |
US $22.03 |
||
|
31646
|
31646
31527-41X05 Seal-Lathe Cut Ring0110--01 ~ 0408--01; AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31647
|
31647
31528-41X00 Seal-Lip0110--01 ~ 0408--01; AT.F4 |
31528-41X00 |
US $7.92 |
||
|
31650
|
31650
31655-41X00 Retainer-Low & Reverse Brake0110--01 ~ 0408--01; AT.F4 |
31655-41X00 |
US $10.51 |
||
|
31652
|
31652
31506-41X09 Ring-Snap0110--01 ~ 0408--01; AT.F4 |
31506-41X09 |
US $4.03 |
||
|
31662
|
31662
31532-41X14 Plate Assy-Drive0206--01 ~ 0408--01; AT.F4 |
31532-41X14 |
US $34.70 |
||
|
31662
|
31662
31532-41X69 Plate Assy-Drive0110--01 ~ 0206--01; AT.F4 |
31532-41X69 |
US $29.23 |
||
|
31666
|
31666
31666-41X02 Plate-Driven0110--01 ~ 0408--01; AT.F4 |
31666-41X02 |
US $19.87 |
||
|
31667
|
31667
31667-41X00 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=8.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X00 |
US $17.71 |
||
|
31667
|
31667
31667-41X01 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=8.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X01 |
US $17.71 |
||
|
31667
|
31667
31667-41X02 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=8.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X02 |
US $17.71 |
||
|
31667
|
31667
31667-41X03 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=8.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X03 |
US $17.42 |
||
|
31667
|
31667
31667-41X04 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=8.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X04 |
US $17.42 |
||
|
31667
|
31667
31667-41X05 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=9.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X05 |
US $17.42 |
||
|
31667
|
31667
31667-41X06 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=9.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X06 |
US $17.42 |
||
|
31667
|
31667
31667-41X07 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=7.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X07 |
US $17.42 |
||
|
31667
|
31667
31667-41X08 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=7.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X08 |
US $17.71 |
||
|
31667
|
31667
31667-41X11 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=6.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X11 |
US $17.42 |
||
|
31667
|
31667
31667-41X12 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=7.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X12 |
US $17.42 |
||
|
31667
|
31667
31667-41X13 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=7.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X13 |
US $17.42 |
||
|
31667
|
31667
31667-41X14 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=7.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X14 |
US $17.42 |
||
|
31667
|
31667
31667-41X16 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=6.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X16 |
US $17.42 |
||
|
31667
|
31667
31667-41X17 Plate-Retaining0110--01 ~ 0408--01; AT.F4; T=6.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X17 |
US $17.42 |
||
|
31668
|
31668
31535-41X08 Plate-Dished0110--01 ~ 0408--01; AT.F4 |
31535-41X08 |
US $29.23 |
||
|
31981
|
31981
31981-41X02 Support-Parking Actuator0110--01 ~ 0408--01; AT.F4 |
31981-41X02 |
US $4.03 |
||
|
31986
|
31986
31986-41X00 Shaft-Parking Pawl0110--01 ~ 0408--01; AT.F4 |
31986-41X00 |
US $4.03 |
||
|
31987
|
31987
31437-41X00 Spacer-Parking Pawl0110--01 ~ 0408--01; AT.F4 |
31437-41X00 |
US $0.86 |
||
|
31988
|
31988
31988-41X00 Spring-Return Pawl0110--01 ~ 0408--01; AT.F4 |
31988-41X00 |
US $7.92 |
||
|
31991
|
31991
31991-41X01 Pawl-Parking0110--01 ~ 0408--01; AT.F4 |
31991-41X01 |
US $33.12 |
||
|
32133Y
|
32133Y
32133-4AX01 Gutter-Oil, Rear Extension0110--01 ~ 0408--01; AT.F4 |
32133-4AX01 |
US $16.85 |
||
|
32133Y
|
32133Y
32133-4AX02 Gutter-Oil, Rear Extension0408--01 ~ ; AT.F4 |
32133-4AX02 |
US $16.85 |
