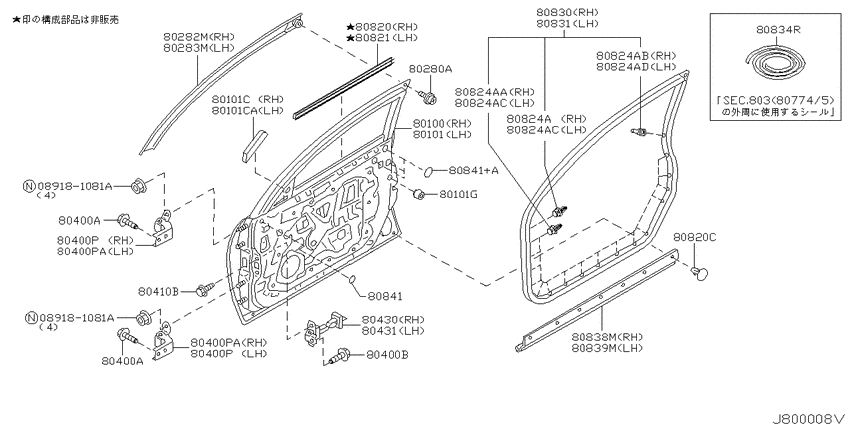

Front door panel & fitting (2004-08-01 ~ ; W) Diagram Nissan STAGEA
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- VQ25DD
- drive
- 4WD
- transmission
- AT.F5
- grade
- 250RXF
- body
- W
- Suspension
- IRS
- size
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
80100
|
80100
H0100-7W0MM Door-Front, Rh0408--01 ~ 0512--01; W |
H0100-7W0MM |
US $1,166.78 |
||
|
80100
|
80100
H0100-AQ0AM Door-Front, Rh0112--01 ~ 0408--01; W |
H0100-AQ0AM |
US $811.37 |
||
|
80100
|
80100
H0100-AQ0MM Door-Front, Rh0110--01 ~ 0112--01; W |
H0100-AQ0MM |
US $1,166.78 |
||
|
80100
|
80100
H010M7W0MA Door-Front, Rh0512--01 ~ ; W |
H010M7W0MA |
US $1,166.78 |
||
|
80101
|
80101
H0101-7W0MM Door-Front, Lh0408--01 ~ 0512--01; W |
H0101-7W0MM |
US $1,166.78 |
||
|
80101
|
80101
H0101-AQ0AM Door-Front, Lh0112--01 ~ 0408--01; W |
H0101-AQ0AM |
US $811.37 |
||
|
80101
|
80101
H0101-AQ0MM Door-Front, Lh0110--01 ~ 0112--01; W |
H0101-AQ0MM |
US $1,166.78 |
||
|
80101
|
80101
H010A7W0MA Door-Front, Lh0512--01 ~ ; W |
H010A7W0MA |
US $1,166.78 |
||
|
80101
|
80101
80864AL500 Insulator0110--01 ~ 0408--01; W |
80864AL500 |
US $4.46 |
||
|
80101
|
80101
80865AL500 Insulator0110--01 ~ 0408--01; W |
80865AL500 |
US $4.46 |
||
|
80101
|
80101
80872D0101 Bumper Rubber-Door0110--01 ~ 0408--01; W |
80872D0101 |
US $4.85 |
||
|
80101C
|
80101C
80864AL500 Insulator0110--01 ~ 0408--01; W |
80864AL500 |
US $4.46 |
||
|
80101C
|
80101C
80865AL500 Insulator0110--01 ~ 0408--01; W |
80865AL500 |
US $4.46 |
||
|
80101CA
|
80101CA
80865AL500 Insulator0110--01 ~ 0408--01; W |
80865AL500 |
US $4.46 |
||
|
80101G
|
80101G
80872D0101 Bumper Rubber-Door0110--01 ~ 0408--01; W |
80872D0101 |
US $4.85 |
||
|
80280A
|
80280A
80599-AL500 Screw0110--01 ~ 0408--01; W |
80599-AL500 |
US $1.73 |
||
|
80282M
|
80282M
80282AQ000 Moulding-Front Door Sash, Front Rh0110--01 ~ 0408--01; W |
80282AQ000 |
US $102.10 |
||
|
80283M
|
80283M
80283-AQ000 Moulding-Front Door Sash, Front Lh0110--01 ~ 0408--01; W |
80283-AQ000 |
US $102.10 |
||
|
803
|
Front door window & regulator
803
|
||||
|
803
|
Front door window & regulator
803
|
||||
|
803
|
Front door window & regulator
803
|
||||
|
80400A
|
80400A
01121-01601 BOLT0110--01 ~ 0408--01; W |
01121-01601 |
US $2.08 |
||
|
80400A
|
80400A
01121-01601 BOLT0110--01 ~ 0408--01; W |
01121-01601 |
US $2.08 |
||
|
80400B
|
80400B
80498-40U00
Bolt
0110--01 ~ 0408--01; W |
80498-40U00 |
— | ||
| replacement | |||||
|
80400B
|
80400B
80498-40U0B Bolt0110--01 ~ 0408--01; W |
80498-40U0B |
from US $0.87 |
||
|
80400B
|
80400B
80498-40U0A Bolt0703--01 ~ ; W |
80498-40U0A |
US $2.45 |
||
|
80400P
|
80400P
80400-AG000 Hinge Assy-Front Door0110--01 ~ 0408--01; W; RH UPR,LH LWR |
80400-AG000 |
US $46.66 |
||
|
80400P
|
80400P
80400AM800 Hinge Assy-Front Door0408--01 ~ ; W; RH UPR,LH LWR |
80400AM800 |
from US $49.47 |
||
|
80400P
|
80400P
80401-AG000 Hinge Assy-Front Door0110--01 ~ 0408--01; W; LH UPR,RH LWR |
80401-AG000 |
US $46.66 |
||
|
80400P
|
80400P
80401AM800 Hinge Assy-Front Door0408--01 ~ ; W; LH UPR,RH LWR |
80401AM800 |
from US $46.66 |
||
|
80400P
|
80400P
80400-AG000 Hinge Assy-Front Door0110--01 ~ 0408--01; W; RH UPR,LH LWR |
80400-AG000 |
US $46.66 |
||
|
80400P
|
80400P
80400AM800 Hinge Assy-Front Door0408--01 ~ ; W; RH UPR,LH LWR |
80400AM800 |
from US $49.47 |
||
|
80400P
|
80400P
80401-AG000 Hinge Assy-Front Door0110--01 ~ 0408--01; W; LH UPR,RH LWR |
80401-AG000 |
US $46.66 |
||
|
80400P
|
80400P
80401AM800 Hinge Assy-Front Door0408--01 ~ ; W; LH UPR,RH LWR |
80401AM800 |
from US $46.66 |
||
|
80400PA
|
80400PA
80401-AG000 Hinge Assy-Front Door0110--01 ~ 0408--01; W; LH UPR,RH LWR |
80401-AG000 |
US $46.66 |
||
|
80400PA
|
80400PA
80401AM800 Hinge Assy-Front Door0408--01 ~ ; W; LH UPR,RH LWR |
80401AM800 |
from US $46.66 |
||
|
80400PA
|
80400PA
80401-AG000 Hinge Assy-Front Door0110--01 ~ 0408--01; W; LH UPR,RH LWR |
80401-AG000 |
US $46.66 |
||
|
80400PA
|
80400PA
80401AM800 Hinge Assy-Front Door0408--01 ~ ; W; LH UPR,RH LWR |
80401AM800 |
from US $46.66 |
||
|
80410B
|
80410B
01121-07261 BOLT0110--01 ~ 0408--01; W |
01121-07261 |
from US $0.72 |
||
|
80430
|
80430
80430-AL500 Check Link Assy-Front Door Rh0110--01 ~ 0204--01; W |
80430-AL500 |
US $27.36 |
||
|
80430
|
80430
80430AL520 Check Link Assy-Front Door Rh0204--01 ~ 0408--01; W |
80430AL520 |
US $35.71 |
||
|
80431
|
80431
80431-AL500 Check Link Assy-Front Door Lh0110--01 ~ 0204--01; W |
80431-AL500 |
US $27.36 |
||
|
80431
|
80431
80431-AL520 Check Link Assy-Front Door Lh0204--01 ~ 0408--01; W |
80431-AL520 |
US $35.71 |
||
|
80820
|
80820
80820AQ000 Moulding Assy-Front Door Outside, Rh0110--01 ~ 0408--01; W |
80820AQ000 |
US $121.54 |
||
|
80820
|
80820
80897AQ000 Screw0110--01 ~ 0408--01; W |
80897AQ000 |
US $0.97 |
||
|
80820C
|
80820C
80897AQ000 Screw0110--01 ~ 0408--01; W |
80897AQ000 |
US $0.97 |
||
|
80821
|
80821
80821AQ000 Moulding Assy-Front Door Outside, Lh0110--01 ~ 0408--01; W |
80821AQ000 |
US $121.54 |
||
|
80824A
|
80824A
8085089917 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾐｷﾞｶﾞﾜ |
8085089917 |
US $0.86 |
||
|
80824A
|
80824A
8085089918 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾐｷﾞｶﾞﾜ |
8085089918 |
US $0.86 |
||
|
80824A
|
80824A
8085089921 Clip-Weatherstrip0111--01 ~ 0408--01; W; ﾐｷﾞｶﾞﾜ |
8085089921 |
from US $0.94 |
||
|
80824A
|
80824A
8085089918 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾋﾀﾞﾘ |
8085089918 |
US $0.86 |
||
|
80824A
|
80824A
8085089921 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾋﾀﾞﾘ |
8085089921 |
from US $0.94 |
||
|
80824AA
|
80824AA
8085089918 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾐｷﾞｶﾞﾜ |
8085089918 |
US $0.86 |
||
|
80824AB
|
80824AB
8085089921 Clip-Weatherstrip0111--01 ~ 0408--01; W; ﾐｷﾞｶﾞﾜ |
8085089921 |
from US $0.94 |
||
|
80824AC
|
80824AC
8085089918 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾋﾀﾞﾘ |
8085089918 |
US $0.86 |
||
|
80824AC
|
80824AC
8085089918 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾋﾀﾞﾘ |
8085089918 |
US $0.86 |
||
|
80824AD
|
80824AD
8085089921 Clip-Weatherstrip0110--01 ~ 0408--01; W; ﾋﾀﾞﾘ |
8085089921 |
from US $0.94 |
||
|
80830
|
80830
80830-AQ000 Weatherstrip-Front Door, Rh0110--01 ~ 0111--01; W |
80830-AQ000 |
US $167.04 |
||
|
80830
|
80830
80830AQ001 Weatherstrip-Front Door, Rh0111--01 ~ 0408--01; W |
80830AQ001 |
US $151.20 |
||
|
80831
|
80831
80831-AQ000 Weatherstrip-Front Door, Lh0110--01 ~ 0111--01; W |
80831-AQ000 |
US $167.04 |
||
|
80831
|
80831
80831-AQ001 Weatherstrip-Front Door, Lh0111--01 ~ 0408--01; W |
80831-AQ001 |
US $151.20 |
||
|
80834R
|
80834R
80740AR000 Seal-Front Door Inside0110--01 ~ 0408--01; W; 5X10X2000 |
80740AR000 |
US $11.09 |
||
|
80838M
|
80838M
80838-AC000 Seal-Front Door Parting, Rh0408--01 ~ 0510--01; W |
80838-AC000 |
US $65.95 |
||
|
80838M
|
80838M
80838AC50A Seal-Front Door Parting, Rh0510--01 ~ ; W |
80838AC50A |
US $65.95 |
||
|
80838M
|
80838M
80838-AL500 Seal-Front Door Parting, Rh0110--01 ~ 0408--01; W |
80838-AL500 |
US $50.40 |
||
|
80839M
|
80839M
80839-AC000 Seal-Front Door Parting, Lh0408--01 ~ 0510--01; W |
80839-AC000 |
US $65.95 |
||
|
80839M
|
80839M
80839AC50A Seal-Front Door Parting, Lh0510--01 ~ ; W |
80839AC50A |
US $65.95 |
||
|
80839M
|
80839M
80839-AL500
Seal-Front Door Parting, Lh
0110--01 ~ 0408--01; W |
80839-AL500 |
— | ||
| replacement | |||||
|
80839M
|
80839M
80839AC50B Seal-Front Door Parting, Lh0110--01 ~ 0408--01; W |
80839AC50B |
US $89.16 |
||
|
80841
|
80841
64899-AR000 Cover-Hole, Front Door Inside0110--01 ~ 0408--01; W |
64899-AR000 |
US $1.73 |
||
|
80841
|
80841
64891W5000 Plug-Rubber0205--01 ~ 0408--01; W |
64891W5000 |
US $0.82 |
||
|
80841
|
80841
648990M000 Cover-Hole0110--01 ~ 0205--01; W |
648990M000 |
US $1.46 |
||
| replacement | |||||
|
80841
|
80841
H0895R8000 Plug-Rubber0110--01 ~ 0205--01; W |
H0895R8000 |
from US $7.63 |
||
|
80841
|
80841
64899-35F00
Cover-Hole
0110--01 ~ 0408--01; W |
64899-35F00 |
— | ||
| replacement | |||||
|
80841
|
80841
64891W5000 Plug-Rubber0110--01 ~ 0408--01; W |
64891W5000 |
US $0.82 |
||
|
80841+A
|
80841+A
64891W5000 Plug-Rubber0205--01 ~ 0408--01; W |
64891W5000 |
US $0.82 |
||
|
80841+A
|
80841+A
648990M000 Cover-Hole0110--01 ~ 0205--01; W |
648990M000 |
US $1.46 |
||
| replacement | |||||
|
80841+A
|
80841+A
H0895R8000 Plug-Rubber0110--01 ~ 0205--01; W |
H0895R8000 |
from US $7.63 |
||
