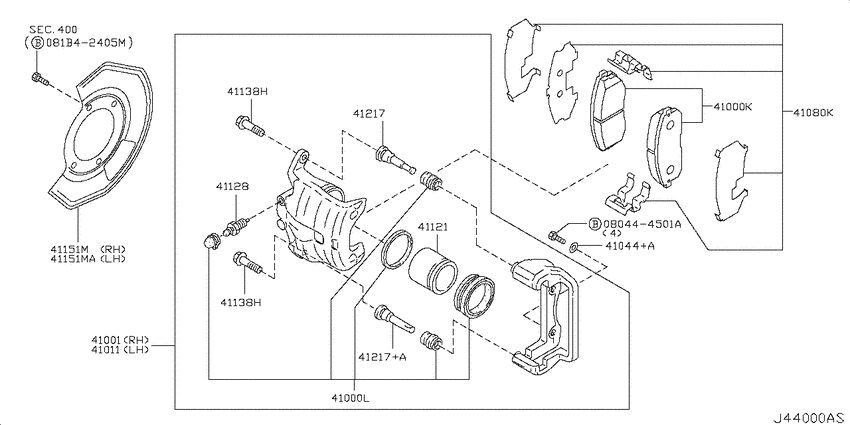

Front brake (2004-08-01 ~ ; VQ35DE) Diagram Nissan STAGEA
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT.F5
- grade
- 350RX
- body
- W
- Suspension
- IRS
- size
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080444501A
|
080444501A
080444501A
Bolt-hexagon
|
080444501A |
— | ||
|
400
|
Front axle
400
|
||||
|
41000K
|
41000K
AY040NS115 Pad Kit-Disc Brake0611--01 ~ ; 2WD.VQ35DE |
AY040NS115 |
US $142.56 |
||
|
41000K
|
41000K
AY040NS119 Pad Kit-Disc Brake0408--01 ~ 0611--01; 2WD.VQ35DE |
AY040NS119 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS013 Seal Kit-Disc Brake0408--01 ~ ; VQ35DE |
AY600NS013 |
US $45.60 |
||
|
41001
|
41001
41001-AL501 Caliper Assy-Front Rh, W/o Pads Or Shims0408--01 ~ 0611--01; VQ35DE |
41001-AL501 |
US $487.10 |
||
|
41001
|
41001
41001AL50A Caliper Assy-Front Rh, W/o Pads Or Shims0611--01 ~ ; VQ35DE |
41001AL50A |
US $487.10 |
||
|
41011
|
41011
41011-AL501 Caliper Assy-Front Lh, W/o Pads Or Shims0408--01 ~ 0611--01; VQ35DE |
41011-AL501 |
US $487.10 |
||
|
41011
|
41011
41011-AL50A Caliper Assy-Front Lh, W/o Pads Or Shims0611--01 ~ ; VQ35DE |
41011-AL50A |
US $487.10 |
||
|
41044+A
|
41044+A
41044-6P010 Washer0408--01 ~ 0703--01; VQ35DE |
41044-6P010 |
US $3.46 |
||
|
41044+A
|
41044+A
410446P01A Washer0703--01 ~ ; VQ35DE |
410446P01A |
from US $1.79 |
||
|
41080K
|
41080K
410805Y725 Hardware Kit-Front Disc Brake Pad0611--01 ~ ; 2WD.VQ35DE |
410805Y725 |
US $86.11 |
||
|
41080K
|
41080K
41080AC290 Hardware Kit-Front Disc Brake Pad0408--01 ~ 0611--01; 2WD.VQ35DE |
41080AC290 |
US $54.29 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER0408--01 ~ ; VQ35DE |
4112171E00 |
from US $59.88 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
0408--01 ~ 0611--01; VQ35DE |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder0408--01 ~ 0611--01; VQ35DE |
41128AW70A |
from US $7.63 |
||
|
41128
|
41128
41128AW70A Screw-Bleeder0611--01 ~ ; VQ35DE |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141AW70A Pin-Bolt0611--01 ~ ; VQ35DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0408--01 ~ 0611--01; VQ35DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0408--01 ~ 0611--01; VQ35DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141AW70A Pin-Bolt0611--01 ~ ; VQ35DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0408--01 ~ 0611--01; VQ35DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0408--01 ~ 0611--01; VQ35DE |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41151-AL500 Plate-Baffle0408--01 ~ ; VQ35DE |
41151-AL500 |
US $32.83 |
||
|
41151M
|
41151M
41161AL500 Plate-Baffle0408--01 ~ ; VQ35DE |
41161AL500 |
US $32.83 |
||
|
41151MA
|
41151MA
41161AL500 Plate-Baffle0408--01 ~ ; VQ35DE |
41161AL500 |
US $32.83 |
||
|
41217
|
41217
44140N9500 Pin-Lock0408--01 ~ ; VQ35DE |
44140N9500 |
from US $8.45 |
||
|
41217
|
41217
44139-2Y000 Pin-Slide0408--01 ~ 0611--01; VQ35DE |
44139-2Y000 |
US $15.12 |
||
|
41217
|
41217
441395Y50A Pin-Slide0611--01 ~ ; VQ35DE |
441395Y50A |
from US $9.50 |
||
|
41217+A
|
41217+A
44139-2Y000 Pin-Slide0408--01 ~ 0611--01; VQ35DE |
44139-2Y000 |
US $15.12 |
||
|
41217+A
|
41217+A
441395Y50A Pin-Slide0611--01 ~ ; VQ35DE |
441395Y50A |
from US $9.50 |
||
