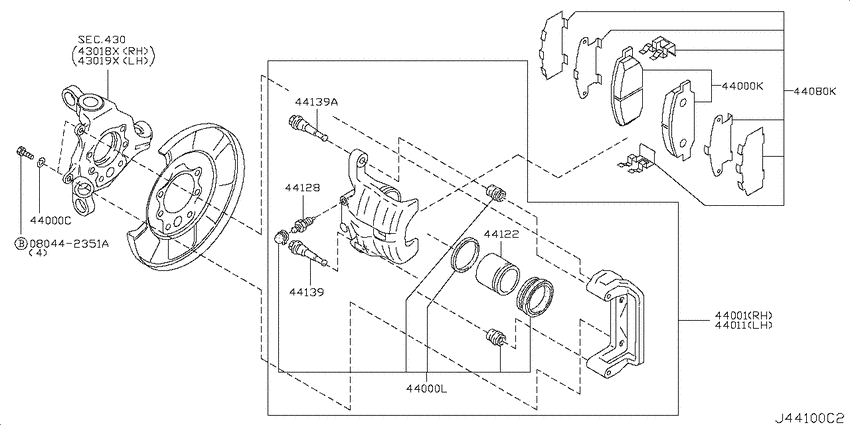

Rear brake (2004-08-01 ~ ; ディスク ブレーキ; VQ35DE) Diagram Nissan STAGEA
- Year
- 2004 - 2012
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT.F5
- grade
- 350RX
- body
- W
- Suspension
- IRS
- size
- RB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442351A
|
080442351A
08044-2351A Bolt-hexagon |
08044-2351A |
US $1.76 |
||
|
430
|
Rear axle
430
|
||||
|
44000C
|
44000C
0131101251 WASHER0408--01 ~ ; VQ35DE |
0131101251 |
from US $0.57 |
||
|
44000K
|
44000K
AY060NS030 Pad Kit-Disc Brake0408--01 ~ ; VQ35DE |
AY060NS030 |
US $110.88 |
||
|
44000L
|
44000L
AY620NS031 Seal Kit-Disc Brake0408--01 ~ 0611--01; VQ35DE |
AY620NS031 |
US $61.78 |
||
|
44000L
|
44000L
D4120-EG50C Seal Kit-Disc Brake0611--01 ~ ; VQ35DE |
D4120-EG50C |
US $67.28 |
||
|
44001
|
44001
44001-AQ000 Caliper Assy-Rear Rh, W/o Pads Or Shims0408--01 ~ 0611--01; VQ35DE |
44001-AQ000 |
US $389.40 |
||
|
44001
|
44001
44001-WL00A Caliper Assy-Rear Rh, W/o Pads Or Shims0611--01 ~ ; VQ35DE |
44001-WL00A |
US $389.40 |
||
|
44011
|
44011
44011-AQ000 Caliper Assy-Rear Lh, W/o Pads Or Shims0408--01 ~ 0611--01; VQ35DE |
44011-AQ000 |
US $389.40 |
||
|
44011
|
44011
44011WL00A Caliper Assy-Rear Lh, W/o Pads Or Shims0611--01 ~ ; VQ35DE |
44011WL00A |
US $389.40 |
||
|
44080K
|
44080K
440808H325 Hardware Kit-Rear Disc Brake Pad0408--01 ~ 0512--01; VQ35DE |
440808H325 |
from US $64.20 |
||
|
44122
|
44122
44126-AL500 Piston0408--01 ~ ; VQ35DE |
44126-AL500 |
US $42.19 |
||
|
44128
|
44128
411288J100 Screw-Bleeder0408--01 ~ ; VQ35DE |
411288J100 |
from US $6.91 |
||
|
44139
|
44139
44140-8J100
Pin-Slide
0408--01 ~ 0611--01; VQ35DE |
44140-8J100 |
— | ||
| replacement | |||||
|
44139
|
44139
44140JA01A Pin-Slide0408--01 ~ 0611--01; VQ35DE |
44140JA01A |
from US $10.69 |
||
|
44139
|
44139
44140JA01A Pin-Slide0611--01 ~ ; VQ35DE |
44140JA01A |
from US $10.69 |
||
|
44139
|
44139
44141-8J100
Bolt-Pin
0408--01 ~ 0611--01; VQ35DE |
44141-8J100 |
— | ||
| replacement | |||||
|
44139
|
44139
44141JA01A Bolt-Pin0408--01 ~ 0611--01; VQ35DE |
44141JA01A |
from US $5.31 |
||
|
44139
|
44139
44141JA01A Bolt-Pin0611--01 ~ ; VQ35DE |
44141JA01A |
from US $5.31 |
||
|
44139A
|
44139A
44141-8J100
Bolt-Pin
0408--01 ~ 0611--01; VQ35DE |
44141-8J100 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141JA01A Bolt-Pin0408--01 ~ 0611--01; VQ35DE |
44141JA01A |
from US $5.31 |
||
|
44139A
|
44139A
44141JA01A Bolt-Pin0611--01 ~ ; VQ35DE |
44141JA01A |
from US $5.31 |
||
