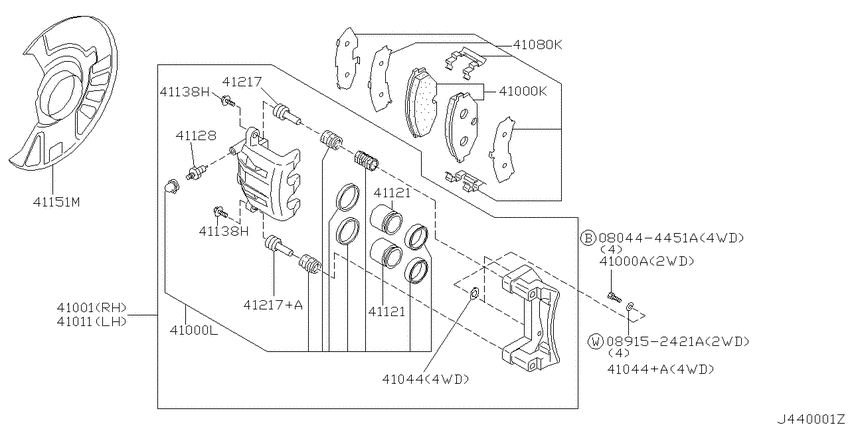

Front brake (1998-08-01 ~ ; RB25DET) Diagram Nissan STAGEA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 2WD
- transmission
- AT
- grade
- RSV
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080444451A
|
080444451A
08044-4451A
Bolt-hexagon
|
08044-4451A |
— | ||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000A
|
41000A
01111-01301 BOLT9808--01 ~ ; 2WD.RB25DET |
01111-01301 |
US $3.88 |
||
|
41000K
|
41000K
AY040-NS058 Pad Kit-Disc Brake9808--01 ~ 9908--01; RB25DET |
AY040-NS058 |
US $144 |
||
|
41000K
|
41000K
AY040-NS079 Pad Kit-Disc Brake0008--01 ~ ; 2WD.RB25DET |
AY040-NS079 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS004 Seal Kit-Disc Brake9808--01 ~ 9908--01; RB25DET |
AY600NS004 |
US $51.59 |
||
|
41001
|
41001
41001-0V800 Caliper Assy-Front Rh, W/o Pads Or Shims9808--01 ~ ; 2WD.RB25DET |
41001-0V800 |
US $470.11 |
||
|
41011
|
41011
41011-0V800 Caliper Assy-Front Lh, W/o Pads Or Shims9808--01 ~ ; 2WD.RB25DET |
41011-0V800 |
US $470.11 |
||
|
41080K
|
41080K
41080-0V725 Hardware Kit-Front Disc Brake Pad9808--01 ~ ; RB25DET |
41080-0V725 |
US $88.70 |
||
|
41121
|
41121
411210V700 Piston-Cylinder9808--01 ~ ; RB25DET |
411210V700 |
US $47.66 |
||
|
41121
|
41121
411210V700 Piston-Cylinder9808--01 ~ ; RB25DET |
411210V700 |
US $47.66 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9808--01 ~ ; RB25DET |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9808--01 ~ ; RB25DET |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9808--01 ~ ; RB25DET |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9808--01 ~ ; RB25DET |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9808--01 ~ ; RB25DET |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9808--01 ~ ; RB25DET |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41150-0V800 Plate-Baffle9808--01 ~ ; 2WD.RB25DET; ﾐｷﾞ ﾖｳ |
41150-0V800 |
US $36 |
||
|
41151M
|
41151M
41160-0V800 Plate-Baffle9808--01 ~ ; 2WD.RB25DET; ﾋﾀﾞﾘ ﾖｳ |
41160-0V800 |
US $36 |
||
|
41217
|
41217
441400V700 Pin9808--01 ~ ; RB25DET |
441400V700 |
from US $7.63 |
||
|
41217
|
41217
44139-0V700 Pin9808--01 ~ ; RB25DET |
44139-0V700 |
US $11.95 |
||
|
41217+A
|
41217+A
44139-0V700 Pin9808--01 ~ ; RB25DET |
44139-0V700 |
US $11.95 |
||
