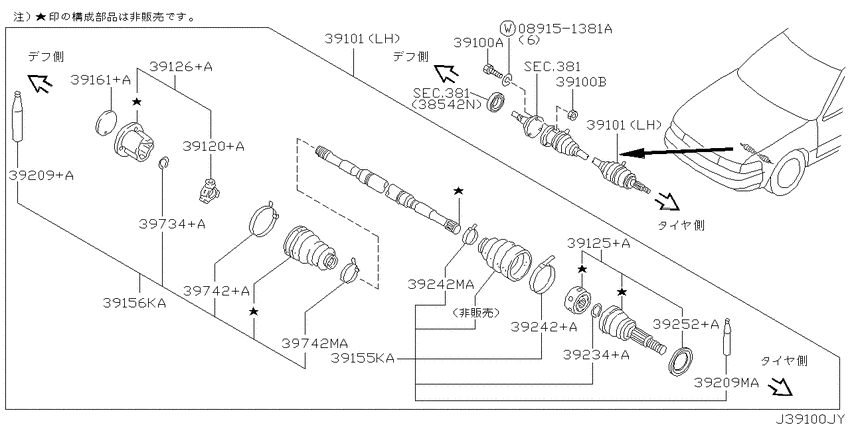

Front drive shaft (ff) (1999-11-01 ~ ; 左側 樹脂ブーツタイプ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT) Diagram Nissan STAGEA
- Year
- 1996 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 4WD
- transmission
- AT
- grade
- RSFV
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.56 |
||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
39100A
|
39100A
39606-56S00 Bolt9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39606-56S00 |
US $3.46 |
||
| replacement | |||||
|
39100A
|
39100A
39606-56S0A Bolt9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39606-56S0A |
US $3.46 |
||
|
39100B
|
39100B
0122300041 NUT9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
0122300041 |
from US $1.37 |
||
|
39101
|
39101
39101-23U60 Shaft Assy-Front Drive, Lh9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-23U60 |
US $1,080.41 |
||
|
39101
|
39101
39101-23U70 Shaft Assy-Front Drive, Lh9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39101-23U70 |
US $1,408.92 |
||
|
39101
|
39101
39101-23U60 Shaft Assy-Front Drive, Lh9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-23U60 |
US $1,080.41 |
||
|
39101
|
39101
39101-23U70 Shaft Assy-Front Drive, Lh9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39101-23U70 |
US $1,408.92 |
||
|
39120+A
|
39120+A
39720-10V10 Spider Assy-Slide Joint9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET; ｺｸｲﾝ 00 |
39720-10V10 |
US $78.19 |
||
|
39120+A
|
39120+A
39720-10V11 Spider Assy-Slide Joint9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET; ｺｸｲﾝ 01 |
39720-10V11 |
US $76.46 |
||
|
39120+A
|
39120+A
39720-10V12 Spider Assy-Slide Joint9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET; ｺｸｲﾝ 02 |
39720-10V12 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-23U60 Joint Assy-Outer9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT |
39211-23U60 |
US $617.38 |
||
|
39125+A
|
39125+A
39211-23U70 Joint Assy-Outer9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39211-23U70 |
US $678.26 |
||
|
39126+A
|
39126+A
39711-35F10 Joint Assy-Inner9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39711-35F10 |
from US $164.32 |
||
|
39155KA
|
39155KA
39241-23U25
Repair Kit-Dust Boot, Outer
9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39241-23U25 |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9BDA23U2H C9BDA23U2H9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
C9BDA23U2H |
from US $50.65 |
||
|
39155KA
|
39155KA
3924150A92 Repair Kit-Dust Boot, Outer9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3924150A92 |
US $97.63 |
||
|
39156KA
|
39156KA
3974105U27 Repair Kit-Dust B00T, Inner9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT |
3974105U27 |
US $97.63 |
||
|
39156KA
|
39156KA
3974105U85
Repair Kit-Dust B00T, Inner
9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3974105U85 |
— | ||
| replacement | |||||
|
39156KA
|
39156KA
C9GDA-05U8H REPAIR KIT-DUST9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
C9GDA-05U8H |
from US $54.13 |
||
|
39161+A
|
39161+A
3971530C00 Plug9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3971530C00 |
US $6.91 |
||
|
39209+A
|
39209+A
39709-0E025 GREASE-INNER9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39709-0E025 |
US $23.33 |
||
|
39209MA
|
39209MA
39709-55E25 GREASE-INNER9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209MA
|
39209MA
C97092U618 Grease-Inner9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
C97092U618 |
US $23.33 |
||
|
39209MA
|
39209MA
C92092U620 Grease-Outer9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39234+A
|
39234+A
3923401A00 Circlip-Drive Shaft9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3923401A00 |
from US $0.61 |
||
|
39242+A
|
39242+A
39242-03A00 Band-Boot, Drive Shaft Outer9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39242-03A00 |
US $13.39 |
||
|
39242+A
|
39242+A
3924223U00 Band-Boot, Drive Shaft Outer9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT |
3924223U00 |
US $5.42 |
||
|
39242MA
|
39242MA
39242-03A05 Band-Boot, Drive Shaft9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39242-03A05 |
US $13.10 |
||
|
39242MA
|
39242MA
3924223U10 Band-Boot, Drive Shaft9911--01 ~ ; ,4WD.RB25DE +RB25DET.(25TXF+RSFV) +RB25DET.MT |
3924223U10 |
US $4.46 |
||
|
39252+A
|
39252+A
3925206R06 Seal-Dust9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3925206R06 |
US $39.74 |
||
|
39734+A
|
39734+A
3970841W00 Ring-Snap, C9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3970841W00 |
US $0.92 |
||
|
39742+A
|
39742+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
3924201E00 |
US $4.25 |
||
|
39742MA
|
39742MA
39742W1205 Band-Dust Cover, Shaft9609--01 ~ 9708--01; 4WD.RB25DE +RB25DET |
39742W1205 |
US $8.90 |
||
