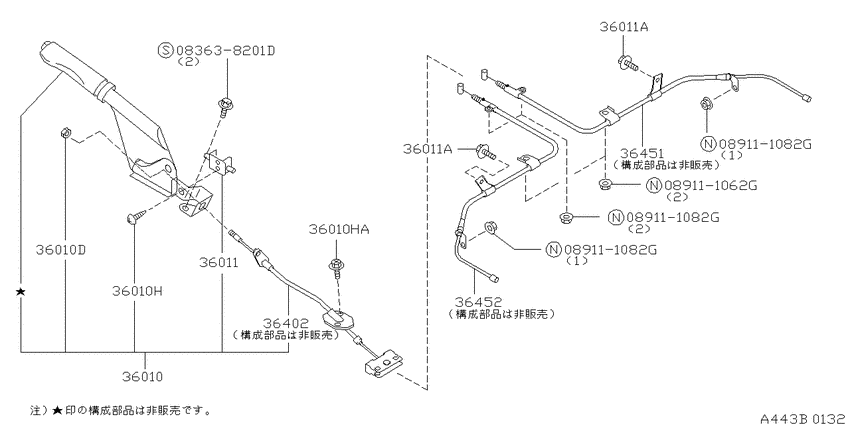

Parking brake control (1998-08-01 ~ ; RB25DET.MT) Diagram Nissan STAGEA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 4WD
- transmission
- MT
- grade
- RSFS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083638201D
|
083638201D
08363-8201D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8201D |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
360100V700
Device Assy-Parking Brake Control
9808--01 ~ 0001--01; RB25DET.MT |
360100V700 |
— | ||
|
36010
|
36010
36010-0V705 Device Assy-Parking Brake Control0001--01 ~ ; RB25DET.MT |
36010-0V705 |
US $263.36 |
||
|
36010
|
36010
01225-00511 NUT9808--01 ~ ; RB25DET.MT |
01225-00511 |
US $3.46 |
||
|
36010
|
36010
0145400431 SCREW9808--01 ~ ; RB25DET.MT |
0145400431 |
US $1.73 |
||
|
36010
|
36010
0143601141 SCREW9808--01 ~ ; RB25DET.MT |
0143601141 |
US $2.36 |
||
|
36010D
|
36010D
01225-00511 NUT9808--01 ~ ; RB25DET.MT |
01225-00511 |
US $3.46 |
||
|
36010H
|
36010H
0145400431 SCREW9808--01 ~ ; RB25DET.MT |
0145400431 |
US $1.73 |
||
|
36010H
|
36010H
0143601141 SCREW9808--01 ~ ; RB25DET.MT |
0143601141 |
US $2.36 |
||
|
36010HA
|
36010HA
0143601141 SCREW9808--01 ~ ; RB25DET.MT |
0143601141 |
US $2.36 |
||
|
36011
|
36011
36011-AA000 Switch Assy-Parking Brake Lamp9808--01 ~ ; RB25DET.MT |
36011-AA000 |
US $11.38 |
||
|
36011
|
36011
54459-0P005 Bolt9808--01 ~ ; RB25DET.MT |
54459-0P005 |
US $3.60 |
||
|
36011A
|
36011A
54459-0P005 Bolt9808--01 ~ ; RB25DET.MT |
54459-0P005 |
US $3.60 |
||
|
36011A
|
36011A
54459-0P005 Bolt9808--01 ~ ; RB25DET.MT |
54459-0P005 |
US $3.60 |
||
|
36402
|
36402
3640270T05 Cable Assy-Parking Brake, Front9808--01 ~ ; RB25DET.MT |
3640270T05 |
US $85.81 |
||
|
36451
|
36451
36530-0A501 Cable Assy-Brake, Rear Rh9808--01 ~ ; RB25DET.MT; [K116] |
36530-0A501 |
US $69.12 |
||
|
36452
|
36452
36531-0A501 Cable Assy-Brake, Rear Lh9808--01 ~ ; RB25DET.MT; [K116] |
36531-0A501 |
US $69.12 |
