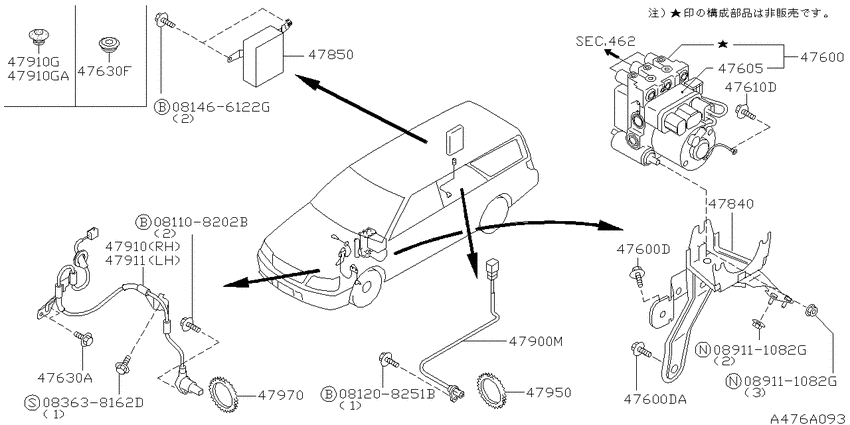

Anti skid control (1996-09-01 ~ 1997-08-01; W.RB20E) Diagram Nissan STAGEA
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- RB20E
- drive
- 2WD
- transmission
- AT
- grade
- 20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108202B
|
081108202B
08110-8202B
Bolt-hexagon
|
08110-8202B |
— | ||
|
081208251B
|
081208251B
08120-8251B Bolt-hexagon |
08120-8251B |
US $2.91 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
from US $0.68 |
||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
47600
|
47600
47600-26U25 Actuator Assy-Anti Skid9609--01 ~ 9708--01; W.RB20E |
47600-26U25 |
US $1,484 |
||
|
47600
|
47600
01125-03231 BOLT9609--01 ~ 9708--01; W.RB20E |
01125-03231 |
US $1.73 |
||
|
47600
|
47600
01125-03231 BOLT9609--01 ~ 9708--01; W.RB20E |
01125-03231 |
US $1.73 |
||
|
47600D
|
47600D
01125-03231 BOLT9609--01 ~ 9708--01; W.RB20E |
01125-03231 |
US $1.73 |
||
|
47600D
|
47600D
01125-03231 BOLT9609--01 ~ 9708--01; W.RB20E |
01125-03231 |
US $1.73 |
||
|
47600DA
|
47600DA
01125-03231 BOLT9609--01 ~ 9708--01; W.RB20E |
01125-03231 |
US $1.73 |
||
|
47605
|
47605
476054P000 Relay Assy-Actuator9609--01 ~ 9708--01; W.RB20E |
476054P000 |
US $22.61 |
||
|
47610D
|
47610D
0145600411 SCREW9609--01 ~ 9708--01; W.RB20E |
0145600411 |
US $1.67 |
||
|
47630A
|
47630A
01121-03811 BOLT-FLEXIBLE HOSE9609--01 ~ 9708--01; W.RB20E |
01121-03811 |
US $1.93 |
||
|
47630F
|
47630F
01658-00551
PLUG-BLIND
9609--01 ~ 9708--01; W.RB20E |
01658-00551 |
— | ||
| replacement | |||||
|
47630F
|
47630F
0165800155 PLUG-DOOR INNER PANEL9609--01 ~ 9708--01; W.RB20E |
0165800155 |
US $3.75 |
||
|
47840
|
47840
47840-86T00 Bracket-Actuator9609--01 ~ 9708--01; W.RB20E |
47840-86T00 |
US $270.72 |
||
|
47850
|
47850
47850-0V000 New Genuine Part9609--01 ~ 9708--01; W.RB20E |
47850-0V000 |
US $1,764 |
||
|
47900M
|
47900M
47900-0V000 Sensor Assy-Anti Skid, Rear9609--01 ~ 9708--01; W.RB20E |
47900-0V000 |
US $200.16 |
||
|
47910
|
47910
47910-0V000 Sensor Assy-Anti Skid, Front Rh9609--01 ~ 9708--01; W.RB20E |
47910-0V000 |
US $342.67 |
||
|
47910
|
47910
01658-01511 PLUG9609--01 ~ 9708--01; W.RB20E |
01658-01511 |
US $3.18 |
||
|
47910
|
47910
0165801481 PLUG9609--01 ~ 9708--01; W.RB20E |
0165801481 |
US $3.18 |
||
|
47910G
|
47910G
01658-01511 PLUG9609--01 ~ 9708--01; W.RB20E |
01658-01511 |
US $3.18 |
||
|
47910G
|
47910G
0165801481 PLUG9609--01 ~ 9708--01; W.RB20E |
0165801481 |
US $3.18 |
||
|
47910GA
|
47910GA
0165801481 PLUG9609--01 ~ 9708--01; W.RB20E |
0165801481 |
US $3.18 |
||
|
47911
|
47911
47911-0V000 Sensor Assy-Anti Skid, Front Lh9609--01 ~ 9708--01; W.RB20E |
47911-0V000 |
US $342.67 |
||
|
47950
|
47950
4795081T00 Sensor Rotor-Anti Skid Rear9609--01 ~ 9708--01; W.RB20E |
4795081T00 |
US $51.41 |
||
|
47970
|
47970
47970-0V000 Sensor-Rotor, Anti Skid Front9704--01 ~ 9708--01; W.RB20E |
47970-0V000 |
US $55.73 |
||
|
47970
|
47970
47970-70T00 Sensor-Rotor, Anti Skid Front9609--01 ~ 9704--01; W.RB20E |
47970-70T00 |
US $55.87 |
||
