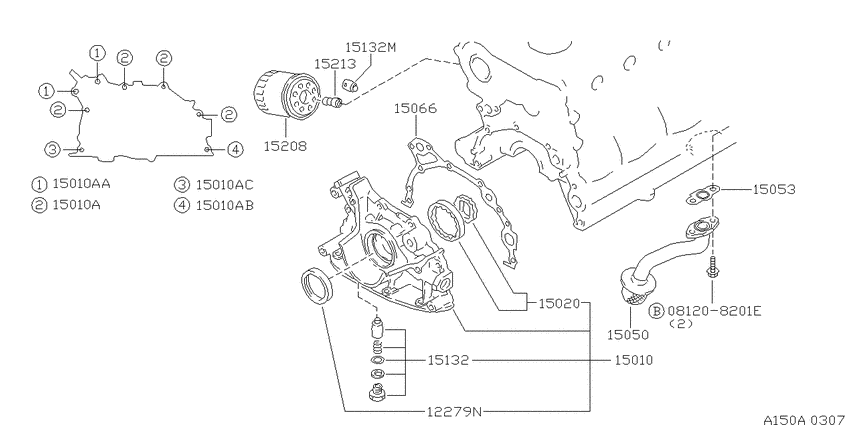

Lubricating system (1996-09-01 ~ 1997-08-01; RB20E) Diagram Nissan STAGEA
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- RB20E
- drive
- 2WD
- transmission
- AT
- grade
- 20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
12279N
|
12279N
13510-10Y00
Seal-Oil, Camshaft
9609--01 ~ 9708--01; RB20E; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼｮｳｶ |
13510-10Y00 |
— | ||
| replacement | |||||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9609--01 ~ 9708--01; RB20E; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼｮｳｶ |
1351010Y10 |
US $6.51 |
||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9609--01 ~ 9708--01; RB20E; NDK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1351010Y10 |
US $6.51 |
||
|
15010
|
15010
1501079S01 Pump Assy-Oil9609--01 ~ 9708--01; RB20E |
1501079S01 |
US $275.04 |
||
|
15010
|
15010
01121-06691 BOLT9609--01 ~ 9708--01; RB20E |
01121-06691 |
US $2.45 |
||
|
15010
|
15010
01121-06701 BOLT9609--01 ~ 9708--01; RB20E |
01121-06701 |
US $2.45 |
||
|
15010
|
15010
01121-06711 BOLT9609--01 ~ 9708--01; RB20E |
01121-06711 |
US $2.45 |
||
|
15010
|
15010
01121-06721 BOLT9609--01 ~ 9708--01; RB20E |
01121-06721 |
US $2.45 |
||
|
15010A
|
15010A
01121-06691 BOLT9609--01 ~ 9708--01; RB20E |
01121-06691 |
US $2.45 |
||
|
15010A
|
15010A
01121-06701 BOLT9609--01 ~ 9708--01; RB20E |
01121-06701 |
US $2.45 |
||
|
15010A
|
15010A
01121-06711 BOLT9609--01 ~ 9708--01; RB20E |
01121-06711 |
US $2.45 |
||
|
15010A
|
15010A
01121-06721 BOLT9609--01 ~ 9708--01; RB20E |
01121-06721 |
US $2.45 |
||
|
15010AA
|
15010AA
01121-06701 BOLT9609--01 ~ 9708--01; RB20E |
01121-06701 |
US $2.45 |
||
|
15010AB
|
15010AB
01121-06711 BOLT9609--01 ~ 9708--01; RB20E |
01121-06711 |
US $2.45 |
||
|
15010AC
|
15010AC
01121-06721 BOLT9609--01 ~ 9708--01; RB20E |
01121-06721 |
US $2.45 |
||
|
15020
|
15020
15020-79S00 Shaft Assy-Oil Pump9609--01 ~ 9708--01; RB20E |
15020-79S00 |
US $36.43 |
||
|
15050
|
15050
15050-42L01 Strainer Assy-Oil9609--01 ~ 9708--01; RB20E |
15050-42L01 |
from US $26.10 |
||
|
15053
|
15053
150531E400 Gasket-Oil Strainer9609--01 ~ 9708--01; RB20E |
150531E400 |
from US $1.67 |
||
|
15066
|
15066
1506671L00 Gasket-Oil Pump To Cylinder Block9609--01 ~ 9708--01; RB20E |
1506671L00 |
from US $5.18 |
||
|
15132
|
15132
15132-42L00
Valve Assy-Oil Regulator
9609--01 ~ 9708--01; RB20E |
15132-42L00 |
— | ||
| replacement | |||||
|
15132
|
15132
13500-70Y00 Cover Assy-Front, Timing Chain9609--01 ~ 9708--01; RB20E |
13500-70Y00 |
US $388.75 |
||
|
15132
|
15132
15241-40F00 Valve Assy-Relief, Oil Cooler9609--01 ~ 9708--01; RB20E |
15241-40F00 |
US $5.04 |
||
|
15132M
|
15132M
15241-40F00 Valve Assy-Relief, Oil Cooler9609--01 ~ 9708--01; RB20E |
15241-40F00 |
US $5.04 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil9609--01 ~ 9704--01; RB20E; ﾛﾝｸﾞ ﾗｲﾌ ﾀｲﾌﾟ |
AY100NS007 |
US $11.13 |
||
|
15213
|
15213
15213-21001 Stud-Oil Filter9609--01 ~ 9708--01; RB20E |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15213
|
15213
15213-W040A Stud-oil filter9609--01 ~ 9708--01; RB20E |
15213-W040A |
US $5.81 |
||
