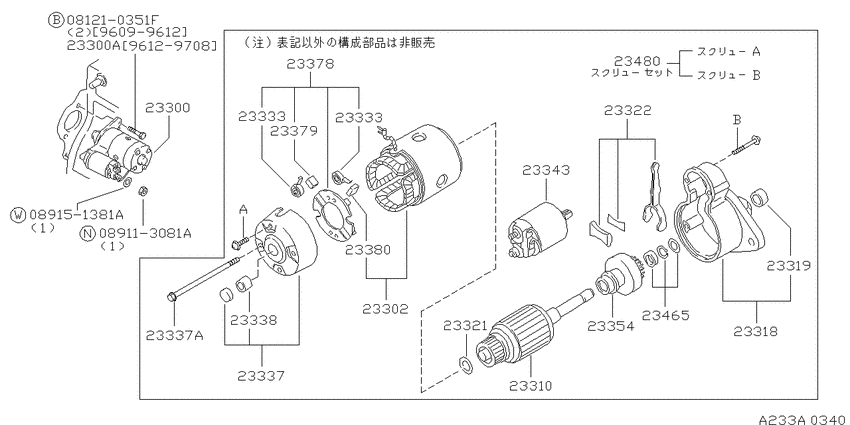

Starter motor (1996-09-01 ~ 1997-08-01; 三菱; RB20E) Diagram Nissan STAGEA
- Year
- 1996 - 1997
- Sales region
- Japan
- Engine
- RB20E
- drive
- 2WD
- transmission
- AT
- grade
- 20G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210351F
|
081210351F
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
23300
|
23300
23300-20P05 Motor Assy-Starter9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-20P05 |
US $812.78 |
||
|
23300
|
23300
2330060S10 Motor Assy-Starter9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
2330060S10 |
US $556.49 |
||
|
23300
|
23300
01121-05901 BOLT9612--01 ~ 9708--01; RB20E |
01121-05901 |
from US $3.06 |
||
|
23300A
|
23300A
01121-05901 BOLT9612--01 ~ 9708--01; RB20E |
01121-05901 |
from US $3.06 |
||
|
23302
|
23302
23302-42L11 Yoke Assy9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23302-42L11 |
US $207.36 |
||
|
23302
|
23302
23302-50Y01 Yoke Assy9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23302-50Y01 |
US $207.36 |
||
|
23310
|
23310
23310-42L13 Armature Assy9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23310-42L13 |
US $270.72 |
||
|
23310
|
23310
23310-50Y01 Armature Assy9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-50Y01 |
US $412.06 |
||
|
23318
|
23318
23318-20P05 Case Assy-Gear9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-20P05 |
US $99.50 |
||
|
23318
|
23318
23318-60S10 Case Assy-Gear9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23318-60S10 |
US $76.03 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23319-97E00 |
US $11.66 |
||
|
23321
|
23321
23369-1E400 Washer Set-Thrust9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23369-1E400 |
US $6.19 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-42L10 Lever Set-Shift9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23322-42L10 |
US $13.10 |
||
|
23322
|
23322
23322-52F05 Lever Set-Shift9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-52F05 |
US $18.86 |
||
|
23333
|
23333
23333-1P100 Spring-Brush9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-1P100 |
US $6.34 |
||
|
23333
|
23333
23333M1510 Spring-Brush9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-1P100 Spring-Brush9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-1P100 |
US $6.34 |
||
|
23333
|
23333
23333M1510 Spring-Brush9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-20P05 Cover Assy-Rear9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-20P05 |
US $42.19 |
||
|
23337
|
23337
23337-42L10 Cover Assy-Rear9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23337-42L10 |
US $33.55 |
||
|
23337
|
23337
23340-M8010 Bolt-Through9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337
|
23337
23340N5900 Bolt-Through9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340N5900 |
US $4.61 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
2333897E00 |
US $10.37 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338N3300 |
US $5.18 |
||
|
23343
|
23343
23343-52F00 Switch Assy-Magnetic9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-52F00 |
US $126.43 |
||
|
23343
|
23343
23343M8011 Switch Assy-Magnetic9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23343M8011 |
US $126.43 |
||
|
23354
|
23354
23354-42L11 Clutch Assy9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23354-42L11 |
US $110.45 |
||
|
23378
|
23378
23378-1E400 Holder Assy-Brush9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-1E400 |
US $54.43 |
||
| replacement | |||||
|
23378
|
23378
23378-AM60A Holder Assy-Brush9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-AM60A |
from US $54.43 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23378-M8011 |
from US $37.87 |
||
|
23379
|
23379
23379-1P100 Brush-Minus9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23379-1P100 |
US $5.62 |
||
|
23379
|
23379
23380M8311 Brush-Minus9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380-1E400 Brush-Plus9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23380-1E400 |
US $15.98 |
||
|
23380
|
23380
23380M8310 Brush-Plus9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23465
|
23465
23465-80W00 Stopper Set-Pinion9609--01 ~ 9708--01; *RB20E +*RB25DE +*RB25DET; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23465-80W00 |
US $7.49 |
||
|
23480
|
23480
23480-M0110 Screw Set9609--01 ~ 9708--01; RB20E; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
